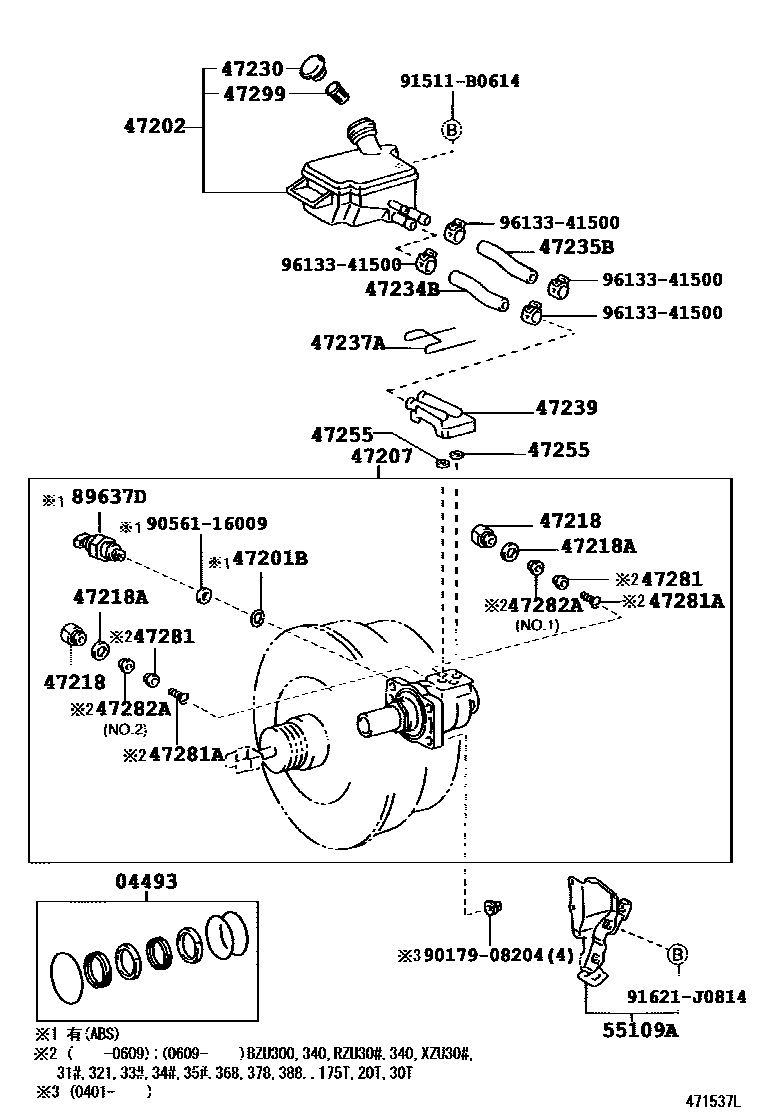

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-36220iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-200009

main04493-36221iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3200009-200206

main04493-36230iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200406

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90301-15014iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200406

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37050iXZU306..T5..DSLL;XZU301..5F..DSLL..IV4;XZU301,306..5F..(CNG,DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM199905-200102

main47220-37051iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F200406-200705

main47220-37060iXZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306,312,322..(DM5,T5)..4FC;XZU301,321..(DM7,T4)..4FC..1NO199905-200206

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-36020iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..175T,20T,295T,30T199905-200009

main47207-36021iBU30#,346,BZU300,340..DCB,SCB;RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..(DCB,SCB)..(20T,295T,30T); BU306,XZU307..VAN200306-200406

main47207-37010iXZU330,340,350..35T,40T199906-200009

main47207-37011iXZU330,340,350..35T,40T200009-200406

main47207-37040iBU306,XZU307..VAN200306-200406

main47207-37041iXZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)200406

main47207-37051iXZU334,344,354..35T,40T200406-200606

main47207-37052iXZU334,344,354..35T,40T200607-200610

main47207-37060iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T200406

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36091×2iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-16013×2iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

47234BTUBE, RESERVOIR, NO.1

main47234-37080iXZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG199905-200406

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37070iXZU306..T5..DSLL;XZU312..SCB..20T;XZU306,322..T5..4FC;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU301,331..5F..DSLL..IV4;XZU311,321..(DM5,DM8)..20T199905-200206

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-36020iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199907-200406

47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR

main47239-37010iXZU321,331,341;XZU301..4FC..1NO;BU306,346,XZU30#,31#,320,322,330,337,340,346,347,35#..MTM199905-199907

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010×2iXZU321,331,341;XZU301..4FC..1NO;BU306,346,XZU30#,31#,320,322,330,337,340,346,347,35#..MTM199905-199907

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-36010×2iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90905-01054×2iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

47282ASEAT, OUTLET CHECK VALVE, NO.1

main47282-36010×2iXZU330,340,350..35T,40T199906-200406

main47282-36020×2iXZU334,344,354..35T,40T200406-200610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

55109ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55109-37010iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

89637DSENSOR, OIL PRESSURE

main89637-51010iXZU306..T5..DSLL;XZU312..SCB..20T;XZU306,322..T5..4FC;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU301,331..5F..DSLL..IV4;XZU311,321..(DM5,DM8)..20T199905-200206

9017908204

main90179-08204

9056116009

main90561-16009

91511B0614

main91511-B0614

91621J0814

main91621-J0814

9613341500

main96133-41500

23 parts on this diagram · 1 diagram in section
