BRAKE PEDAL & BRACKET

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

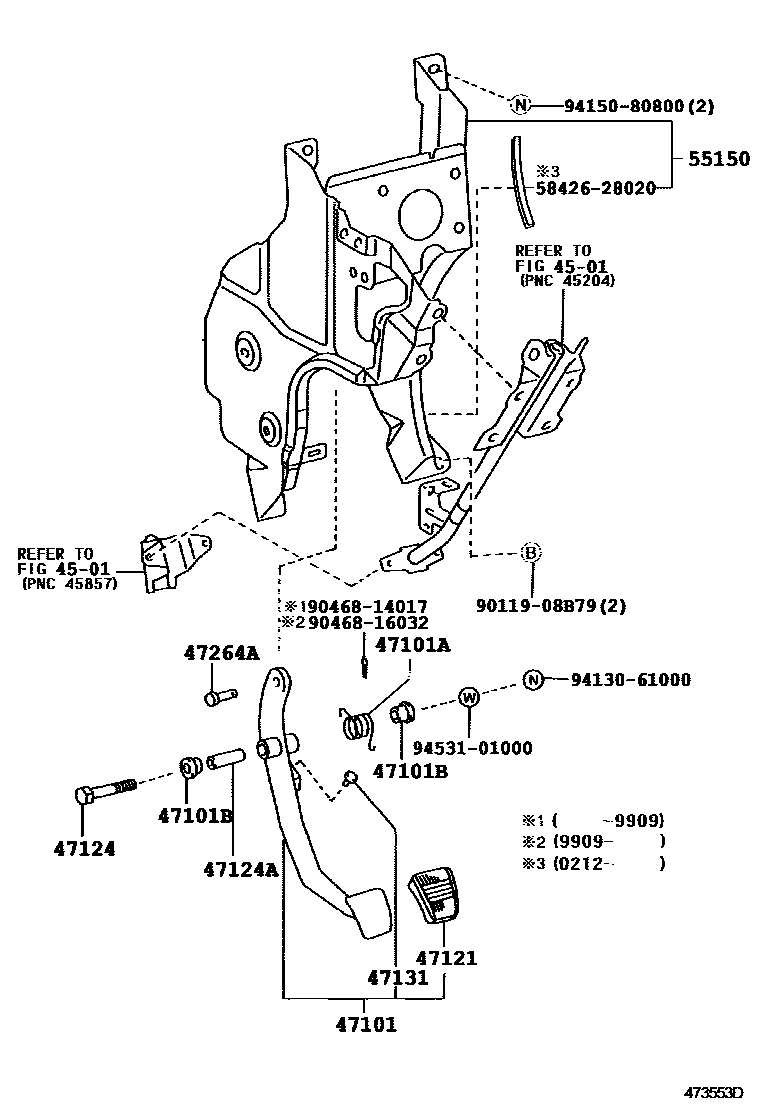

47101PEDAL SUB-ASSY, BRAKE

main47101-37050iXZU306,308..VAN200406-200610

main47101-37080iXZU302..T4..20T..DSL;BU30#,RZU30#,XZU307,351,352..SCB..(DM5,T4)..5F..20T..(DSL,DSLL,LPG)200206-200406

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200406

47121PAD, BRAKE PEDAL

main31321-14020iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

47124SHAFT, BRAKE PEDAL

main91112-61070iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

47264APIN(FOR PUSH ROD)

main90240-10015iBU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382199905-199908

main90240-10037iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199909-200406

55150BRACKET ASSY, PEDAL

main55150-37040iXZU301..4FC..20T..DSL..1NO;XZU301..(DM3,T3,T4,T5)..4FC;XZU302,306,307,312,321,322,331,337,341,347..4FC199905-200104

main55150-37041iXZU301..(T3,T5)..4FC;XZU347..DCB..T4..4FC;XZU301,347..SCB..4FC..20T..DSL;XZU301,306,321,322..(DM7,T4)..4FC..4NO;RZU301,XZU302,307,331,337,341,352..4FC200104-200401

main55150-37042iRZU301,XZU301,304,306,308,33#,341,346,348,351..(DCB,SCB)..ATM200406

main55150-37070iXZU306..T5..DSLL;XZU301..5F..DSLL..IV4;XZU301,306..5F..(DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM199905-200009

main55150-37071iXZU306..T5..DSLL;XZU301..5F..DSLL..IV4;XZU301,306..5F..(CNG,DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM200009-200104

main55150-37072iXZU306..T5..DSLL;XZU301..5F..DSLL..IV4;XZU301,306..5F..(CNG,DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM200104-200107

main55150-37073iXZU304,305,344200310-200401

main55150-37074iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..5F200406

main55150-37100iXZU302..4FC..WT..4NO200206-200401

main55150-37101iXZU301..6FC..20T..4NO; XZU306,308..03S..ATM200406-200610

main55150-37110iBU306,XZU307..VAN..5F200306-200401

main55150-37111iXZU306,308..VAN..5F200406-200610

5842628020NUT, BATTERY SERVICE HOLE COVER

main58426-28020

9011908B79

main90119-08B79

9046814017

main90468-14017

9046816032

main90468-16032

9413061000

main94130-61000

9415080800

main94150-80800

9453101000

main94531-01000

17 parts on this diagram · 1 diagram in section
