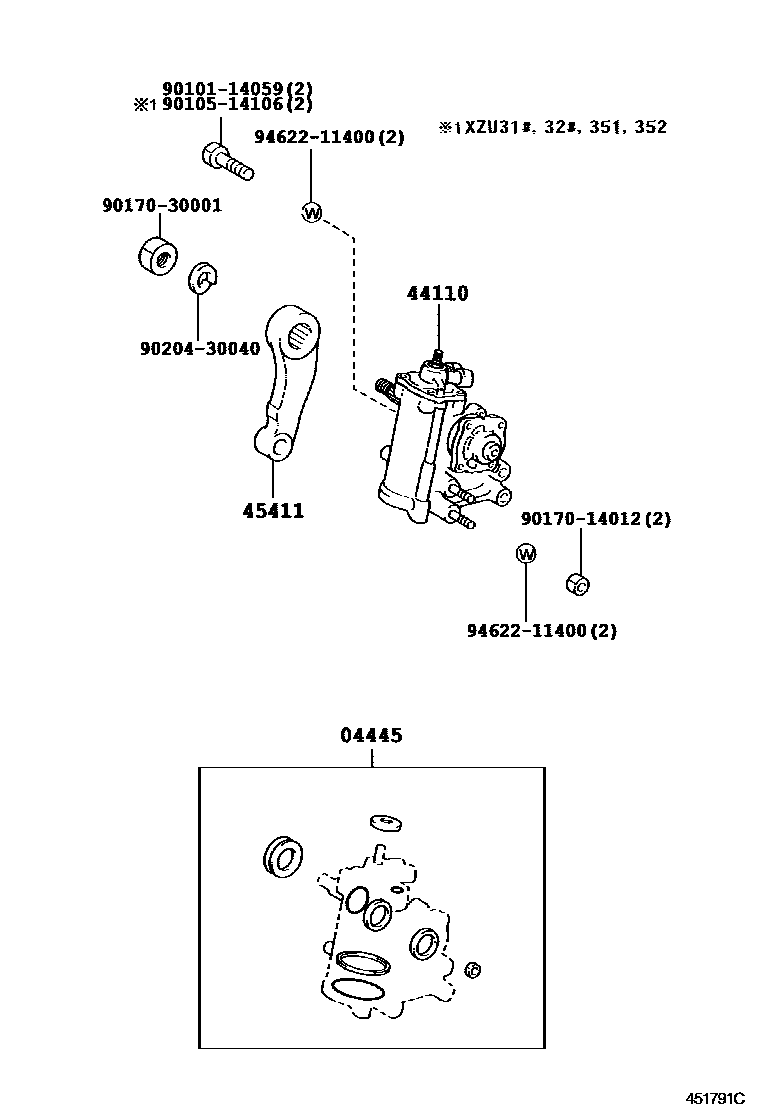

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-37040iXZU304,305,344200310-200406

44110GEAR ASSY, POWER STEERING

main44110-37110iXZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,330,340,341,342,350199905-200406

main44110-37120iXZU31#,32#,351,352199905-200406

main44110-37152iXZU362,37#,382199907-200406

45411ARM, PITMAN

main45411-37130iBZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T200406

main45411-37140iXZU330,340,350..35T,40T199906-200306

main45411-37150iXZU362,37#,382199907-200406

9010114059

main90101-14059

9010514106

main90105-14106

9017014012

main90170-14012

9017030001

main90170-30001

9020430040

main90204-30040

9462211400

main94622-11400

9 parts on this diagram · 15 diagrams in section
