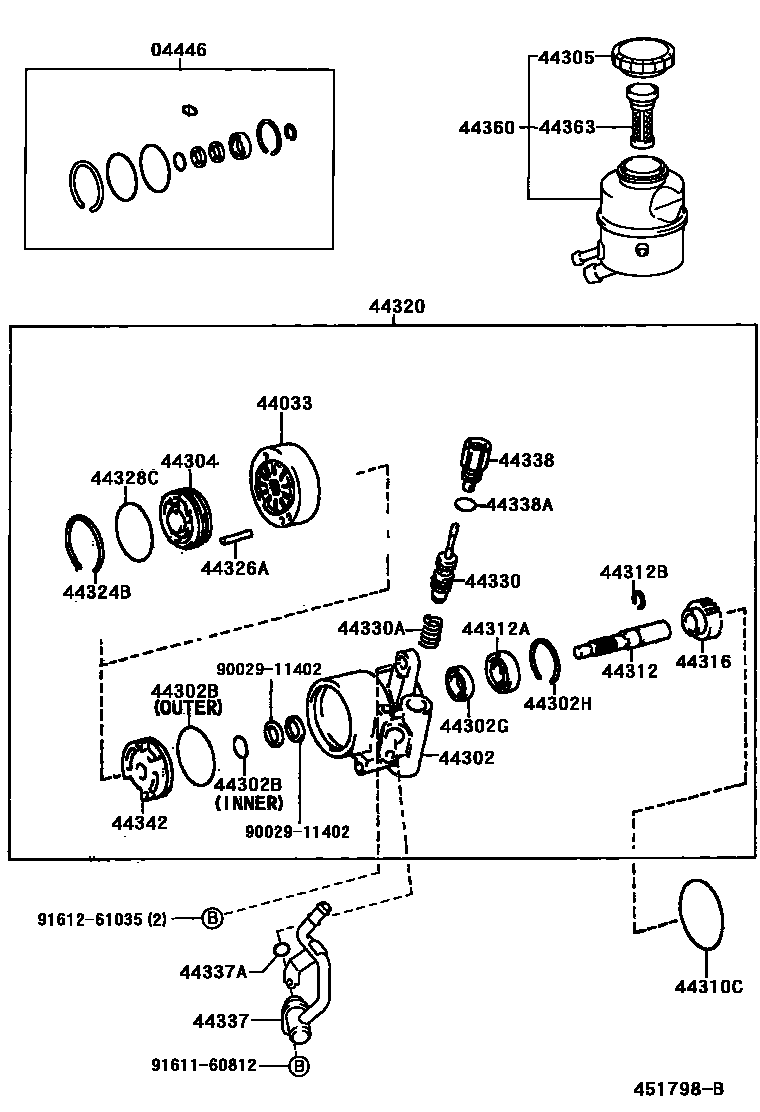

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

04446GASKET KIT, POWER STEERING PUMP

main04446-36081iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main04446-37010iXZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

main04446-60100iBU30#,346199905-200406

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36060iBZU300,340,RZU30#,340,XZU301,302,341,342..CNG,EFI,LPG200005-200406

main44033-60010iBU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36170iRZU30#,340200005-200406

main44302-36230iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main44302-36290iBU30#,346199905-200406

main44302-37060iXZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iBZU300,340,RZU30#,340,XZU301,302,341,342..CNG,EFI,LPG200005-200406

main90029-20056iBU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

main90029-20057iBU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21018iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90029-52010iXZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

main90029-52011iBU30#,346199905-200406

main96151-04000iBZU300,340,RZU30#,340,XZU301,302,341,342..CNG,EFI,LPG200005-200406

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36170iRZU30#,340200005-200406

main44304-36230iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main44304-37060iXZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

main44304-60040iBU30#,346199905-200406

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-12030iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

44310CRING, O(FOR VANE PUMP)

main90301-60002iBU30#,346,BZU300,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

44312SHAFT, VANE PUMP

main44312-36100iRZU30#,340200005-200406

main44312-36110iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main44312-60030iBU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iBU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG199905-200406

main90029-36004iRZU30#,340200005-200406

main90029-36010iXZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

44316GEAR, VANE PUMP

main44316-36020iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main44316-37010iXZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

main44316-37020iBU30#,346199905-200406

44320PUMP ASSY, VANE

main44310-37060iXZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(20T,295T,30T)..(DSL,DSLL)199905-200406

main44310-37090iXZU330,340,350..35T,40T199906-200406

main44310-37100iXZU306,307,337,346,347199905-200406

main44310-37110iBU301199907-200406

main44310-37120iBU306,346199905-200406

main44310-37140iBZU300,340200406

main44310-37170iXZU304,305,344200310-200406

main44310-37180iXZU308,338,348,368,378,388200406-200610

main44310-37190iXZU334,344,354..35T,40T200406-200610

main44310-37200iXZU301,311,331,341,351200406-200610

main44310-37210iXZU306,336,346200406-200610

main44320-37030iRZU30#,340200406

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90029-52010iBU30#,346199905-200406

main90029-52012iXZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iBZU300,340,RZU30#,340,XZU301,302,341,342..CNG,EFI,LPG200005-200406

main90029-14205×2iBU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

44328CRING, O(FOR PUMP HOUSING END)

main90029-20058iBU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

main96711-19020iBZU300,340,RZU30#,340,XZU301,302,341,342..CNG,EFI,LPG200005-200406

44330VALVE ASSY, FLOW CONTROL

main40410-37060iBU301,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(175T,20T,295T,30T)..(DSL,DSLL)199905-200406

main40410-37090iXZU330,340,350..35T,40T199906-200406

main40410-37100iBU306,346,XZU306,307,337,346,347199905-200406

main40420-37060iBU301,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(175T,20T,295T,30T)..(DSL,DSLL)199905-200406

main40420-37090iXZU330,340,350..35T,40T199906-200406

main40420-37100iBU306,346,XZU306,307,337,346,347199905-200406

main40430-37060iBU301,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(175T,20T,295T,30T)..(DSL,DSLL)199905-200406

main40430-37090iXZU330,340,350..35T,40T199906-200406

main40430-37100iBU306,346,XZU306,307,337,346,347199905-200406

main44330-25010iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main44330-25020iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main44330-25030iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main44330-36080iRZU30#,340200005-200406

main44330-36090iRZU30#,340200005-200406

main44330-36100iRZU30#,340200005-200406

main44330-37060iBU301,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(175T,20T,295T,30T)..(DSL,DSLL)199905-200406

main44330-37090iXZU330,340,350..35T,40T199906-200406

main44330-37100iBU306,346,XZU306,307,337,346,347199905-200406

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iBZU300,340,RZU30#,340,XZU301,302,341,342..CNG,EFI,LPG200005-200406

main90029-60013iBU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

44337UNION, POWER STEERING SUCTION PORT

main44337-37020iRZU30#,340200005-200406

main44337-37060iBU30#,346199905-200406

main44337-37070iBZU300,340200406

main44337-37080iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

main44337-37090iXZU301,331..IV4199908-200406

main44337-37100iXZU301..IV6,IV7199905-200406

main44337-37110iXZU350199906-200406

main44337-37120iXZU362,37#,382199907-200406

main44337-37260iXZU304,305,344200310-200406

main44337-37270iXZU321200406-200610

main44337-37281iXZU301,306,311,331,336,341,346,351200406-200610

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main96711-19016iBU30#,346199905-200406

44338UNION, PRESSURE PORT

main44338-36010iBU30#,346199905-200406

44338ARING, O(FOR PRESSURE PORT UNION)

main96711-19016iBU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

44342PLATE, VANE PUMP SIDE, REAR

main44342-36060iBZU300,340,RZU30#,340,XZU301,302,341,342..CNG,EFI,LPG200005-200406

main44342-37060iXZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL199905-200406

main44342-60050iBU30#,346199905-200406

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-37050iRZU30#,340200005-200406

main44360-37130iBZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388200406

main44360-37140iXZU362,37#,382199907-200406

44363STRAINER, OIL(FOR VANE PUMP)

main44363-36040iRZU30#,340200406

main44363-37130iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3200210-200406

9002911402

main90029-11402

9161160812

main91611-60812

9161261035

main91612-61035

29 parts on this diagram · 9 diagrams in section
