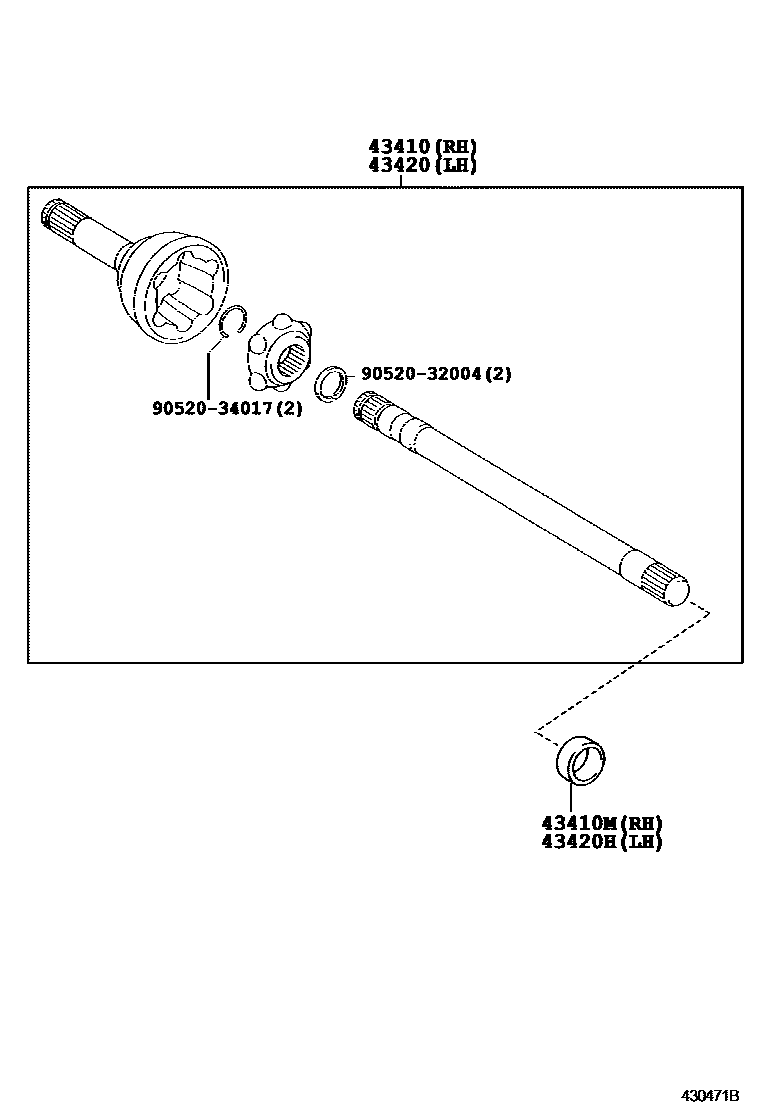

FRONT DRIVE SHAFT

0001 1 0002 1RH 0003 1LH

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-37010iXZU368,378,388200406-200610

main43430-36010iXZU362,37#,382199907-200406

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90033-10006iXZU368,378,388200406-200610

main90311-37001iXZU362,37#,382199907-200406

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-37010iXZU368,378,388200406-200610

main43430-36010iXZU362,37#,382199907-200406

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90033-10006iXZU368,378,388200406-200610

main90311-37001iXZU362,37#,382199907-200406

9052032004

main90520-32004

9052034017

main90520-34017

6 parts on this diagram · 3 diagrams in section
