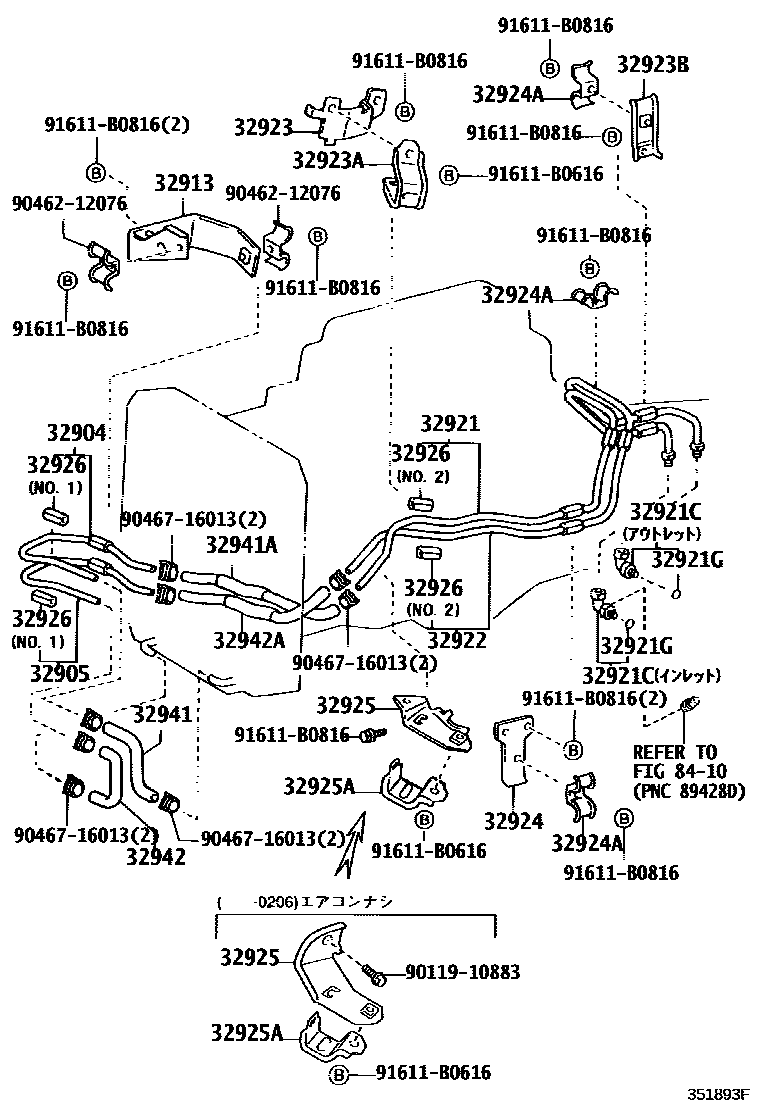

OIL COOLER & TUBE (ATM)

0001 1A443E 0002 1A443E 0003 1A443E 0004 1A443E 0005 1A860 0006 1A443E

32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1

main32904-37130iXZU304,308,334,338,348..4FC200406-200610

main32904-37140iXZU301,306,331,336,341,346,351..6FC200406-200610

main32904-37151iXZU304,334..6FC200406-200509

main32904-37152iXZU304,334..6FC200510-200605

main32904-37153iXZU304,334..6FC200606-200610

main32906-37040iXZU301,302,306,307,312,321,322,331,337,341,347..4FC..(CBU,IV3,IV6)199905-200105

main32906-37041iXZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)200105-200406

main32906-37050iRZU301..4FC200306-200406

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main32905-37130iXZU304,308,334,338,348..4FC200406-200610

main32905-37141iXZU301,306,331,336,341,346,351..6FC200406-200610

main32905-37151iXZU304,334..6FC200406-200605

main32905-37152iXZU304,334..6FC200606-200610

main32907-37030iXZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)199905-200406

32913BRACKET, OIL COOLER

main32913-37040iXZU301..4FC..DSLL..IV3199905-200206

32921TUBE, OIL COOLER INLET, NO.1

main32921-37050iXZU301..4FC..DSLL..IV3199905-200206

main32921-37070iXZU301,331..DSLL..IV4200210-200309

main32921-37100iRZU301..4FC200406

main32921-37130iXZU301,331..4FC..IV4200309-200406

32921CUNION(FOR OIL COOLER TUBE)

main90407-20006iXZU304,308,334,338,348..4FC200406-200610

main90407-20007iRZU301..4FC200306-200406

main90407-20008iRZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC199905-200406

main90407-20009iXZU301,304,306,331,334,336,341,346,351..6FC200406-200610

main90407-20010iXZU301,304,306,331,334,336,341,346,351..6FC200406-200610

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iRZU301,XZU301,304,306,308,33#,341,346,348,351..ATM200406

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-37050iXZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)199905-200406

main32922-37070iXZU301,331..DSLL..IV4200210-200309

main32922-37100iRZU301..4FC200306-200406

main32922-37130iXZU301,331..4FC..IV4200309-200406

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32927-37010iXZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC199905-200406

main32927-37021iXZU304,308,334,338,348..4FC200406-200610

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-25020iXZU301,331..4FC..DSLL199905-200206

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-25010iRZU301,XZU304,308,334,338,348..4FC200406

main32923-37011iXZU301,304,306,331,334,336,341,346,351..6FC200406-200610

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-37010iXZU301,331..4FC..DSLL200210-200406

main32924-37020iRZU301..4FC200406

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12076×3iXZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC199905-200406

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-37030iXZU301,331..4FC..DSLL200210-200406

main32925-37040iXZU301,302,306,307,312,321,322,331,337,341,347..4FC199905-200206

main32925-37080iRZU301..4FC200306-200406

32925ACLAMP, FLEXIBLE HOSE, NO.2

main32929-25020iXZU301,331..4FC..DSLL199905-200206

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010×10iXZU301,331..4FC..DSLL199905-200206

32941HOSE, OIL COOLER INLET, NO.1

main32941-37050iXZU301,302,306,307,312,321,322,331,337,341,347..4FC..(CBU,IV3,IV6)199905-200105

main32941-37051iXZU301..4FC..DSLL..IV3200210-200406

main32941-37070iXZU301,331..4FC..IV4200401-200406

main32941-37090iRZU301..4FC200406-200705

main32941-37110iXZU304,308,334,338,348..4FC200406-200610

main32941-37120iXZU304,334..6FC200406-200610

main32942-37101iXZU301,306,331,336,341,346,351..6FC200406-200610

32941AHOSE, OIL COOLER INLET, NO.2

main32941-37060iXZU301..4FC..DSLL..IV3199905-200206

main32941-37100iRZU301..4FC200406

32942HOSE, OIL COOLER OUTLET, NO.1

main32941-37130iXZU301,306,331,336,341,346,351..6FC200406-200610

main32942-37030iXZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)199905-200406

main32942-37050iXZU301,331..4FC..IV4200401-200406

main32942-37060iRZU301..4FC200406-200705

main32942-37080iXZU304,308,334,338,348..4FC200406-200610

main32942-37090iXZU304,334..6FC200406-200610

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-37040iXZU301..4FC..DSLL..IV3199905-200206

main32942-37070iRZU301..4FC200306-200406

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011910883

main90119-10883

9046212076

main90462-12076

9046716013

main90467-16013

91611B0616

main91611-B0616

91611B0816

main91611-B0816

25 parts on this diagram · 6 diagrams in section
