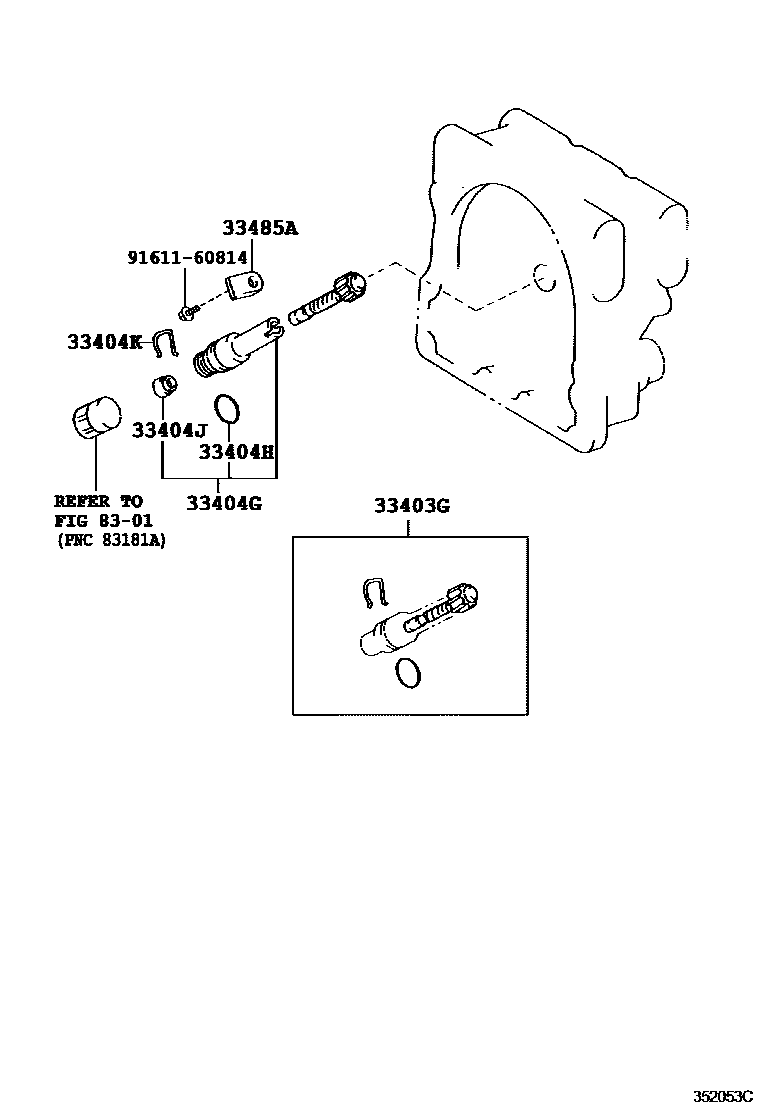

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A443E 0002 1A443E 0003 1A860

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-39156iRZU301..4FC199905-200705

main33482-39166iXZU322..4FC..30T;XZU301,331..4FC..IV4;XZU302,321,341..(DM6,DM7,T3)..4FC199905-200406

main33482-39176iXZU306..T4..4FC..IV3199907-200406

main33482-39186iXZU306..T5..4FC199905-200406

main33482-39295iXZU331,347..SCB..4FC;XZU347..DCB..T4..4FC;XZU301,307,337..4FC..20T;XZU301..SCB..(T3,T5)..4FC;XZU301,302,306..T4..4FC..4NO199905-200406

main33482-39735iXZU302,306,307..SCB..T4..4FC..DSL..IV3200309-200406

main33482-39785iXZU304..4FC..ST200406-200610

main33482-39795iXZU304,308,334,338,348..T4..4FC200406-200610

main33482-39805iXZU308..(03S,T2)..4FC200406-200610

main33482-39875iXZU306,341..(T3,T4,T5)..6FC..20T;XZU301,304,331,334,336,346,351..6FC200408-200610

main33482-39885iXZU306..(03S,T2)..6FC..CBU;XZU301,306..SCB..(T2,T4)..6FC..20T..IV3200408-200610

main33482-39895iXZU304,334,341..6FC..30T200408-200610

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-37010iRZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC199905-200406

main33404-37020iXZU301,304,306,331,334,336,341,346,351..6FC200406-200610

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iRZU301,XZU304,308,334,338,348..4FC199905-200406

main90301-21014iXZU301,304,306,331,334,336,341,346,351..6FC200406-200610

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-10001iRZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC199905-200406

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iRZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC199905-200406

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iRZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC199905-200406

8301

9161160814

main91611-60814

8 parts on this diagram · 3 diagrams in section
