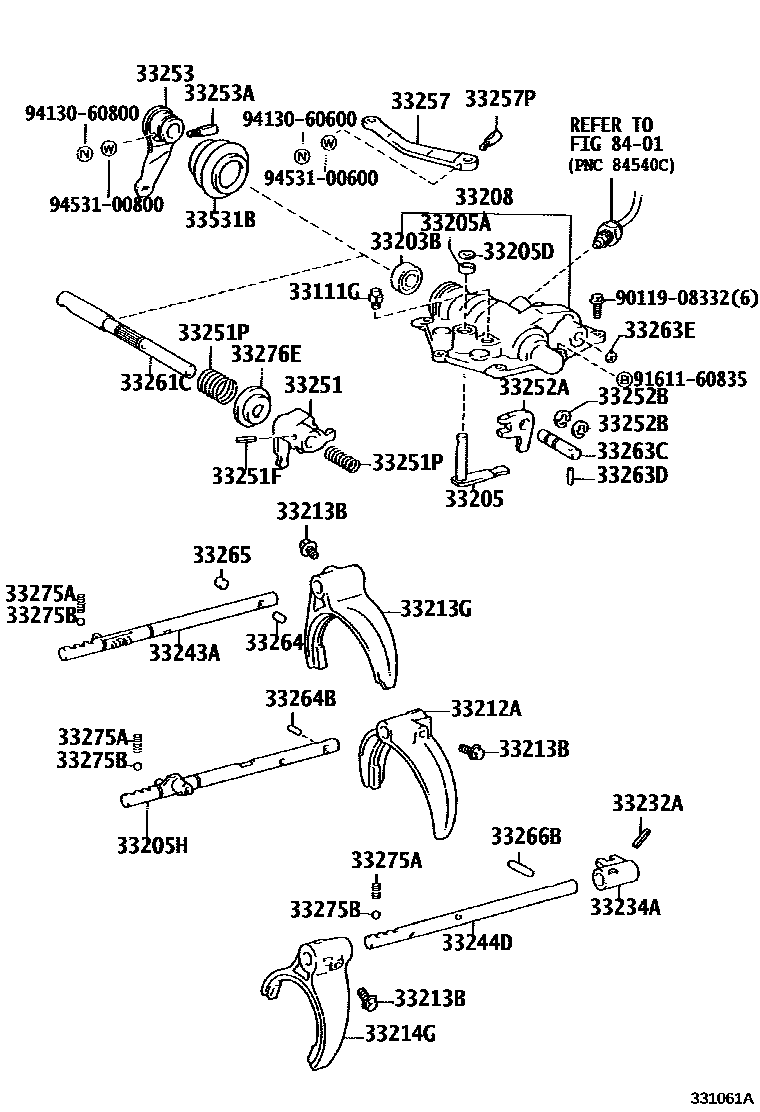

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1M153,M155 0003 1H260,H261 0004 1H350,H351 0007 1MYY5A 0010 1M550

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03090iXZU340,341..6F..DSL200207-200406

mainSU00200274iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-37020iXZU304,305,344200310-200406

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-22009iBZU300,340..T3199905-200405

mainSU00200263iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

mainSU00200355iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-37040iXZU304,305,344200310-200406

main33262-36050iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

main33262-37020iXZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90311-13001iBZU300,340,RZU30#,340,XZU304,308,334,338,348..5F..(CNG,DSL,EFI,LPG)200406

mainSU00200264iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

mainSU00200257iXZU301..5F..DSLL..1NO200210-200406

mainSU00200357iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1

main33205-37030iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33207-36041iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

main33207-36051iXZU362,37#,382199907-200004

mainSU00200261iXZU301..5F..DSLL..1NO200210-200406

mainSU00200262iXZU32#..5F200206-200406

mainSU00200516iXZU368,378,388200406-200610

mainSU00200672iXZU31#,321,35#..5F..4NO200406-200610

33212AFORK, GEAR SHIFT, NO.1

main33210-37010iXZU304,305,344200310-200406

main33212-36031iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

main33212-60050iXZU340,341..6F..DSL200207-200406

mainSU00200240iXZU301..5F..DSLL..1NO200210-200406

33213BBOLT(FOR SHIFT FORK SET)

main90105-07001×3iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

main90105-08211×3iXZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T); XZU341..6F..(DSLL,LPG)199905-200406

33213GFORK, GEAR SHIFT, NO.2

main33213-36041iRZU30#,340..5F200406-200705

main33213-36050iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F199905-200406

main33213-60060iBZU300,340..T3199905-200405

main33220-37010iXZU304,305,344200310-200406

mainSU00200242iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

mainSU00200322iXZU31#,321,35#..5F..4NO200406-200610

mainSU00200517iXZU368,378,388200406-200610

33214GFORK, GEAR SHIFT, NO.3

main33214-36060iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406-200705

main33214-37020iXZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F200406-200705

main33230-60011iXZU340,341..6F..DSL200207-200406

mainSU00200245iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

main90254-05016iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406-200705

mainSU00200127×4iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

33234AHEAD, GEAR SHIFT, NO.3

main33234-36011iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

mainSU00200281iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-37010iRZU30#,340..5F200406-200705

main33243-37020iXZU304,308,334,338,348..5F..DSL200406-200610

main33243-37031iXZU340,341..6F..DSL200207-200406

main33243-37050iXZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F200406-200705

main33244-37040iBZU300,340200406-200705

mainSU00200280iXZU301..5F..DSLL..1NO200210-200406

mainSU00200323iXZU31#,321,35#..5F..4NO200406-200610

mainSU00200519iXZU368,378,388200406-200610

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-37020iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406-200705

main33244-37050iXZU304,305,344200310-200406

main33244-37060iXZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F200512-200705

33251LEVER, SHIFT & SELECT

main33251-36090iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

main33251-37030iXZU340,341..6F..DSL200207-200406

main33251-37040iBZU300,340200406

mainSU00200249iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main90254-05016iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-12185iXZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

main90501-16090iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406-200705

main90501-16186iXZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F200406-200705

main90501-18121iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

mainSU00200268iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

mainSU00200269iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33252ALEVER, SHIFT, INNER NO.2

main33252-36010iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

main33252-37020iBZU300,340..T3199905-200405

mainSU00200241iXZU301..5F..DSLL..1NO200210-200406

33252BRING, E (FOR SHIFT INNER LEVER)

main90523-12001×2iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

33253LEVER, SHIFT OUTER, NO.1

main33253-37060iXZU362,37#,382199907-200406

main33253-37070iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

main33253-37080iBZU300..T3..IV3200306-200406

mainSU00200246iXZU301..5F..DSLL..1NO200210-200406

mainSU00200247iXZU32#..5F200206-200406

mainSU00200528iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-36030iBZU300..T3..IV3200306-200406

33257LEVER, SELECT OUTER

main33257-37060iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

main33257-37080iXZU340,341..6F..DSL200207-200406

main33257-37090iXZU304,305,344200310-200406

mainSU00200253iXZU301..5F..DSLL..1NO200210-200406

mainSU00200254iXZU32#..5F200206-200406

mainSU00200673iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iXZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#..5F200406-200705

mainSU00200271iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33261CSHAFT, SHIFT & SELECT LEVER

main33261-36070iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

33263CSHAFT, SHIFT LEVER, NO.2

main33263-36010iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

main33263-37010iXZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

33263DPIN (FOR SHIFT LEVER SHAFT)

main90250-04060iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

main90250-04110iXZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

33263EPLUG (FOR SHIFT LEVER SHAFT)

main90331-14004iBZU300,340..T3199905-200405

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-10011iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

main90250-10023×2iXZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL); XZU340,341..6F..DSL199905-200206

33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )

main90361-05001iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

main90361-10003iBZU300..T3..IV3200306-200406

33265PIN, SHIFT INTERLOCK, NO.2

main90250-10015iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

main90250-10024iXZU341..6F..(DSLL,LPG)199905-200406

main90250-10035iBZU300,340200406

33266BPIN, SHIFT INTERLOCK, NO.3

main90250-10014iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14155×4iXZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T); XZU341..6F..(DSLL,LPG)199905-200406

main90501-14194×3iXZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F200506-200705

main90501-15044iXZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F200406-200705

main90501-16145×3iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

33275BBALL, SHAFT DETENT

main90360-10003×3iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

33276ESEAT, SELECT SPRING, NO.1

main33276-36011iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

main33276-37050iXZU304,305,344200310-200406

mainSU00200250iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

main33531-36060iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

main33531-37020iBZU300..T3..IV3200306-200406

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908332

main90119-08332

9161160835

main91611-60835

9413060600

main94130-60600

9413060800

main94130-60800

9453100600

main94531-00600

9453100800

main94531-00800

44 parts on this diagram · 5 diagrams in section
