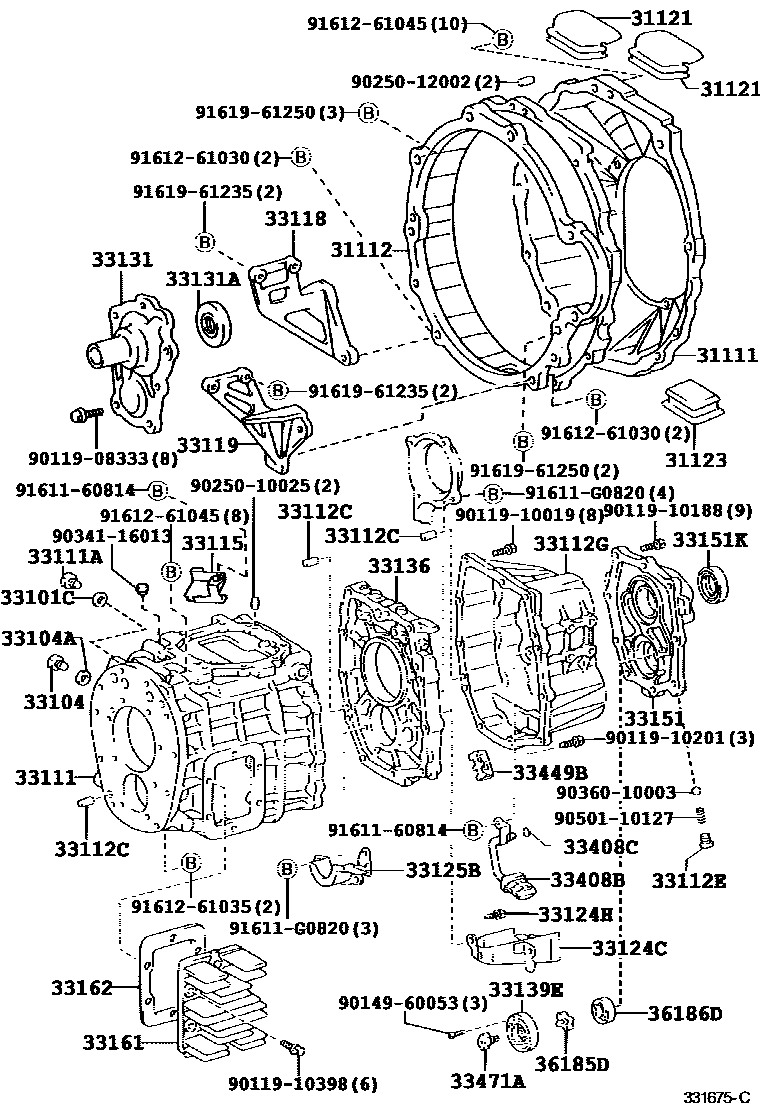

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1H350 0002 1H260,H261,H350,H351 0003 1M155 0004 1M153 0005 1M153 0006 1H260 0007 1MYY5A 0009 1M550 0012 1M155 0013 1H351 0014 1M153 0015 1M153 0016 1MYY5A 0017 1MYY5A

31111HOUSING, CLUTCH

main31111-36310iBU30#,346199905-200406

main31111-36331iRZU300..20T..LPG200005-200406

main31111-37030iXZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL199905-200406

main31111-37050iBZU300,340200406-200705

main31111-37060iXZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

main31111-37070iXZU362,37#,382199907-200406

main31111-37080iXZU347..SCB..5F..IV3;XZU300,306..T4..5F..DSL..IV3199905-200206

main31111-37090iXZU304,308,334,338,348..5F..DSL200406-200610

main31111-37100iXZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F200406-200705

mainSU00200165iXZU32#..5F200206-200307

mainSU00200526iXZU368,378,388200406-200610

mainSU00200667iXZU31#,321,35#..5F..4NO200406-200610

31112HOUSING, CLUTCH, FRONT

main31112-37040iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

31121COVER, CLUTCH HOUSING, NO.1

main31121-28041×2iXZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

31123COVER, CLUTCH HOUSING, NO.2

main31121-36040iBZU300,340,RZU30#,340..5F200406-200705

mainSU00200158iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-36083iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337..5F199905-200111

main33101-36084iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406-200705

main33101-36103iXZU362,37#,382199907-200111

main33101-36104iXZU362,37#,382200111-200406

main33101-36130iXZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F200406-200705

main33101-37030iXZU304,305,344200310-200406

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iBZU300..T3..IV3200306-200406

mainSU00200149iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iBZU300,340..T3199905-200405

main90341-18057iXZU304,305,344200310-200406

mainSU00200164iXZU31#,321,35#..5F..4NO; XZU368,378,388200406-200610

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

mainSU00200149iXZU32#..5F200206-200406

33111CASE, MANUAL TRANSMISSION

main33111-37041iXZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)199905-200406

mainSU00200166iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

mainSU00200367iXZU368,378,388200406-200610

33111APLUG, MANUAL TRANSMISSION CASE

main90341-14008iXZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F200406-200705

main90341-18006iXZU371;RZU300..20T..LPG200206-200406

33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)

main90250-12002×6iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

mainSU00200155×2iXZU301..5F..DSLL..1NO200210-200406

33112EPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-12008iXZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)199905-200406

33112GCASE, TRANSMISSION, REAR

main33112-37010iBZU300,340200406

mainSU00200163iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

33115PLATE, TRANSMISSION OIL FILTER

main33115-37010iXZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

mainSU00200275iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33118PLATE, STIFFENER, RH(MTM)

main33118-36021iBU30#,346199905-200406

main33118-37030iRZU30#,340200406

main33118-37040iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

33119PLATE, STIFFENER, LH(MTM)

main33119-36042iBU30#,346199905-200406

main33119-37020iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main33119-37050iRZU30#,340200005-200406

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-36030iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406-200705

main33124-36040iXZU362,37#,382199907-200406

main33124-37010iXZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)199905-200406

main33124-37020iXZU304,305,344200310-200406

mainSU00200167iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60814×2iBZU300,340..T3199905-200405

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-36020iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406

main33125-37020iXZU301..CNG,LPG;XZU311..30T..4NO;XZU301..T4..IV6..1NO;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU342,351,352..(DM5,T3,T4)..5F;XZU301,302,312..5F..(295T,30T)..DSL..4NO;BZU300,340,XZU302,306,346..(DM6,T4,T5)..5F..(CNG,DSLL,LPG)200005-200406

main33125-60010iXZU341..6F..(DSLL,LPG)199905-200406

33131RETAINER, BEARING, FRONT(MTM)

main33018-36060iRZU30#,340..5F200406-200705

main33018-37010iXZU304,308,334,338,348..5F..DSL200406-200610

main33018-37020iXZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL199905-200406

main33018-37050iXZU304,305,344200310-200406

main33131-37080iXZU340,341..6F..DSL200207-200406

main33131-60070iXZU301,341..30T..LPG;BZU300,340,XZU302,342..(DM6,T4)..(CNG,LPG)200005-200406

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iRZU30#,340..5F200406-200705

main90311-35023iBZU300,340,XZU30#,33#,34#,354..(03S,06S,DM3,DM6,T1,T2,T3,T4,T5)..5F200406-200705

mainSU00200148iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33136PLATE, TRANSMISSION INTERMEDIATE

main33136-37011iBZU300,340200406

33139ECOVER, OIL PUMP

main33139-36010iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33017-36031iRZU30#,340,XZU304,308,334,338,348..5F..(DSL,EFI,LPG)200406-200705

main33017-36050iXZU362,37#,382199907-200406

main33017-37030iXZU304,305,344200310-200406

main33151-37011iBZU300,340200406-200705

mainSU00200168iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33151KSEAL, TYPE T OIL

main90311-48011iBZU300,340..T3199905-200405

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-36010iXZU382..20T; XZU382..30T199905-200106

main33161-36040iXZU340,341..6F..DSL200207-200406

main33161-37040iXZU382200107-200111

main33161-37050iXZU382200106-200107

mainSU00200150iXZU301..5F..DSLL..1NO200210-200406

33162GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER

main33162-36020iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

main33162-37030iXZU382200106-200111

mainSU00200147iXZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

33408BSTRAINER SUB-ASSY, MANUAL TRANSMISSION OIL(FOR REAR CASE)

main33408-37010iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

33408CRING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19009iXZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)199905-200406

33449BMAGNET, TRANSMISSION

main33449-35010iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

main33449-36010iXZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F199905-200406

mainSU00200157iXZU31#,321,35#,368,378,388..5F..(20T,30T)200406-200610

33471ASHAFT, OIL PUMP DRIVE (FOR COUNTER GEAR)

main33471-36010iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

36185DROTOR, TRANSFER OIL PUMP DRIVE(FOR COUNTER GEAR REAR)

main36185-60030iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

36186DROTOR, TRANSFER OIL PUMP DRIVEN (FOR COUNTER GEAR REAR)

main36186-60010iXZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

9011908333

main90119-08333

9011910019

main90119-10019

9011910188

main90119-10188

9011910201

main90119-10201

9011910398

main90119-10398

9014960053

main90149-60053

9025010025

main90250-10025

9025012002

main90250-12002

9034116013

main90341-16013

9036010003

main90360-10003

9050110127

main90501-10127

9161160814

main91611-60814

91611G0820

main91611-G0820

9161261030

main91612-61030

9161261035

main91612-61035

9161261045

main91612-61045

9161961235

main91619-61235

9161961250

main91619-61250

51 parts on this diagram · 14 diagrams in section
