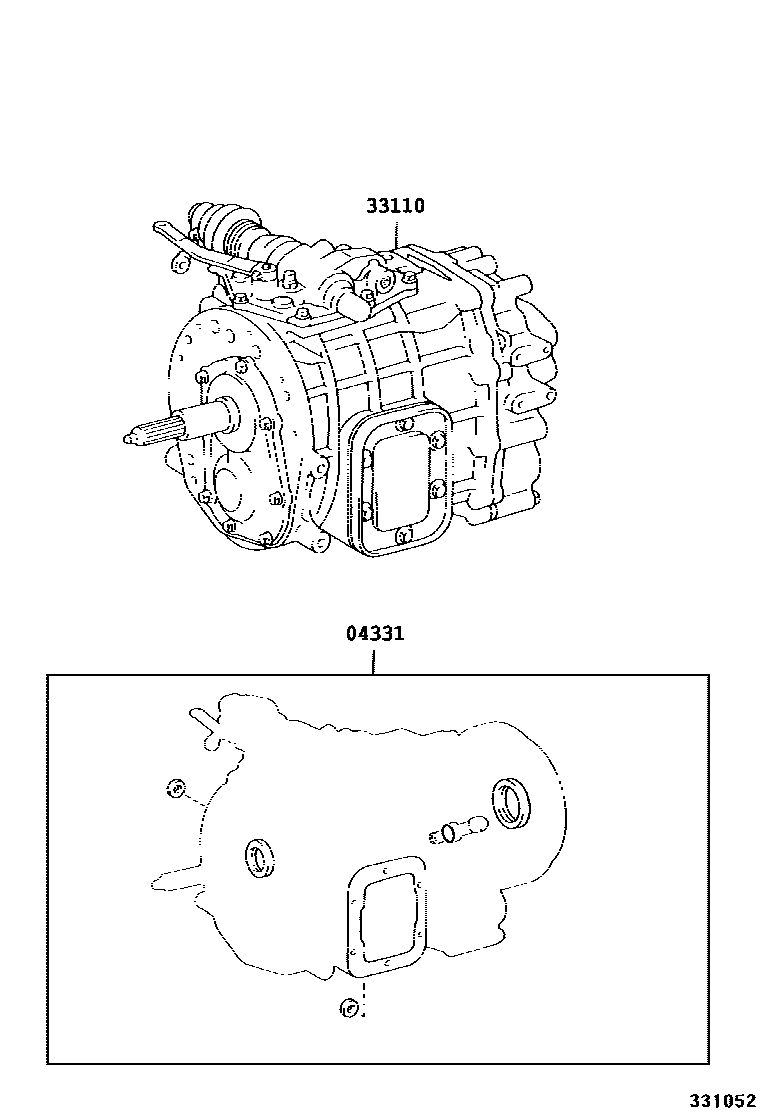

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1M153,M155 0002 1H260,H350,H351 0005 1MYY5A 0008 1M550

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-37030iXZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)199905-200206

main04331-37040iXZU382200106-200111

main04331-37100iXZU304,305,344200401-200406

main04331-37110iXZU304,344..T4..20T..IV3200401-200406

main04331-37121iXZU304..30T..DCRL..IV3..4NO;XZU304,305,334,344..(DM6,T3)..5F..(20T,30T)..(CBU,IV3,IV4)200406

main04331-37310iBZU300,340200406

main04331-37320iRZU30#,340..5F200406

main04331-37330iXZU304,308,334,338,348..5F..DSL200406-200610

33110TRANSMISSION ASSY, MANUAL

main33000-37302iXZU368,378,388200406-200610

main33110-37810iBU30#..SCB..T4; BU30#..T1,T5;BU346..T3,T4199905-200406

main33110-37820iBU346..T2..CBU;BU306..03S,06S,T2,T4;BU301,346..(DM6,T2,T4)..IV3..1NO199905-200406

main33110-37830iXZU302,307,337..(03S,T2,T4,T5)..5F..20T..WT..DSL199905-200406

main33110-37840iXZU302..5F..ST199907-200406

main33110-37850iXZU362,37#,382199907-200004

main33110-37851iXZU362,37#200004-200111

main33110-37852iXZU362,372,382200111-200406

main33110-37880iXZU321..4NO;XZU312..SCB..5F..IV3;XZU300,301,306,322,330,331,341,346,347..(DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6,IV7)199905-200004

main33110-37881iXZU301..5F..20T..DSL..IV3..1NO200011-200206

main33110-37890iXZU301,331..5F..(IV4,IV6);XZU301..5F..20T..(CBU,IV3,IV7);XZU302,31#,32#,35#..(DM2,DM3,DM5,DM6,DM7,DM8,T3,T4)..5F199905-200004

main33110-37891iXZU301,331..5F..IV4;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,DM6)..5F..(DSL,DSLL);XZU302,31#,32#,35#..(DM2,DM3,DM5,DM6,DM7,DM8,T3)..5F200004-200206

main33110-37A40iXZU304..20T..4NO200310-200406

main33110-37A50iXZU304..5F..30T..(CBU,IV3,IV4);XZU334,344..5F..(20T,30T,35T)..(DCRL,DSLL); XZU304..T4..20T..(DCRL,DSLL)..IV3200406-200610

main33110-37A60iXZU304,334..5F..IV4200406-200610

main33110-37B40iXZU311,321,351..5F200406-200610

main33110-37B50iXZU314,354..4NO200406-200610

main33110-37B61iXZU334,338,348..T4..5F; XZU338,348..T2;XZU304,308..5F..DSL200406-200610

main33110-37B71iXZU334,338,348..T4..5F200406-200610

main33110-37B90iXZU301..ST200406-200610

main33110-37C00iXZU301,306,331,336,341,346..5F..WT200406-200610

main33110-37C20iXZU304..IV7200406-200610

main33110-37C30iXZU304..IV7200406-200610

main33110-37C40iRZU301,340..5F..IV3200406-200705

main33110-37C50iRZU300..SCB..T4..20T..IV3200406-200505

main33110-37C60iRZU300..30T..CBU;RZU30#..(T2,T4)..5F..20T; RZU300..LPG;RZU300..T3..IV3; RZU340200406-200705

main33110-37C70iRZU300..30T..CBU;RZU30#..(T2,T4)..5F..20T; RZU300..LPG;RZU300..T3..IV3; RZU340200406-200705

main33110-37C80iRZU300..30T..IV3200406-200705

main33110-37C90iRZU300..30T..IV3200406-200705

main33120-37010iXZU340..T3..30T199906-200004

main33120-37011iXZU340..T3..30T200004-200206

main33120-37020iXZU341..6F;XZU340..T4;XZU340..35T,40T199905-200004

main33120-37021iXZU340..T4;XZU340..35T,40T;XZU341..6F..DSL200004-200206

main33120-37190iRZU300..30T..LPG200011-200406

main33120-37200iRZU300..T3..CBU200005-200206

main33120-37211iXZU306..T4..5F..IV3200005-200206

main33120-37220iXZU302..CNG;XZU301..CNG,LPG200005-200206

main33120-37230iXZU301..CNG200010-200206

main33120-37240iXZU341..LPG200005-200206

main33120-37350iXZU382200106-200111

main33120-37361iXZU302..5F..20T..1NO;XZU301,330,350..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO200206-200406

main33120-37371iXZU32#..5F200206-200406

main33120-37380iXZU340,341..T3..6F..(295T,30T)..DSL200206-200207

main33120-37381iXZU340,341..T3..6F..(295T,30T)..DSL200207-200406

main33120-37390iXZU340,341..T3..6F..(295T,30T)..DSL200206-200207

main33120-37391iXZU340,341..T3..6F..(295T,30T)..DSL200207-200406

main33120-37400iXZU340..35T,40T;XZU340,341..T4..6F200206-200207

main33120-37401iXZU340..35T,40T;XZU340,341..T4..6F200207-200406

main33120-37410iXZU340..35T,40T;XZU340,341..T4..6F200206-200207

main33120-37411iXZU340..35T,40T;XZU340,341..T4..6F200207-200406

main33120-37430iXZU341..LPG200206-200207

main33120-37431iXZU341..LPG200207-200306

main33120-37440iXZU341..LPG200206-200207

main33120-37441iXZU341..LPG200207-200306

main33120-37480iXZU301..(T4,T5)..5F..(295T,30T)..4NO;XZU301,312..(DM3,DM5,T3)..5F..(20T,295T);XZU300,306,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3)200206-200406

main33120-37490iXZU302..DM3,T3;XZU301,331..5F..IV4;XZU302..(T4,T5)..(295T,30T);XZU301,31#..SCB..(DM3,DM5)..5F..DSL200206-200406

main33120-37500iBZU300;BZU340..20T200406-200705

main33120-37510iBZU300,340..T3200206-200405

main33120-37520iRZU301..5F..IV3;RZU300..SCB..T4..20T..EFI..IV3; RZU340..IV3200206-200406

main33120-37530iRZU300..T3;RZU300..20T;RZU340..CBU;RZU300..30T..LPG; RZU340..IV3200206-200406

main33120-37540iRZU300..T4..30T;RZU300..T3..IV3200206-200406

main33120-37550iXZU362,37#,382..T3,T4200206-200406

main33120-37560iRZU340..IV3200206-200406

2 parts on this diagram · 4 diagrams in section
