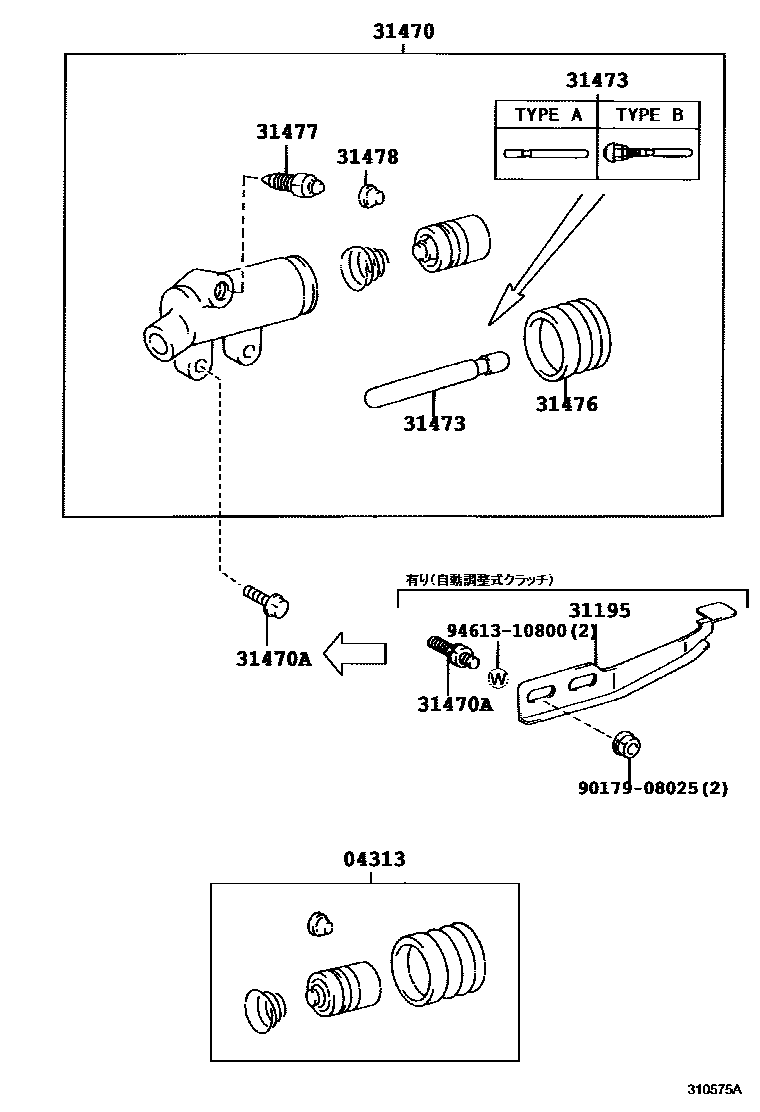

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-30130iRZU300,340200005-200210

main04313-36150iBU30#,346199905-200406

main04313-37030iXZU306..T4..DSLL199905-200205

main04313-37040iXZU300,306..T4..5F..IV3;XZU342,347..SCB..5F..DSL..IV3200205-200206

main04313-53010iRZU30#,340..5F200211-200406

31195PLATE, CLUTCH DISC WEAR INDICATOR

main31195-37040iXZU304,305,344200310-200401

main31195-37050iBU30#,346199905-200406

main31195-37060iRZU30#,340..5F200406

main31195-37070iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main31195-37080iBU301..WT..IV3..4NO200011-200406

main31195-37110iXZU304,305,344200401-200406

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36213iBU30#,346199905-200406

main31470-36310iRZU300,340200005-200211

main31470-36311iRZU30#,340..5F200405-200406

main31470-37040iXZU306..5F..DSL;XZU301..5F..DSL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,306..(DM6,T5)..5F..DSLL;XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM..(DSL,DSLL)199905-200206

main31470-37050iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main31470-37060iXZU300,306..T4..5F..IV3;XZU342,347..SCB..5F..DSL..IV3199905-200206

main31470-37070iBU301..WT..IV3..4NO200011-200406

main31470-37080iXZU304,305,344200310-200406

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248×2iXZU304,305,344200310-200406

main91611-B0825×2iXZU300,306..T4..5F..IV3;XZU342,347..SCB..5F..DSL..IV3199905-200206

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iXZU306..5F..DSL;XZU306..T5..DSLL;XZU301..5F..DSL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM..(DSL,DSLL)199905-200205

main31473-22010iBU30#,346199905-200406

main31473-32010iRZU300,340200005-200211

main31473-35050iRZU300..20T..LPG200211-200406

main31473-37030iBZU300,340,XZU301,302,341,342..CNG,LPG200005-200406

main31473-37040iXZU300,306..T4..5F..IV3;XZU342,347..SCB..5F..DSL..IV3199905-200206

main31473-37050iXZU301..5F..DSLL..1NO;XZU306..5F..DSLL..IV3200210-200406

main31473-60170iBU306..SCB..T4..IV3199905-200406

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXZU301..5F..DSLL..1NO;XZU306..5F..DSLL..IV3200210-200406

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iXZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

9017908025

main90179-08025

9461310800

main94613-10800

10 parts on this diagram · 1 diagram in section
