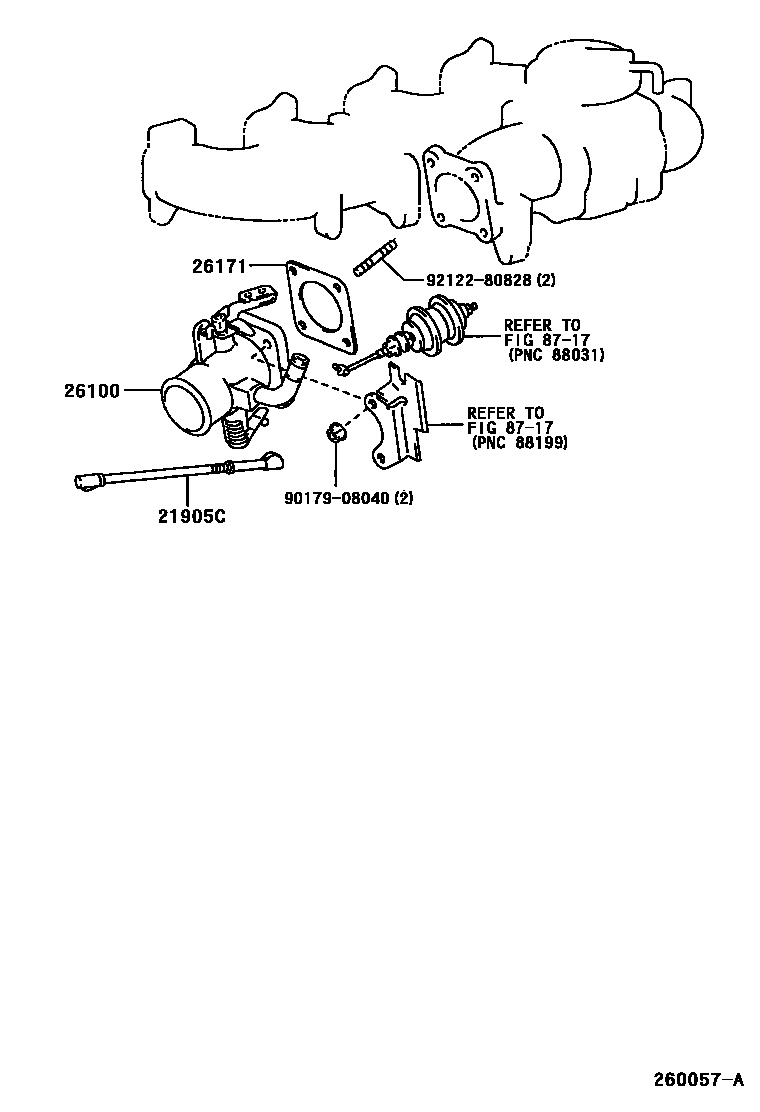

VENTURI

0001 1 0002 1 0003 1

21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)

main21905-58100i4B..BU30#,346199905-200406

26100VENTURI ASSY

main26100-58230i4B..BU30#,346199905-200406

main26100-78061iN04C..XZU304,305,344200310-200406

main26100-78070iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

26171GASKET, VENTURI

main26171-58010i4B..BU30#,346199905-200406

8717HEATING & AIR CONDITIONING - VACUUM PIPING

→ Go to FIG 87-17

9017908040

main90179-08040

9212280828

main92122-80828

6 parts on this diagram · 3 diagrams in section
