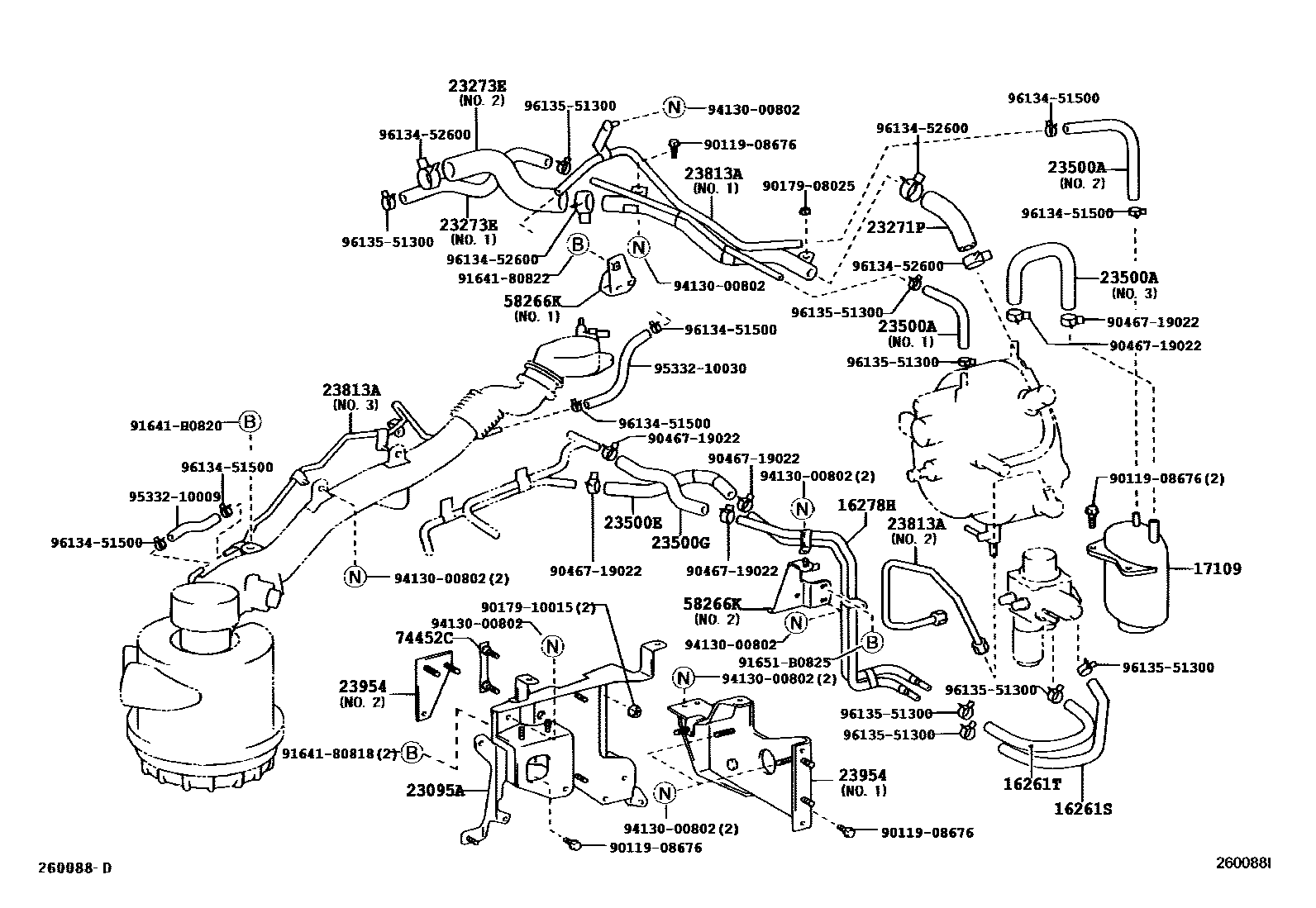

LPG(CARBURETOR) FUEL PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261SHOSE, WATER BY-PASS

main16261-78070i1BZFNE..BZU300,340200010-200406

16261THOSE, WATER BY-PASS

main16261-78060i1BZFNE..BZU300,340200010-200406

16278HPIPE, WATER BY-PASS, NO.2

main16278-78020i15BCNG..XZU301,302,342200010-200406

17109TANK SUB-ASSY, INTAKE AIR SURGE

main17109-58010i3RZFPE..RZU30#200005-200406

23095ABRACKET SUB-ASSY, REGUCATOR, NO.1

main23095-78010i15BCNG..XZU301,302,342200010-200406

23271PHOSE, FUEL, NO.1(FOR REGULATOR TO FUEL PIPE)

main23271-75050i1BZ#..BZU300,340200005-200406

main23271-75050i3RZFPE,3RZFP..RZU30#200005-200406

main23271-75120i3RZFPE,3RZFP..RZU30#200005-200406

23273EHOSE, FUEL, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR)

main23273-75130i3RZFPE..RZU30#200005-200406

main23273-78140i3RZFPE..RZU30#200005-200406

main23273-78150i3RZFPE,3RZFP..RZU30#200005-200406

main23273-78160i1BZ#..BZU300,340200005-200406

sub23273-78161

main23273-78170i1BZ#..BZU300,340200005-200406

23500AHOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main23271-78140i3RZFPE..RZU30#200005-200406

main23273-78180i1BZ#..BZU300,340200005-200406

main23273-78190i1BZ#..BZU300,340200005-200406

23500EHOSE, WATER(FOR LPG REGULATOR INLET)

main16261-75070i3RZFPE,3RZFP..RZU30#200005-200406

main16267-78010i1BZFPE..BZU300,340200005-200406

main16281-78010i1BZFPE..BZU300,340200005-200406

main16281-78010i15BLPG..XZU302,342200108-200306

23500GHOSE, WATER(FOR LPG REGULATOR OUTLET)

main16261-78010i3RZFPE..RZU30#200005-200705

main16261-78020i1BZFNE..BZU300,340200005-200705

main16261-78020i15BCNG..XZU301,302,342200010-200306

main16264-78010i1BZFPE..BZU300,340200005-200705

sub16264-78011

23813APIPE, LPG FUEL

main23801-75090i3RZFPE..RZU30#200005-200406

main23801-78010i1BZFNE..BZU300,340200010-200406

main23813-58010i3RZFPE,3RZFP..RZU30#200005-200406

main23813-58020i1BZ#..BZU300,340200005-200702

sub23813-58021

main23813-58021i1BZ#..BZU300,340200703

main23813-78010i3RZFPE,3RZFP..RZU30#200005-200406

sub23813-78011

main23813-78011i3RZFPE..RZU30#200406

main23813-78020i15B#..XZU301,302,341,342200005-200406

sub23813-78021

main23813-78021i1BZ#..BZU300,340200406

main23813-78030i3RZFPE..RZU30#200005-200406

main23813-78030i1BZFPE..BZU300,340200005-200406

23954BRACKET, LPG REGULATOR

main23954-78010i1BZ#..BZU300,340200005-200406

main23954-78020i3RZFPE..RZU300200005-200306

sub23954-78021

main23954-78021i3RZFPE,3RZFP..RZU30#200306-200406

main23954-78030i1BZFNE..BZU300,340200005-200406

main23954-78030i15BCNG..XZU301,302,342200010-200406

58266KBRACKET, FUEL TUBE CLAMP

main58266-37210iRZU30#..LPG200005-200406

main58266-37210iXZU301,302,341,342..CNG,LPG200005-200406

main58266-37220iRZU30#..LPG200005-200406

main58266-37220iRZU30#..LPG200005-200406

74452CPLATE, BATTERY SET

main74452-37020iBZU300,340..CNG200010-200406

sub74452-37021

9011908676

main90119-08676

9017908025

main90179-08025

9017910015

main90179-10015

9046719022

main90467-19022

9164180818

main91641-80818

9164180822

main91641-80822

91641H0820

main91641-H0820

91651B0825

main91651-B0825

9413000802

main94130-00802

9533210009

main95332-10009

9533210030

main95332-10030

9613451500

main96134-51500

9613452600

main96134-52600

9613551300

main96135-51300

28 parts on this diagram · 6 diagrams in section
