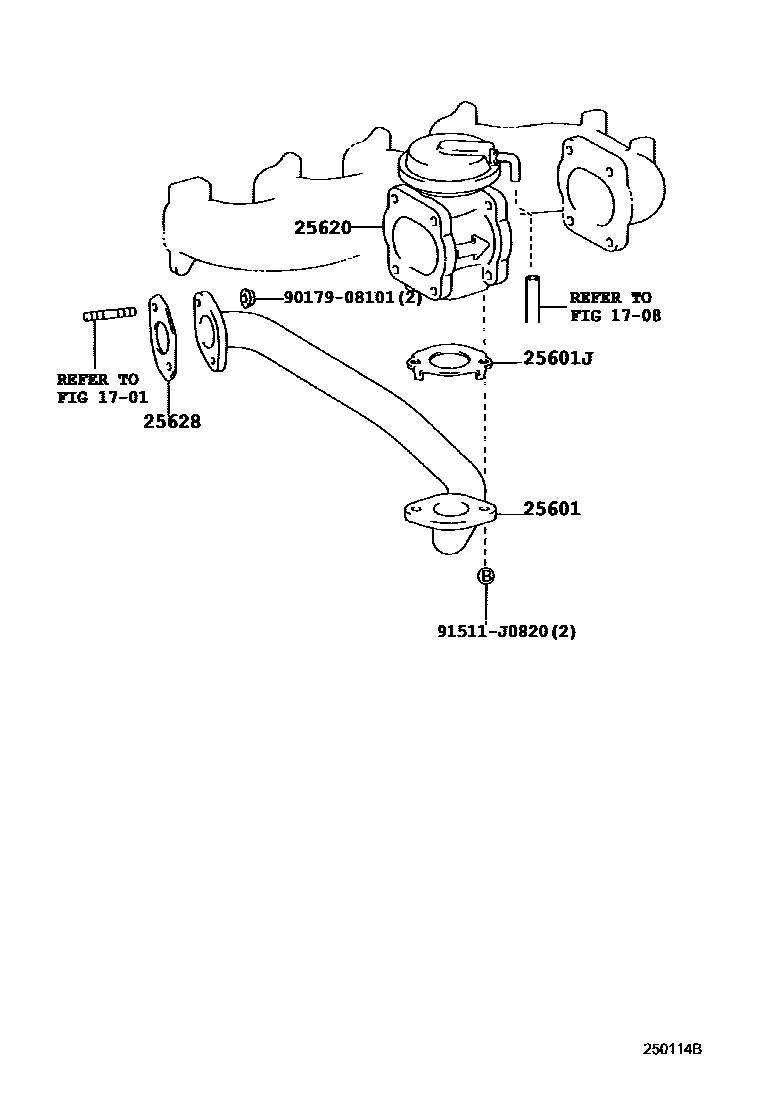

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

25601PIPE SUB-ASSY, EGR, NO.1

main25601-58040i4B..BU30#,346199905-200406

main25601-78010iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199908-200406

main25601-78060iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

main25610-78010iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382199905-199908

25601JGASKET(FOR EGR PIPE, NO.1)

main25634-58010i4B..BU30#,346199905-200406

25620VALVE ASSY, EGR

main25620-58040i4B..BU30#,346199905-200406

main25620-78020iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200406-200508

main25620-78021iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200508-200608

main25620-78022iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200608-200705

main25620-78030iS05D..XZU301,306,311,321,331,336,341,346,351200406-200505

main25620-78040iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL199905-200010

main25620-78041iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL200010-200206

main25620-78042iS05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL200206-200406

main25620-78050iS05D..XZU301,306,311,321,331,336,341,346,351200505-200508

main25620-78051iS05D..XZU301,306,311,321,331,336,341,346,351200508-200608

main25620-78052iS05D..XZU301,306,311,321,331,336,341,346,351200608-200610

main25620-78080iS05D..XZU301,306,331..DSLL200005-200011

main25620-78081iS05D..XZU301,306,331..DSLL200011-200206

25628GASKET, EGR INLET

main17173-78030iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

main25628-58010i4B..BU30#,346199905-200406

9017908101

main90179-08101

91511J0820

main91511-J0820

8 parts on this diagram · 9 diagrams in section
