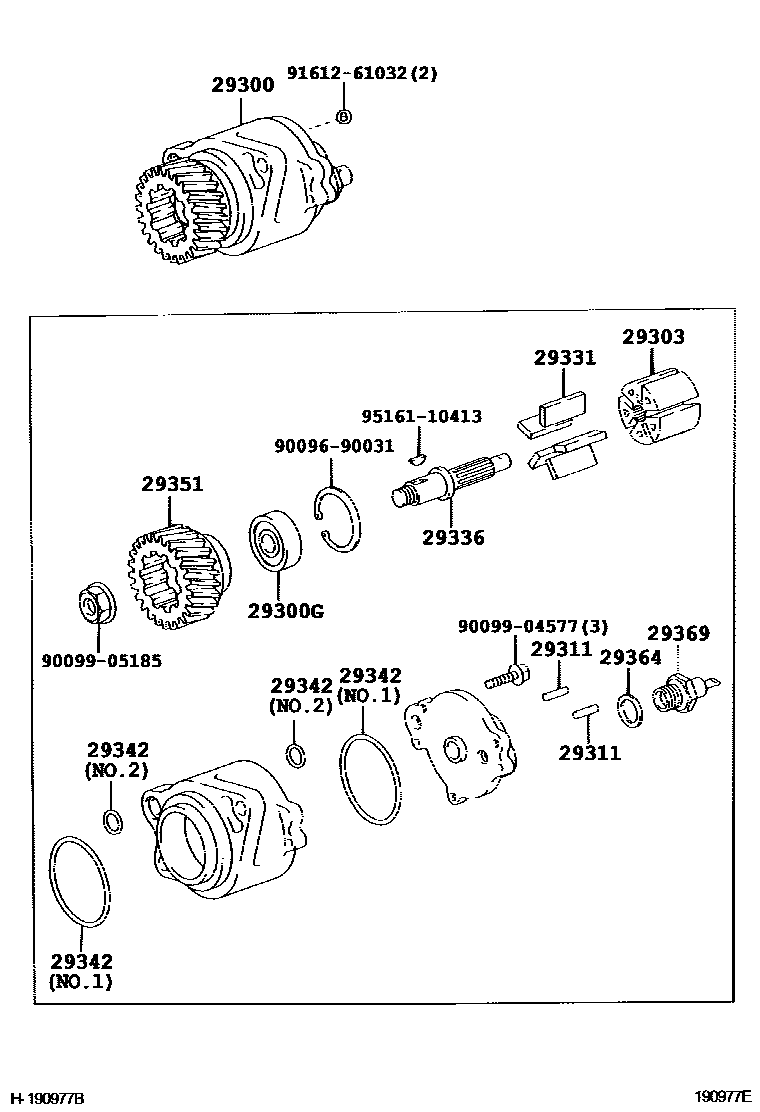

VACUUM PUMP

0001 1 0003 1TYPE A 0004 1TYPE B 0005 1 0006 1

29300PUMP ASSY, VACUUM

main29300-58060i1BZ#..BZU300,340200406-200705

main29300-78040iS05D..XZU331..DSLL200210-200406

main29300-78050iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3199905-200406

main29300-78060iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200406-200705

main29300-78070iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

29300GBEARING, BALL

main90099-10185iS05D,1BZ#..BZU300,340,XZU301,306,311,321,331,336,341,346,351200406-200705

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200406-200705

main29337-27010i15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342199905-200406

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2iS05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,331,341,346,351..CBU,IV3;S05#,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,306,307,312,322,337,341,342,347,352..(CNG,DSL,LPG)..(CBU,IV3)199905-200406

29331BLADE, VACUUM PUMP, A

main29331-27010×5i1BZ#..BZU300,340200406-200705

main29331-67020×5iS05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301,306..DSL..(CBU,IV3);J05C,S05#..XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..CBU,IV3,IV6199905-200406

29336SHAFT, VACUUM PUMP

main29336-58040i15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342199911-200406

main29336-58050iS05D..XZU301,306..(DM6,T3,T4)..DSLL..IV3199905-200206

main29336-58060i4B..BU30#,346199905-199911

29342PACKING, VACUUM PUMP

main29342-17010iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200406-200705

main29342-58010i15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342; S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..20T..DSL..IV3..1NO;S05D..XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);J05C,S05#..XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..CBU,IV3,IV6199905-200406

main29342-64010×2i1BZ#..BZU300,340200406-200705

29351GEAR, VACUUM PUMP

main29351-58050i1BZ#..BZU300,340200406-200705

main29351-89101iJ05C..XZU350199905-200006

main29351-89102iS05C..XZU362,372,382199907-200406

29364WASHER, VACUUM PUMP

main29364-66010i1BZ#..BZU300,340; 4B..BU30#,346200306-200406

29369VALVE SUB-ASSY, CHECK

main29369-64030iS05C..XZU362,372,382;15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342199905-200406

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9161261032

main91612-61032

9516110413

main95161-10413

15 parts on this diagram · 5 diagrams in section
