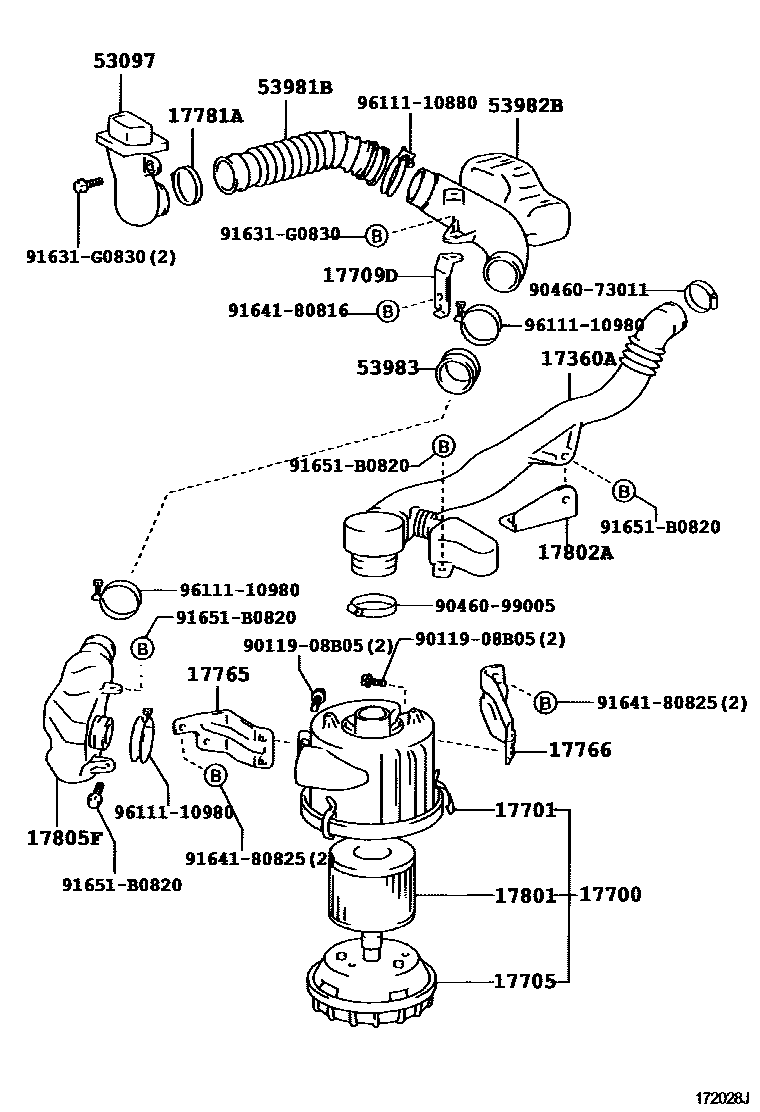

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0014 1 0015 1 0016 1 0017 1

17360ATUBE ASSY, AIR

main17360-58010i4B..BU30#,346199905-200406

main17360-58020i15B#..XZU301,302,341,342200005-200209

main17360-58021i1BZ#..BZU300,340200306-200406

main17360-58030i3RZFE..RZU300,340200005-200206

main17360-58031i3RZFE..RZU300,340200406

main17360-58040i3RZFE..RZU300,340200005-200406

main17360-58050i3RZFPE..RZU30#200005-200406

main17360-58051i3RZFPE..RZU30#200609

main17360-78010iJ05C..XZU300,320,330,340,350199906-200406

main17360-78020iS05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..DSL199905-200206

main17360-78040iS05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL200206-200210

main17360-78050iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

17700CLEANER ASSY, AIR

main17700-78050iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#199905-200004

main17700-78051i4B..BU30#,346200004-200008

main17700-78052i4B..BU30#,346200008-200109

main17700-78053iS05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3200210-200406

main17700-78070iS05#..XZU362,37#,382199907-200004

main17700-78071iS05#..XZU362,37#,382200004-200008

main17700-78072iS05#..XZU362,37#,382200008-200109

main17700-78073iS05#..XZU362,37#,382200109-200406

main17700-78170i1BZFPE..BZU300,340200406-200705

sub17700-78171

main17700-78190iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200406

17701CASE SUB-ASSY, AIR CLEANER

main17701-78021i1BZFNE,4B..BU30#,346,BZU300,340200109-200406

main17701-78031iS05#..XZU362,37#,382200109-200406

main17701-78140i1BZFPE..BZU300,340200306-200406

sub17701-78141

main17701-78150iN04C..XZU304,305,344200310-200406

17705CAP SUB-ASSY, AIR CLEANER

main17705-78010i4B..BU30#,346199905-200109

main17705-78011i1BZFNE..BZU300,340200406

main17705-78030i3RZ#..RZU30#,340200406

main17705-78040iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200406

17709DBRACKET, AIR CLEANER INLET, NO.1

main53772-37010iJ05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#199905-200406

main53772-37030iS05#..XZU37#,382..DCB199908-200406

17765STAY, AIR CLEANER, NO.1

main17706-78010iS05#..XZU37#,382..DCB199908-200406

main17765-78010i3RZFE..RZU300,340200005-200305

main17765-78030iS05C..XZU362,372,382..SCB199907-200406

sub17765-78031

main17765-78050iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200406

17766STAY, AIR CLEANER, NO.2

main17706-78021iS05#..XZU37#,382..DCB199908-200406

main17766-78010i3RZFE..RZU300,340200005-200305

main17766-78030iS05C..XZU362,372,382199907-199908

main17766-78031iS05C..XZU362,372,382..SCB199908-200406

main17766-78050iN04C..XZU304,305,344200310-200406

17781SEAL, AIR CLEANER INLET

main17781-78010×2iS05#..XZU37#,382..DCB199908-200406

main17781-78020×2iS05#..XZU37#,382..DCB199908-200406

17781ACLAMP, HOSE

main17781-78050iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200406

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56050i3RZFPE..RZU300..30T200212-200406

main17801-78010i3RZ#..RZU300,340200005-200008

main17801-78011i15BLPG..XZU301,302,341,342200008-200302

main17801-78040iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200406

17802ABRACKET SUB-ASSY, RESONATOR

main17802-58010i4B..BU301199907-200406

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-48060i15B#..XZU301,302,341,342200005-200306

main17805-75070i3RZFE..RZU300,340200005-200306

main17805-75190i3RZFPE..RZU30#200406

main17805-75210i3RZFE..RZU300,340200306-200406

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-78020i4B..BU30#,346199905-200212

main17805-78021iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200406

53097INLET SUB-ASSY

main53097-37200iXZU372,382..T3..20T;XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,371199905-200406

main53097-37220iXZU362,372,382..SCB199907-200406

sub53097-37320

main53097-37300iXZU30#,31#,321,33#,34#,35#,368,378,388200406

53981BINLET, AIR CLEANER PIPE, NO.1

main53981-37060iRZU30#,340200406

main53981-37070iXZU37#,382..DCB199908-200406

53982BINLET, AIR CLEANER PIPE, NO.2

main53982-37020iBU30#,346199905-200406

main53982-37030iRZU30#,340200406-200705

main53982-37040iXZU300,320,330,340,350199906-200406

main53982-37050iXZU37#,382..DCB199908-200406

main53982-37070iXZU304,305,344200310-200406

main53982-37080iXZU301,306,311,321,331,336,341,346,351200406-200610

main53982-37090iXZU378,388..DCB200406-200610

53983INLET, AIR CLEANER PIPE, NO.3

main53983-37020iXZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#199910-200406

9011908B05

main90119-08B05

9046073011

main90460-73011

9046099005

main90460-99005

91631G0830

main91631-G0830

9164180816

main91641-80816

9164180825

main91641-80825

91651B0820

main91651-B0820

9611110880

main96111-10880

9611110980

main96111-10980

26 parts on this diagram · 16 diagrams in section
