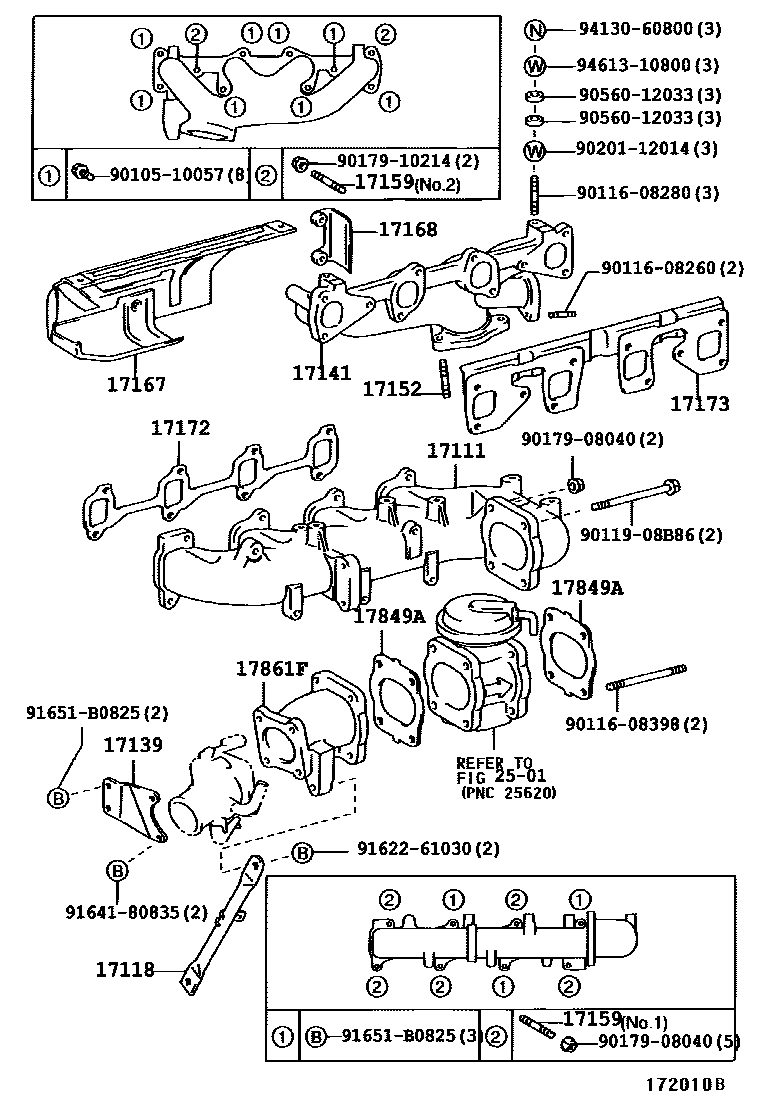

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0013 1 0014 1

17111MANIFOLD, INTAKE

main17101-48010i15B#..XZU301,302,341200005-200108

main17101-48011i1BZ#..BZU300,340200108-200406

main17101-75041i3RZFE..RZU300,340200306-200406

main17101-75050i3RZFPE..RZU30#200005-200406

main17101-75060i3RZFE..RZU300,340200005-200306

main17111-58050i4B..BU30#,346199905-200406

main17111-78020iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#199905-200406

subS1711-13611

main17111-78030iS05#..XZU362,37#,382199907-200406

subS1711-14560

main17111-78050iN04C..XZU304,305,344200310-200705

sub17111-E0210

main17111-78060iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

subS1711-14661

17118STAY, MANIFOLD

main17118-58040i4B..BU30#,346199905-200406

main17118-75030i3RZFPE..RZU30#200005-200406

main17455-78160iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

subS1745-82900

17139STAY, MANIFOLD, NO.2

main17139-58010i4B..BU30#,346199905-200406

17141MANIFOLD, EXHAUST

main17141-58031i1BZ#..BZU300,340200005-200406

main17141-58060i4B..BU30#,346199905-200205

sub17141-58061

main17141-58061i4B..BU30#,346200205-200406

main17141-75061i3RZ#..RZU30#,340200005-200406

main17141-78030iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-200309

sub17141-78031

main17141-78031iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382200309-200406

subS1714-15783

main17141-78081iN04C..XZU304,344..(T3,T4,T5)..DCRL200310-200610

main17141-78090iN04C..XZU304,305..20T..DCRL..1NO200310-200705

sub17141-E0370

main17141-78100iN04C..XZU304,314,334,344,354,378..DSLL200310-200610

subS1714-16411

main17141-78111iN04C..XZU304,308,334,338,348,368,378,388..DSL200406-200610

subS1714-16441

main17141-78130iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

subS1714-16461

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90031-16063iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200404

main90031-16091iJ05C..XZU300,330,340,350200310-200406

main90116-10149i3RZ#..RZU30#,340200005-200406

main90126-10006i15B#..XZU301,302,341,342199905-200406

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90031-16054iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

main90031-16055iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

main90031-16069iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

main90031-16069iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200310-200705

main90031-16069iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

main90031-16085iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200310-200705

main90031-16099iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

main90116-08352i4B..BU30#,346199905-200406

main90116-10063i4B..BU30#,346199905-200406

main90116-10163i3RZ#..RZU30#,340200005-200406

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-58040i1BZ#..BZU300,340200005-200406

main17167-58070i4B..BU30#,346199905-200406

main17167-75050i3RZFPE..RZU30#200005-200406

main17167-75140i3RZFE..RZU300,340200406

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-58050i1BZ#..BZU300,340200005-200406

main17168-58060i4B..BU30#,346199905-200406

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-58010i1BZ#..BZU300,340200005-200406

main17171-58020i4B..BU30#,346199905-200406

main17172-78020iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

subS1717-11670

main17172-89102iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

subS1717-12000

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-56040i4B..BU30#,346199905-200406

main17173-58030i15B#..XZU301,302,341,342200005-200406

main17173-75020i3RZ#..RZU30#,340200005-200406

main17173-78040iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200310-200705

subS1710-41880

main17173-89102iS05D..XZU301,306,311,321,331,336,341,346,351199905-200610

subS1710-41610

17849AGASKET, INTAKE AIR CONNECTOR

main17849-58020i4B..BU30#,346199905-200406

17861FCONNECTOR, INTAKE AIR

main17861-58050i4B..BU30#,346199905-200406

2501

9010510057

main90105-10057

9011608260

main90116-08260

9011608280

main90116-08280

9011608398

main90116-08398

9011908B86

main90119-08B86

9017908040

main90179-08040

9017910214

main90179-10214

9020112014

main90201-12014

9056012033

main90560-12033

9162261030

main91622-61030

9164180835

main91641-80835

91651B0825

main91651-B0825

9413060800

main94130-60800

9461310800

main94613-10800

27 parts on this diagram · 12 diagrams in section
