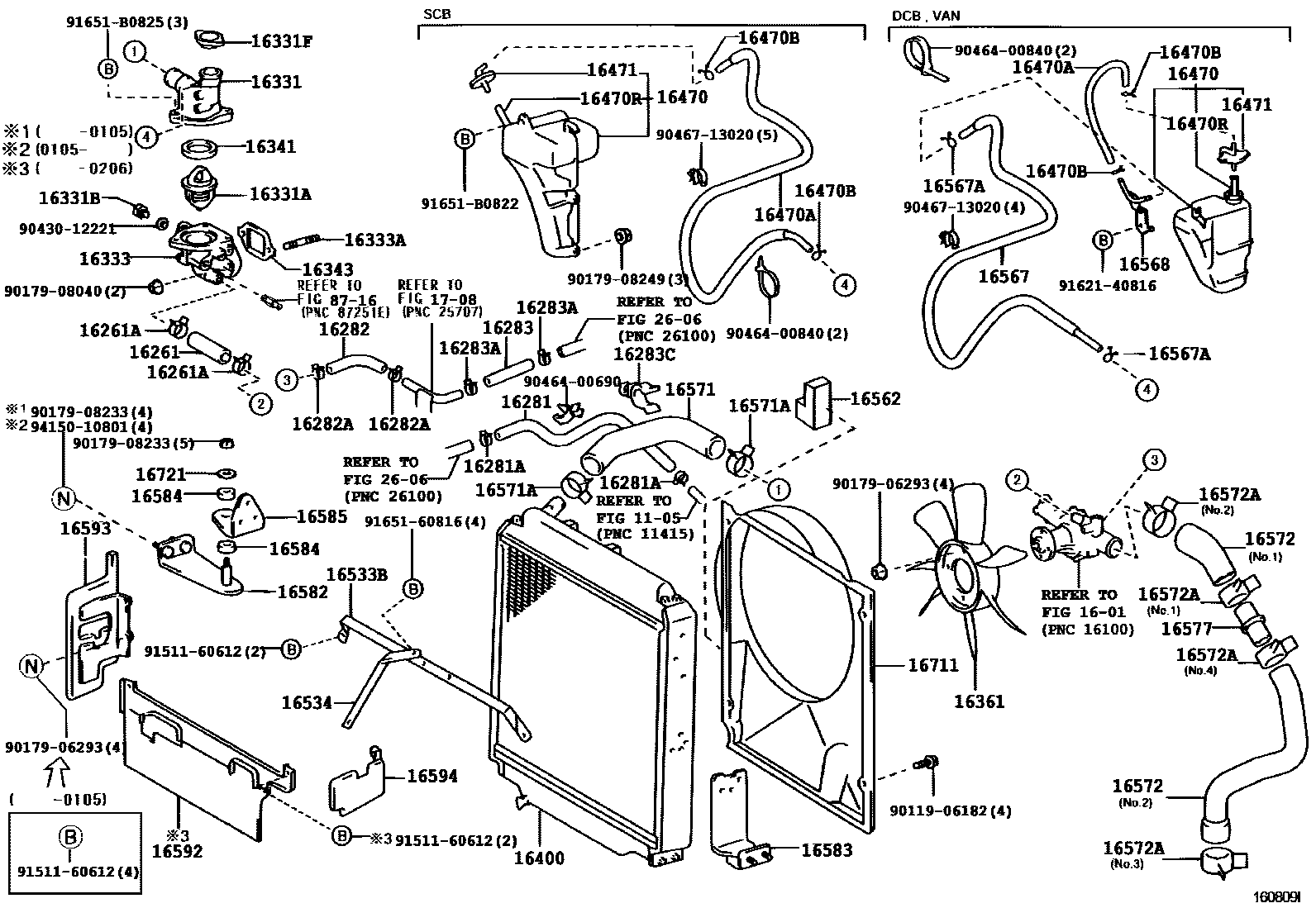

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1

1105

1601

16261HOSE, WATER BY-PASS

main16261-56012i1BZ#..BZU300,340200005-200406

main16261-58020i4B..BU30#,346199905-200406

main16261-75040i3RZFE..RZU300,340200005-200306

main16261-75090i3RZFPE..RZU30#200005-200406

main16261-75100i3RZFE..RZU300,340200306-200406

main16261-78170iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200608

subSZ920-34333

main90034-45092iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200310-200608

sub16261-78170

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90034-67027iN04C..XZU304,305,344200310-200406

main90467-21010i3RZFPE..RZU30#200005-200406

main90467-28005i15B#..XZU301,302,341,342199905-200406

main96135-51300i3RZFE..RZU300,340200005-200406

16281HOSE, WATER BY-PASS, NO.4

main16281-58070i4B..BU30#,346199905-200406

main16281-75050i3RZFPE..RZU30#200005-200406

16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

main90467-15022i4B..BU30#,346199905-200406

main96135-51300i3RZFPE..RZU30#200005-200406

16282HOSE, WATER BY-PASS, NO.5

main16282-58030i4B..BU30#,346199905-200406

16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

main90467-15022i4B..BU30#,346199905-200406

16283HOSE, WATER BY-PASS, NO.6

main16283-58010i4B..BU30#,346199905-200406

sub16284-58040

16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

main90467-15022i4B..BU30#,346199905-200406

16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)

main90464-00769i4B..BU30#,346199905-200406

16331OUTLET, WATER

main16331-0W010i3RZ#..RZU30#,340200005-200406

main16331-58080i1BZ#..BZU300,340199905-200406

16331ATHERMOSTAT

main90038-33010iS05D..XZU301,306,311,321,331,336,341,346,351199905-200610

sub90038-33017

main90038-33011iS05D..XZU301,331,371..IV4199908-200406

subSZ910-46037

main90038-33013iN04C..XZU304,305,344200310-200404

sub90038-33015

main90038-33015iN04C..XZU304,305,344200404-200705

subSZ910-46039

main90916-03102i15B#..XZU301,302,341,342199905-200406

main90916-03120i3RZ#..RZU30#,340200005-200406

16331BPLUG(FOR WATER OUTLET)

main90341-12006i1BZ#..BZU300,340199907-200406

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-54750i15B#..XZU301,302,341,342200005-200406

main16401-67150i3RZ#..RZU30#,340199905-200406

main16401-78100iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-200009

main16401-78110iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382200010-200406

sub16401-78111

main16545-78010iN04C..XZU304,305,344200310-200705

sub16545-78011

16333HOUSING, WATER OUTLET

main16303-78020iN04C..XZU304,305,344200310-200705

sub16303-78021

main16303-78050iN04C..XZU304,308,334,338,348,368,378,388..DSL200406-200610

sub16303-78051

main16303-78062iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

sub16303-E0100

main16333-58080i1BZ#..BZU300,340199905-200406

main16333-78020iJ05C..XZU300,320,330,340,350199906-200006

sub16333-78021

main16333-78021iJ05C..XZU300,320,330,340,350200006-200406

subS1632-13212

main16333-78030iS05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382199905-200006

sub16333-78031

main16333-78031iS05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382200006-200406

sub16333-78032

16333ABOLT, STUD(FOR WATER OUTLET HOUSING)

main92112-60832i1BZ#,4B..BU30#,346,BZU300,340199905-200406

16341GASKET, WATER OUTLET

main16341-56030i15B#..XZU301,302,341,342199905-200406

main16341-75020i3RZ#..RZU30#,340200005-200406

16343GASKET, WATER OUTLET HOUSING

main16343-56023i15B#..XZU301,302,341,342199905-200406

16361FAN

main16361-41070i3RZ#..RZU30#,340200005-200406

sub16361-41071

main16361-56070i1BZ#..BZU300,340200005-200406

main16361-58030i4B..BU30#,346199905-200406

main16361-78030iS05C..XZU307,312,347..DCB,VAN;J05C,S05D..XZU300,301,306,311,320,321,330,331,340,341,346,350,351199905-200610

main16361-78040iS05#..XZU362,37#,382199907-200406

main16361-78050iS05C..XZU302,307,312,322,337,342,347,352..SCB199905-200610

main16361-78100iN04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL200310-200406

16400RADIATOR ASSY

main16400-58640i4B..BU30#,346199905-200105

sub16400-58641

sub90179-06293

main16400-58641i4B..BU30#,346200105-200206

sub16400-58720

main16400-58700i15B#..XZU301,302,341200005-200105

sub16400-58701

sub90179-06293

main16400-58701i15B#..XZU301,302,341,342200105-200206

main16400-58720i4B..BU30#,346200206-200406

main16400-58740i15B#..XZU301,302,341,342200206-200306

main16400-58740i1BZ#..BZU300,340200306-200406

main16400-75380i3RZ#..RZU300,340200005-200105

sub16400-75381

sub90179-06293

main16400-75381i3RZ#..RZU300,340200105-200108

sub16400-75382

main16400-75382i3RZ#..RZU300,340200108-200206

main16400-75430i3RZ#..RZU30#,340..5F200206-200606

sub16400-75431

main16400-75431i3RZ#..RZU30#,340..5F200607

main16400-75460i3RZFPE..RZU301..4FC200306-200406

main16400-78040iS05D..XZU371199908-200108

sub16400-78041

sub90179-06293

main16400-78041iS05D..XZU371200108-200206

main16400-78050iS05D..XZU301,331..5F..IV4199908-200105

sub16400-78051

sub90179-06293

main16400-78051iS05D..XZU301,331..5F..IV4200105-200206

main16400-78060iS05D..XZU301,331..4FC..IV4199908-200105

sub16400-78061

sub90179-06293

main16400-78061iS05D..XZU301,331..4FC..IV4200105-200206

main16400-78070iS05C..XZU362,372,382199907-200108

sub16400-78071

sub90179-06293

main16400-78071iS05C..XZU362,372,382200108-200206

sub16400-78220

main16400-78080iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#..MTM..(CBU,IV3,IV6,IV7)199905-200105

sub16400-78081

sub90179-06293

main16400-78081iJ05C,S05#..XZU30#,31#,32#,33#,34#,351,352..MTM..(20T,295T,30T)..(CBU,IV3,IV6,IV7)200105-200206

sub16400-78160

main16400-78090iS05#..XZU301,302,306,307,312,321,322,331,337,341,347..4FC..(CBU,IV3,IV6)199905-200105

sub16400-78091

sub90179-06293

main16400-78091iS05#..XZU301,302,306,307,312,321,322,331,337,341,347..4FC..(CBU,IV3,IV6)200105-200206

sub16400-78170

main16400-78120iJ05C..XZU330,340,350..35T,40T199909-200105

sub16400-78121

sub90179-06293

main16400-78121iJ05C..XZU330,340,350..35T,40T200105-200206

main16400-78160iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#..MTM..DSL..(CBU,IV3,IV6,IV7)200206-200406

sub16400-78161

main16400-78170iS05#..XZU301,302,306,307,32#,331,337,341,347,352..4FC..(CBU,IV3,IV6)200206-200406

sub16400-78171

main16400-78190iS05D..XZU301,331..5F..IV4200206-200406

main16400-78200iS05D..XZU301,331..4FC..IV4200206-200406

main16400-78210iS05D..XZU371200206-200406

main16400-78220iS05C..XZU362,372,382200206-200406

main16400-78280iN04C..XZU304,305,344200310-200401

sub16400-78281

sub87245-37A00

sub87248-37451

sub87248-37531

sub90467-21010

main16400-78281iN04C..XZU304,305,314,334,344,354..SCB..(DCRL,DSLL)200401-200406

sub16400-78282

sub16575-78041

sub90467-13073

sub90467-15022

main16400-78340iN04C..XZU304,308,334,338,348..5F..DSL200406-200610

sub16400-78341

sub16575-78041

sub90467-13073

sub90467-15022

main16400-78350iN04C..XZU304,308,334,338,348..4FC200406-200610

sub16400-78351

sub16575-78041

sub90467-13073

sub90467-15022

main16400-78360iS05D..XZU301,306,311,321,331,336,341,346,351..5F200406-200610

sub16400-78361

main16400-78370iS05D..XZU301,306,331,336,341,346,351..6FC200406-200610

sub16400-78371

main16400-78380iN04C..XZU304,334..5F..IV4200406-200610

sub16400-78381

sub16575-78041

sub90467-13073

sub90467-15022

main16400-78390iN04C..XZU304,334..6FC200406-200610

sub16400-78391

sub16575-78041

sub90467-13073

sub90467-15022

main16400-78400iN04C..XZU368,378,388..DSL200406-200610

sub16400-78401

sub16575-78122

sub90467-13073

sub90467-15022

main16400-78410iN04C..XZU368,378,388..DCRL200406-200610

sub16400-78411

sub16575-78122

sub90467-13073

sub90467-15022

main16400-78420iN04C..XZU378..IV4200406-200610

16470TANK ASSY, RADIATOR RESERVE

main16470-78010i3RZ#..RZU30#,340..SCB199905-200406

main16470-78020iN04C..XZU304,334,378..IV4200406-200610

main16470-78020iS05#..XZU301,331,37#,382..DCB199908-200406

main16470-78030i4B..BU30#..DCB,VAN199905-200610

main16470-78040iS05D..XZU301,331..IV4199908-200406

main16470-78040iN04C..XZU304,334,378..IV4200406-200610

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16567-58080i1BZ#,4B..BU30#,346,BZU300,340..SCB199905-200406

sub16567-78570

main16567-78020iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB199905-200406

sub16567-78570

main16567-78030iS05C..XZU362,372,382..SCB199907-200406

sub16567-78170

main16567-78040iS05D..XZU301,331..IV4199908-200406

sub16567-78580

main16567-78060iS05#..XZU37#,382..DCB199908-200406

sub16567-78580

main16567-78100iS05D..XZU301,331..IV4199908-200406

sub16567-78130

main16567-78110i4B..BU30#..DCB,VAN199905-200610

main16567-78170iN04C..XZU304,305,344200310-200406

sub16567-78570

main16567-78190iN04C..XZU304,308,334,338,348..SCB..DSL200406-200610

sub16567-78370

main16567-78200iN04C..XZU304,334..IV4200406-200610

sub16567-78570

main16567-78210iN04C..XZU368,378,388..T4..DSL200406-200610

sub16567-78570

main16567-78230iN04C..XZU378..IV4200406-200610

sub16567-78580

main16567-78260iN04C..XZU304,334..IV4200406-200610

sub16567-78580

main16567-78270iN04C..XZU378..IV4200406-200610

sub16567-78570

main16567-78290iS05D..XZU301,306,311,321,331,336,341,346,351..SCB200406-200610

sub16567-78570

main16567-78310iN04C..XZU368,378,388..SCB..DCRL200406-200610

sub16567-78570

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iJ05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200610

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i3RZFE..RZU300..DCB199905-200406

main90445-12078i1BZ#,4B..BU30#,346,BZU300,340..SCB199905-200610

main90445-12078iS05D..XZU301,331..IV4199908-200610

16471CAP SUB-ASSY, RESERVE TANK

main16405-78010i3RZ#..RZU30#,340..SCB199905-200406

main16405-78020iS05#..XZU37#,382..DCB199908-200406

main16405-78020iN04C..XZU304,334,378..IV4200406-200610

main16405-78030iN04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3)199905-200610

main16405-78040iN04C..XZU304,334,378..IV4200406-200610

main16405-78040iS05D..XZU301,331..IV4199908-200406

16533BSUPPORT, RADIATOR, NO.1

main16533-78010i3RZ#..RZU30#,340..T2,T3,T4199905-200406

main16533-78050iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200310-200406

16534SUPPORT, RADIATOR, NO.2

main16534-78010iS05#..XZU362,37#,382199907-200406

main16534-78020i1BZ#,4B..BU30#,346,BZU300,340199905-200406

main16534-78060iN04C..XZU304,305,344200310-200406

sub16534-78130

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-58010i15B#..XZU301,302,341,342199912-200705

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-58090i4B..BU30#..DCB,VAN199905-200406

sub16567-78370

main16567-75010i3RZ#..RZU30#,340..SCB200005-200406

sub16567-78370

main16567-75020i3RZFE..RZU300..DCB200005-200406

sub16567-78370

main16567-78050iS05#..XZU307,31#,347..DCB,VAN199905-200406

sub16567-78370

main16567-78180iN04C..XZU304,308..(DCB,VAN)..4NO200406-200610

sub16567-78370

main16567-78220iN04C..XZU378,388..T3..20T..DCRL200406-200610

sub16567-78370

main16567-78250iS05D..XZU306,346..DCB,VAN200406-200610

sub16567-78370

main16567-78300iN04C..XZU378,388..T3..DSL200406-200610

sub16567-78370

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4B..BU30#..DCB,VAN199905-200406

16568PIPE, RADIATOR TO RESERVE TANK

main16568-58010i3RZFE..RZU300..DCB199905-200610

16571HOSE, RADIATOR, INLET

main16571-58160i1BZ#..BZU300,340199905-200609

sub16571-58161

main16571-58161i1BZ#..BZU300,340200610

main16571-75190i3RZ#..RZU30#,340200005-200406

main16571-78040iS05#..XZU362,37#,382199907-200406

main16571-78050iS05#..XZU301,307,31#,331,347..DCB,VAN199905-200610

main16571-78060iS05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..SCB199905-200406

main16571-78070iJ05C..XZU300,320,330,340,350199906-200406

main16571-78120iN04C..XZU304,305,344200310-200406

sub16571-78351

main16571-78140iN04C..XZU368,378,388200406-200610

sub16571-78141

main16571-78190iS05D..XZU301,306,311,321,331,336,341,346,351..SCB200406-200610

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main16581-58010i1BZ#,4B..BU30#,346,BZU300,340199905-200309

main16581-78050iS05C..XZU347..DCB..5F;S05C..XZU307,312..DCB,VAN;S05C..XZU347..DCB..T4..4FC199905-200309

main16581-78140i1BZ#..BZU300,340200608

sub16581-78190

main90460-52003iS05C..XZU307,312,347..DCB,VAN200307-200311

main90460-55014iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200312-200608

sub16581-78140

16572HOSE, RADIATOR, OUTLET

main16572-56091i1BZ#..BZU300,340200005-200406

main16572-58120i4B..BU30#,346199905-200406

main16572-58140i4B..BU30#,346199905-200406

main16572-58170i15B#..XZU301,302,341,342200005-200406

sub16572-58171

main16572-78030iS05C..XZU362,372,382199907-200406

main16572-78040iS05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..CBU,IV3,IV6,IV7199905-200406

main16572-78050iJ05C..XZU300,320,330,340,350199906-200406

main16572-78160iN04C..XZU304,305,308,314,334,338,344,348,354..CBU,IV3,IV6,IV7200310-200406

sub16572-78162

main16572-78180iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

main16572-78190iN04C..XZU368,378,388..CBU,IV3200406-200610

sub16572-78191

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main16581-58010i15B#..XZU301,302,341,342200005-200309

main16581-58010i4B..BU30#,346199905-200309

main16581-78050i1BZ#..BZU300,340200005-200309

main16581-78050iS05C..XZU347..DCB..5F;S05C..XZU307,312..DCB,VAN;S05C..XZU347..DCB..T4..4FC199905-200306

main16581-78050i4B..BU30#,346199905-200309

main16581-78140i1BZ#..BZU300,340200608

sub16581-78190

main90460-52003i4B..BU30#,346200310-200311

main90460-52003iS05C..XZU372,382;J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362..SCB200310-200311

main90460-52003iS05C..XZU307,312,347..DCB,VAN200307-200311

main90460-55014iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7200312-200608

sub16581-78140

main90460-55014i1BZ#..BZU300,340200312-200406

sub16581-78140

main90466-41003i4B..BU30#,346199905-200406

main90467-48003i4B..BU30#,346199905-200406

16577PIPE, RADIATOR, NO.7

main16577-48041i1BZ#..BZU300,340200005-200406

main16577-58080i4B..BU30#,346199905-200406

main16577-78040iN04C..XZU304,334..IV4200406-200610

main16577-78050iN04C..XZU378..IV4200406-200610

sub16577-78051

16582BRACKET, RADIATOR, NO.1

main16582-78010iS05#..XZU362,37#,382199907-200406

main16582-78020iJ05C,S05#,15B#..XZU300,301,302,306,307,33#,340,341,342,346,347,350199905-200406

main16582-78030iJ05C,S05#..XZU31#,32#,351,352199905-200406

main16582-78060iN04C..XZU304,305,344200310-200406

16583BRACKET, RADIATOR, NO.2

main16583-78010i1BZ#,4B..BU30#,346,BZU300,340199905-200406

sub16583-78011

main16583-78011i3RZ#..RZU30#,340200310-200603

sub16583-78012

main16583-78012i3RZ#..RZU30#,340200604

main16583-78060iN04C..XZU304,305,344200310-200603

sub16583-78061

main16583-78061iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200604

16584INSULATOR, RADIATOR MOUNTING

main16584-78010iJ05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#199905-200406

16585BRACKET, RADIATOR, NO.3

main16585-78010iS05#..XZU362,37#,382199907-200406

main16585-78020iJ05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#199905-200406

main16585-78060iN04C..XZU304,305,344200310-200406

16592GUIDE, RADIATOR AIR, NO.3

main16592-78010i4B..BU30#,346199905-200406

main16592-78020iS05D..XZU301,331..IV4199908-200610

sub16592-78100

16593GUIDE, RADIATOR AIR, NO.1

main16593-78010iJ05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#199905-200406

main16593-78020iS05C..XZU382..SCB..IV3199907-200108

sub16593-78021

main16593-78021iS05C..XZU362..4NO200108-200406

main16593-78030iS05#..XZU362,37#,382..1NO199907-200108

sub16593-78031

main16593-78031iS05#..XZU362,37#,382..1NO200108-200406

main16593-78070iS05D..XZU301,306,331,336,341,346200406-200610

main16593-78070iN04C..XZU304,305,344200310-200406

main16593-78110iS05D..XZU301,306,331,336,341,346200406-200610

16594GUIDE, RADIATOR AIR, NO.2

main16594-78010iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#199905-200406

main16594-78020iS05C..XZU382..SCB..IV3199907-200108

sub16594-78021

main16594-78021iS05C..XZU362..4NO200108-200406

main16594-78030iS05#..XZU362,37#,382..1NO199907-200108

sub16594-78031

main16594-78031iS05#..XZU362,37#,382..1NO200108-200406

main16594-78090iN04C..XZU304,334..SCB..(DCRL,DSLL);N04C,S05D..XZU301,305,306,331,336,341,344,346,354..03S,DM3,DM6,T2,T3,T4,T5200310-200406

16711SHROUD, FAN

main16701-78010iS05#..XZU362,37#,382199907-200406

main16711-58210i4B..BU30#,346199905-200207

sub16711-58211

main16711-58211i4B..BU30#,346200207-200406

main16711-58290i1BZ#..BZU300,340200005-200406

main16711-75180i3RZ#..RZU30#,340200005-200611

sub16711-75181

main16711-75181i3RZ#..RZU30#,340200612

main16711-78020iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#199905-200406

sub16711-78021

main16711-78021iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

main16711-78100iN04C..XZU304,305,344200310-200406

sub16711-78280

main16711-78110iN04C..XZU368,378,388200406-200610

sub16711-78290

16721PLATE, HOLDER

main16721-78010iJ05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#199905-200406

1708

2606

8716

9011906182

main90119-06182

9017906293

main90179-06293

9017908040

main90179-08040

9017908233

main90179-08233

9017908249

main90179-08249

9043012221

main90430-12221

9046400690

main90464-00690

9046400840

main90464-00840

9046713020

main90467-13020

9151160612

main91511-60612

9162140816

main91621-40816

9165160816

main91651-60816

91651B0822

main91651-B0822

91651B0825

main91651-B0825

9415010801

main94150-10801

64 parts on this diagram · 24 diagrams in section
