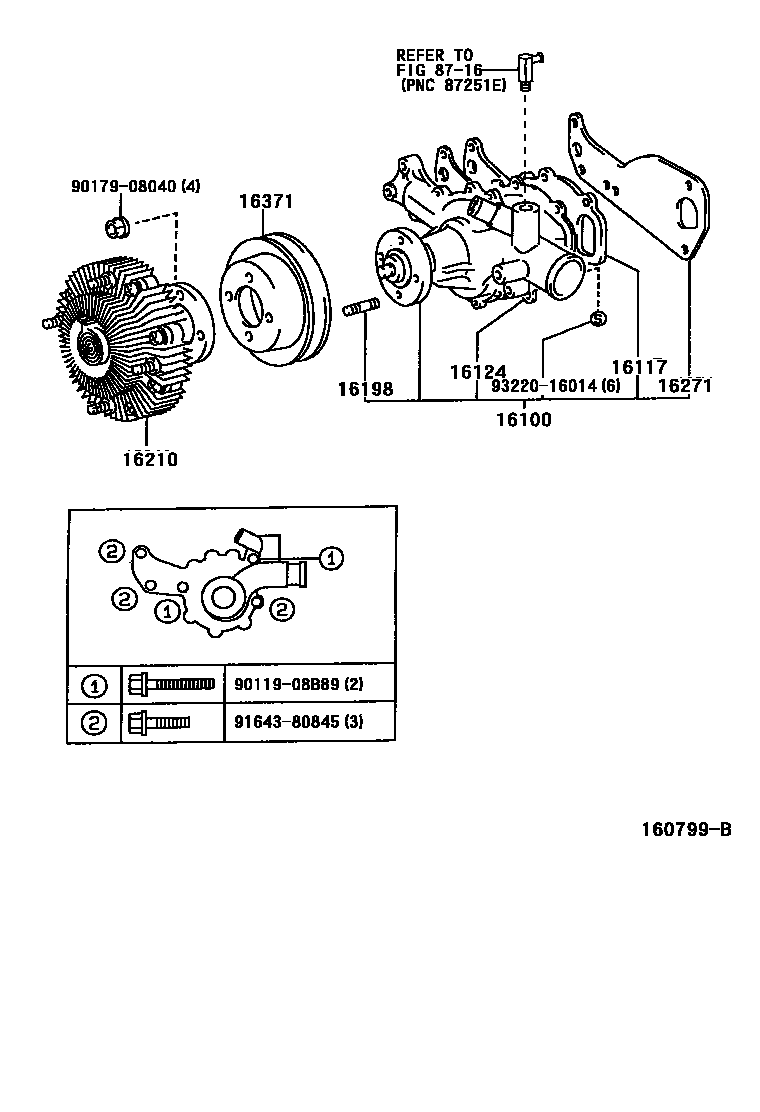

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0007 1 0008 1 0009 1

16100PUMP ASSY, ENGINE WATER

main16100-59166i15B#..XZU301,302,341,342200005-200306

main16100-59285i4B..BU30#,346199905-200406

main16100-78030iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#199905-200011

main16100-78041iS05#..XZU362,37#,382199907-200406

main16100-78050iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

main16100-78080iN04C..XZU304,305,344200310-200406

main16100-78110iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200511-200705

main16100-79255i3RZFPE..RZU301;3RZFE..RZU300,340;3RZFPE..RZU300..30T200005-200308

main16100-79445i3RZ#..RZU30#,340200308-200406

16117PLATE, WATER PUMP

main16117-58010i1BZ#..BZU300,340200306-200406

main16117-58090i4B..BU30#,346199905-200406

16124GASKET, WATER PUMP COVER

main16124-58010i15B#..XZU301,302,341,342200005-200306

main16124-58090i4B..BU30#,346199905-200406

main16124-75030i3RZ#..RZU30#,340200406

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170×4i1BZ#,4B..BU30#,346,BZU300,340199905-200406

main92122-60818×4i3RZ#..RZU30#,340200005-200308

main92122-80818×4i3RZ#..RZU30#,340200308-200406

16210COUPLING ASSY, FLUID

main16210-58030i1BZ#..BZU300,340200406

main16210-58060i4B..BU30#,346199905-200406

main16210-75060i3RZ#..RZU30#,340200406

main16250-78040iJ05C..XZU300,320,330,340,350199906-200011

main16250-78050iS05D..XZU301,306,331..DSLL200005-200011

main16250-78070iS05#..XZU362,37#,382199907-200011

main16250-78071iS05#..XZU362,37#,382200011-200012

main16250-78072iS05#..XZU362,37#,382200012-200406

main16250-78080iS05C..XZU302,307,312,322,342,347,352..SCB200112-200406

main16250-78090iS05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;J05C..XZU300,320,330,340,350;S05D..XZU301,331..5F..DSLL..(CBU,IV4);S05D..XZU301,311,341,346,351..(DM5,T4)..DSLL..IV3200011-200406

main16250-78110iN04C..XZU304,305,344200310-200406

main16250-78150iN04C..XZU304,308,334,338,348,368,378,388..DSL200406-200610

main16250-78160iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

16271GASKET, WATER PUMP

main16271-58010i15B#..XZU301,302,341,342200005-200306

16371PULLEY, FAN

main16308-78010iS05#..XZU362,37#,382199907-200406

main16308-78020iS05C..XZU312,347..DCB..5F;S05C..XZU302,347..SCB..20T;S05D..XZU301..T4..4FC..4NO;S05C..XZU347..DCB..T4..4FC;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU306,321..(DM7,T4)..4NO;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU301..5F..DSLL..IV3..1NO;S05#..XZU322,331..(DM7,DM8,T3,T4)..DSL;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,330,337,340,341,342,346,35#199905-200406

main16308-78030iN04C..XZU304,305,344200310-200406

main16371-58070i15B#..XZU301,302,341,342200005-200306

main16371-58090i4B..BU30#,346199905-200406

main16371-75030i3RZ#..RZU30#,340200406

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9011908B89

main90119-08B89

9017908040

main90179-08040

9164380845

main91643-80845

9322016014

main93220-16014

12 parts on this diagram · 7 diagrams in section
