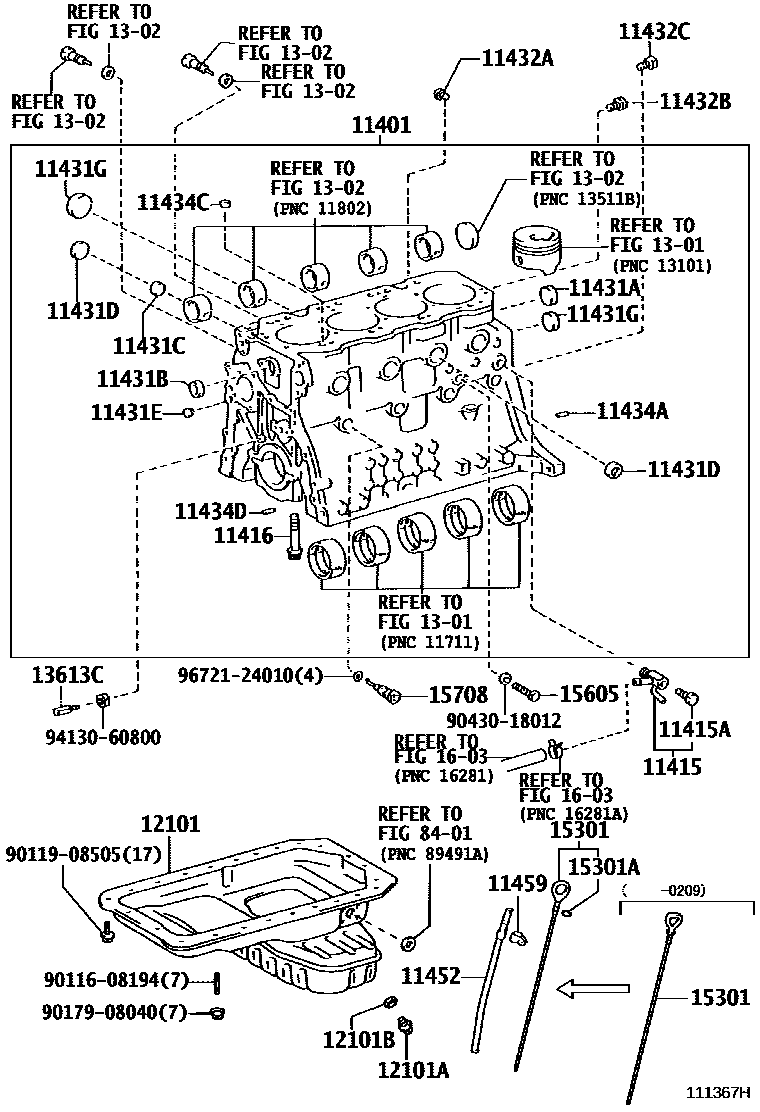

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-49745i1BZFNE..BZU300,340200406

main11401-49755i1BZFPE..BZU300,340200406

main11401-59635i15BLPG..XZU301,302,341,342200005-200306

main11401-59715i4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5199905-200406

main11401-59745i15BCNG..XZU301,302,342200010-200306

main11401-78020iJ05C..XZU300,320,330,350199906-200109

main11401-78030iS05C..XZU302,307,312,322,337,342,347,352,362,372,382199905-200201

main11401-78031iS05C..XZU302,307,312,322,337,342,347,352,362,372,382200201-200406

main11401-78040iS05D..XZU301,306,311,321,331,341,346,351,371..DSL200010-200201

main11401-78041iS05D..XZU301,306,311,321,331,341,346,351,371..DSL200201-200406

main11401-78050iS05D..XZU301,306,331..DSLL200010-200202

main11401-78051iS05D..XZU301,306,331..DSLL200202-200206

main11401-78070iJ05C..XZU300,320,330,350200109-200201

main11401-78071iJ05C..XZU300,330,340,350200206-200406

main11401-78110iS05D..XZU301,306,311,331,341,346,351..DSLL200210-200406

main11401-78171iN04C..XZU304,305,344200310-200406

main11401-78180iN04C..XZU304,308,334,338,348,368,378,388..DSL200406-200610

main11401-78190iN04C..XZU304,334,378..IV4,IV7200406-200610

main11401-78200iS05D..XZU301,306,311,321,331,336,341,346,351200406-200501

main11401-78201iS05D..XZU301,306,311,321,331,336,341,346,351200501-200609

main11401-79686i3RZFPE..RZU301;3RZFE..RZU300,340;3RZFPE..RZU300..30T200005-200406

main11401-79687i3RZ#..RZU30#,340200406

main11410-78260iS05D..XZU301,306,311,321,331,336,341,346,351200609-200610

main11410-78290iN04C..XZU304200704-200705

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09078i4B..BU30#,346199905-200406

main90910-09095i1BZ#..BZU300,340200406

main90910-09118i3RZ#..RZU30#,340200406

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1BZ#..BZU300,340; 3RZ#..RZU30#,340200406

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90031-09052×10iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL200206-200210

main90910-02082×5i1BZ#..BZU300,340200406

main90910-02083×5i1BZ#,4B..BU30#,346,BZU300,340199905-200406

main90910-02092×10i3RZ#..RZU30#,340200005-200406

main90910-02156×10iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200406-200705

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90033-31026×4iJ05C..XZU300,320,330,340,350200109-200406

main90331-50002×4iJ05C..XZU300,320,330,340,350199906-200109

main96411-63000i3RZ#..RZU30#,340200005-200406

main96411-64500i1BZ#,4B..BU30#,346,BZU300,340199905-200406

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90033-31019×3iJ05C..XZU300,320,330,340,350199906-200109

main90033-31027×3iJ05C..XZU300,320,330,340,350200109-200406

main90033-31035×3iN04C..XZU304,305,344200310-200406

main90331-50003i1BZ#,4B..BU30#,346,BZU300,340199905-200406

main96411-63500×8i3RZ#..RZU30#,340200406

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90033-31018×2iJ05C..XZU300,320,330,340,350199906-200109

main90033-31021×2iS05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL199905-200206

main90033-31022×2iS05D..XZU301,306,311,321,331,336,341,346,351200609-200610

main90033-31034×5iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200406-200705

main96411-63000×4i1BZ#,4B..BU30#,346,BZU300,340199905-200406

main96411-64000×3i3RZ#..RZU30#,340200005-200406

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90033-31016×5iJ05C..XZU300,320,330,340,350199906-200109

main90033-31020×5iS05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL199905-200206

main90033-31023iS05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382200210-200406

main96411-63500×5i1BZ#,4B..BU30#,346,BZU300,340199905-200406

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90033-31025×3iS05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL199905-200206

main90331-14006×3i1BZ#,4B..BU30#,346,BZU300,340199905-200406

11431GPLUG, TIGHT

main90033-31019iJ05C..XZU300,320,330,340,350199906-200109

main90033-31025iS05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382199905-200206

main90033-31027iJ05C..XZU300,320,330,340,350200109-200406

main96411-65000×4i15B#..XZU301,302,341,342200005-200306

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51007×3i1BZ#..BZU300,340200406-200705

main90345-53009i3RZ#..RZU30#,340200005-200406

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53004i15B#..XZU301,302,341,342200005-200306

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-52001i15B#..XZU301,302,341,342200005-200306

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90032-50050×2iN04C..XZU304200704-200705

main90250-08015×2iN04C..XZU304,305,344200310-200406

main90250-08120×2i1BZ#,4B..BU30#,346,BZU300,340199905-200406

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90032-50049×3iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

main90250-08016×2iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200406-200704

main90253-15008×2i1BZ#,4B..BU30#,346,BZU300,340199905-200406

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i3RZ#..RZU30#,340200005-200406

main90250-08120×2i15B#..XZU301,302,341,342200005-200306

11452GUIDE, OIL LEVEL GAGE

main11409-48010i15B#..XZU301,302,341,342200005-200306

main11409-75020i3RZ#..RZU30#,340200005-200406

main11409-78020iS05D..XZU301,306,311,321,331,336,341,346,351200406-200509

main11409-78021iS05D..XZU301,306,311,321,331,336,341,346,351200509-200610

main11409-78030iN04C..XZU304,305,344200310-200406

main11409-78040iN04C..XZU304,308,334,378,388..DCB,VAN200406-200610

main11452-56050i4B..BU30#,346199905-200406

main11452-78020iJ05C..XZU300,320,330,340199906-200406

main11452-78030iJ05C..XZU350199906-200406

main11452-78050iS05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382199905-200406

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-56040i4B..BU30#,346199905-200406

main11459-78010iJ05C..XZU350199906-200206

main11459-78020iS05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382199905-200406

12101PAN SUB-ASSY, OIL

main12101-58170i1BZ#..BZU300,340200306-200406

main12101-58220i4B..BU306,346199905-199906

main12101-58221i4B..BU30#,346199906-200406

main12101-75060i3RZ#..RZU30#,340200406

main12101-78020iS05D..XZU306..5F..DSLL..IV3;S05D..XZU301..DSLL..IV3..1NO200210-200406

main12101-78030iJ05C..XZU350199906-200206

main12101-78040iS05C..XZU362,372,382199907-200206

main12101-78041iS05C..XZU362,372,382200206-200406

main12101-78050iS05D..XZU371199908-200206

main12101-78051iS05D..XZU371200206-200406

main12101-78070iJ05C..XZU350200206-200406

main12101-78090iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6,IV7200406-200705

main12101-78100iN04C..XZU304,334,378..IV4200406-200610

main12111-78050iS05D..XZU301,331..DSLL..IV4200210-200406

12101APLUG(FOR OIL PAN DRAIN)

main90033-41020iS05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382199905-200406

main90341-12012i1BZ#,4B..BU30#,346,BZU300,340199905-200406

main90341-12026i15B#..XZU301,302,341,342200005-200210

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90034-30046iN04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388200506-200705

main90202-18002iS05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3200005-200206

main90430-12031i15B#..XZU301,302,341,342200005-200306

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13613CNOZZLE, OIL

main90915-01015i15B#..XZU301,302,341,342200005-200306

15301GAGE SUB-ASSY, OIL LEVEL

main15301-58011i4B..BU30#,346199905-200209

main15301-58060i15B#..XZU301,302,341,342200005-200306

main15301-58110i4B..BU30#,346200209-200406

main15301-75020i3RZ#..RZU30#,340200005-200406

main15301-78020iJ05C..XZU300,320,330,340199906-200406

main15301-78030iJ05C..XZU350199906-200406

main15301-78040iS05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352199905-200406

main15301-78050iS05#..XZU362,37#,382199907-200406

main15301-78061iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388..SCB200406-200705

main15301-78070iS05D..XZU301,306,311,321,331,336,341,346,351200406-200511

main15301-78071iS05D..XZU301,306,311,321,331,336,341,346,351200511-200610

main15301-78090iN04C..XZU304,308,334,378,388..DCB,VAN200406-200610

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1BZ#..BZU300,340200406

15605VALVE SUB-ASSY, OIL CHECK

main15605-56010i15B#..XZU301,302,341,342200005-200306

main15703-78010×4iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

main15703-78030iN04C..XZU304,305,344200310-200406

15708NOZZLE SUB-ASSY, OIL, NO.1

main11418-78010×4iN04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL200406-200705

main11418-78020×4iN04C..XZU304,308,334,338,348,368,378,388..DSL200406-200610

main15708-56010×4i4B..BU30#,346199905-200406

main15708-58040×4i1BZ#..BZU300,340200406

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011608194

main90116-08194

9011908505

main90119-08505

9017908040

main90179-08040

9043018012

main90430-18012

9413060800

main94130-60800

9672124010

main96721-24010

36 parts on this diagram · 15 diagrams in section
