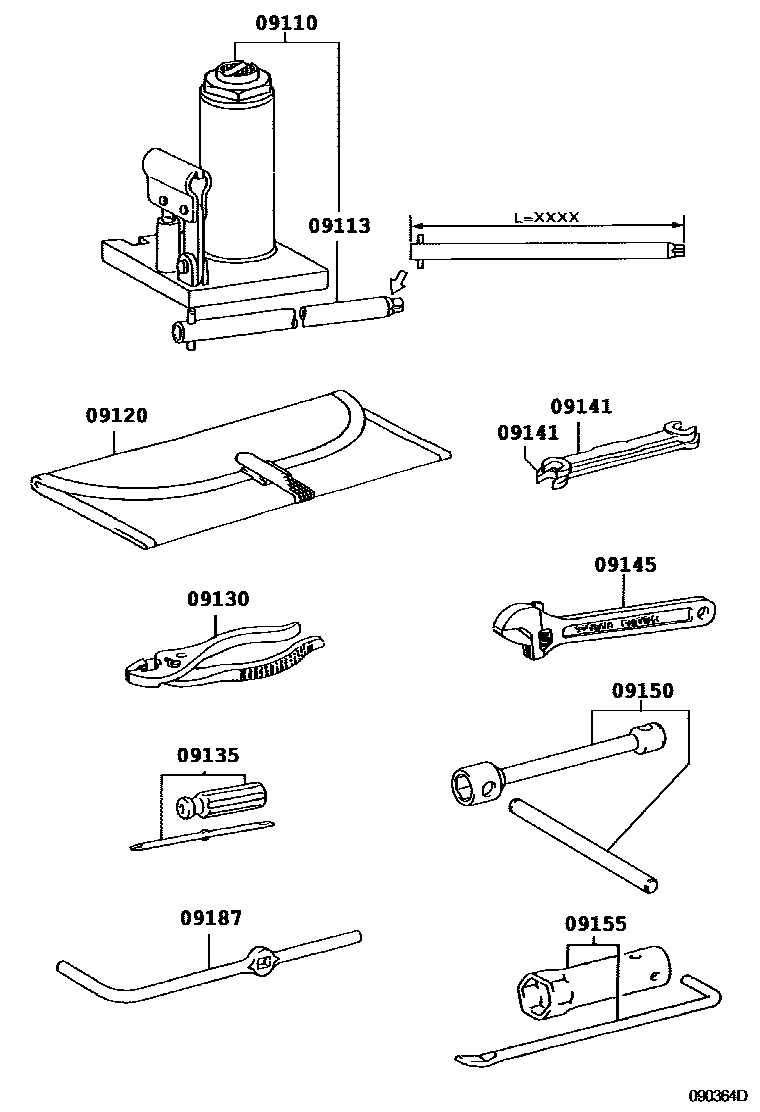

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09110-37070iRZU300..30T;XZU302..DM3,DM6,T3;XZU321,322,342..DSL;XZU301..DM3,DM6,T3,T4;XZU301..T5..(295T,30T);XZU302..(T4,T5)..(295T,30T);BU301,XZU300,320,330,331,340,341,350..1N199905-200206

sub09110-37230

sub09187-37010

sub75298-37020

sub75299-37040

sub94271-00800

main09110-37080iBU306,346,RZU300,XZU307,31#,337,347,351,352..03S,06S,DM2,DM5,T2199905-200206

sub09110-37200

sub09187-37010

sub75298-37030

sub75299-37040

sub94271-00800

main09110-37090iXZU301,302..(T4,T5)..20T;RZU300,XZU342..T4..20T..(CNG,EFI,LPG);BU30#,346,RZU340,XZU306,307,337,346,347,362,37#,382..DM5,DM7,T1,T3,T4,T5199905-200206

sub09110-37210

sub09187-37010

sub75298-37030

sub75299-37040

sub94271-00800

main09110-37200iXZU306..5F..DSLL..IV3200206-200212

sub09111-37190

sub09113-37060

main09110-37210iXZU306..5F..DSLL..IV3200206-200212

sub09111-37190

sub09113-37070

main09110-37220iXZU330..40T;XZU302..DM3,T3;XZU32#..DM7,T5;XZU301..DSLL..4NO;XZU301..T5..(295T,30T);XZU330,340,341,342..CBU;XZU302..(T4,T5)..(295T,30T);RZU300,XZU300,331..SCB..30T;X200206-200212

sub09111-37200

sub09113-37080

main09110-37220iXZU301..30T..DSLL..IV3..1NO200210-200212

sub09111-37200

sub09113-37080

main09110-37230iXZU301..CNG,LPG;XZU301..DSL..(IV4,IV6);XZU300,301..T4..(DSL,DSLL)..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU322,342..(T3,T4,T5)..DSL..IV3;XZU302,340,341,350..(IV3,IV200206-200212

sub09111-37200

sub09113-37070

main09110-37230iXZU301,331..4FC..DSLL;XZU301..5F..20T..DSLL200210-200212

sub09111-37200

sub09113-37070

main09110-37330iBU306,XZU307..VAN200207-200212

sub09111-37190

sub09113-37110

main09111-37190iXZU31#,368,378,388;XZU304..20T..DCRL..4NO;XZU304..(DSL,DSLL)..4NO;BZU300,340,RZU30#,340,XZU301,306,308,334,336,338,34#,35#..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T200212-200610

sub09111-37260

main09111-37200iXZU32#,341;XZU342..DSL;XZU301..DM3,DM6,T3,T4;XZU301..T5..(295T,30T);BZU300,XZU302..DM3,DM6,T3;BZU300,XZU302..(T4,T5)..(295T,30T);BZU340,RZU300,XZU300,330,331,340,35200212-200406

main09111-37230iBZU300,XZU301,304,305,321..DM3,DM6,DM7,T3;BZU300,XZU301,304..(T4,T5)..30T..(DCRL,DSL,LPG);BZU340,RZU300,XZU331,334,341,344,354..30T,35T,40T200406

sub09111-37280

main09111-37260iBZU300,340,RZU30#,340..(DM5,T2,T4)..20T200610

09113HANDLE, JACK

main09113-37020iBU306,346,RZU300,XZU307,31#,337,347,351,352..03S,06S,DM2,DM5,T2199905-200206

main09113-37030iBU30#,346,RZU300,340,XZU30#,32#,33#,34#,350,362,37#,382..DM3,DM5,DM6,DM7,DM8,T1,T3,T4,T5199905-200206

main09113-37060iXZU337..T2..CBU;XZU306..DSLL..CBU;XZU301..DSLL..4NO;BU346,XZU347..T2..IV3;XZU306..4FC..DSLL..IV3;BU306,RZU300,XZU307,372..DCB..CBU;RZU301,XZU330..5F..(20T,40T)..IV3200206-200610

sub09113-37070

main09113-37060iXZU346,348..T2..IV3;RZU300..SCB..T4..20T..IV3200406-200505

sub09113-37070

main09113-37070iXZU304,305,344..IV3200310-200406

sub09113-0W030

main09113-37070iXZU301..CNG,LPG;XZU301..T4..IV3..4NO;BZU300..(DM6,T3)..IV3;XZU301..DSL..(IV4,IV6);XZU306..4FC..DSLL..IV3;BZU300,XZU300,306..T4..(DSL,LPG)..IV3;XZU301,322..(DM6,DM8)200206-200406

sub09113-0W030

main09113-37100iBU306,XZU307..VAN200207-200610

sub09113-0W080

09120BAG, TOOL

main09120-30020iBU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-200003

main09120-37020iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382200003-200206

sub09120-37030

main09120-37030iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3200206-200406

09130PLIERS

main99913-11500iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3199905-200406

09135DRIVER, SCREW

main99915-10700iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3199905-200406

09141SPANNER

main99914-10810iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200406

main99914-11214iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388199905-200406

09145WRENCH, MONKEY

main99911-11200iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200406

09150WRENCH, HUB NUT BOX

main09150-36030iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-200206

sub09150-37030

main09150-37030iXZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306,331..CNG,DSL,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,34200206-200406

09155WRENCH, SPARK PLUG

main09155-74010iBZU300,340,RZU301,XZU301,302,341,342..CNG,LPG200005-200705

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-200206

main09187-37010iXZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306,331..CNG,DSL,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,34200206-200406

10 parts on this diagram · 2 diagrams in section
