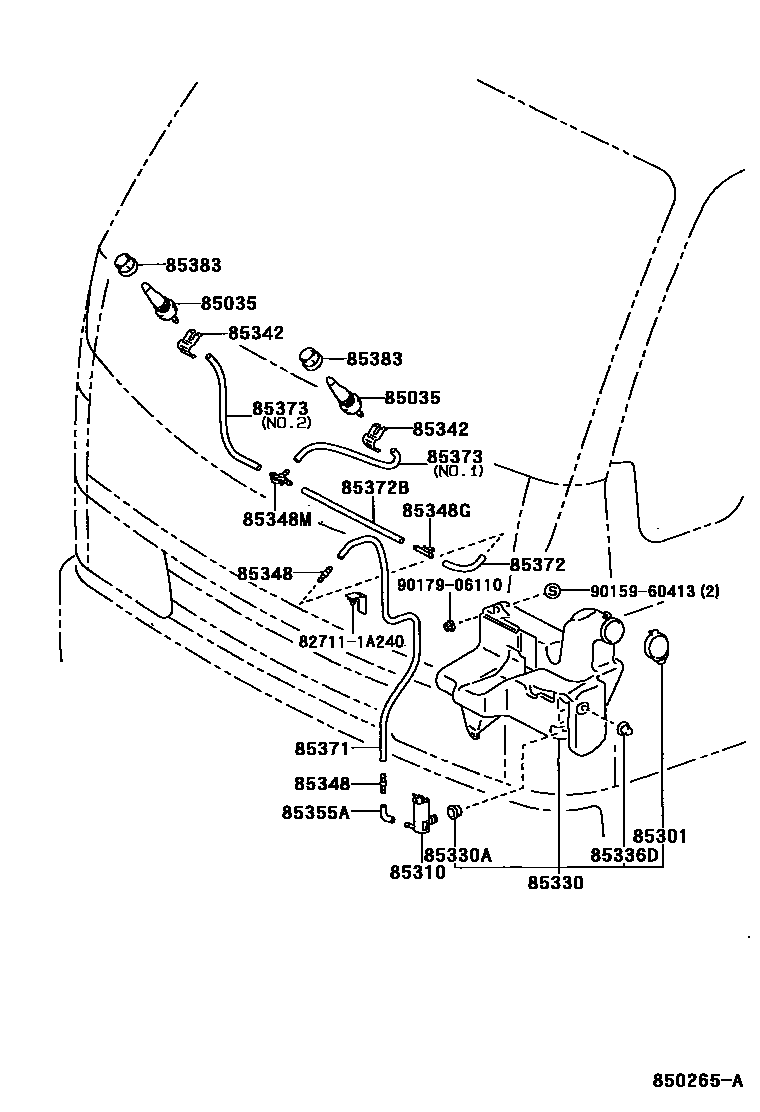

WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-37020iBU10#,112,12#,13#,14#,162,172,182,297,RZU100,140,XZU130,140199505

85301INLET SUB-ASSY, WASHER

main85301-17010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iBU102,142,RZU100,140..EFI,LPG,LPGB199505

main85310-90B00iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD199505

85330JAR ASSY, WINDSHIELD WASHER

main85315-37030iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505

main85315-37070iBU202,212,222,297199505

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

85336DPACKING, WINDSHIELD WASHER JAR

main85336-20340iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

85342HOLDER, WASHER NOZZLE

main85342-95J01iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-20800iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85378-33030iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505

85355AJOINT, WINDSHIELD WASHER ELBOW

main85355-14481iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-59135iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505-199909

main90099-59137iBU202,212,222,297199505-199906

main90446-06013iRZU100,140199909

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505

main90446-07001iBU202,212,222,297199505

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505-199909

main90099-33299iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505-199909

main90099-33299iRZU100,140199909

main90099-59139iBU202,212,222,297199505-199906

85383HOLDER, FRONT WASHER NOZZLE

main85383-37010iBU202,212,222,297199505

827111A240WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A240

9015960413

main90159-60413

9017906110

main90179-06110

19 parts on this diagram · 2 diagrams in section
