POWER TAKE-OFF CONTROL
84280CSWITCH ASSY, POWER TAKE-OFF CLUTCH
main84280-93101iBU102..DM5..IV3;BU102,112,132,142,162,172,182,202,212,222..(DM6,T2,T3,T4,T5,TW4)..5F199505-199510
main84280-93102iBU100,105,140,145,RZU100,140..(DM6,T1,T2,T3,T4,TW1,TW2,TW4)..(DSL,EFI,LPG)199708-200005
85999KBRACKET, POWER TAKE-OFF RELAY, NO.1
main85999-12050×2iBU102..T4..CBU..4FC;BU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3)199708-200005
85999LBRACKET, POWER TAKE-OFF RELAY, NO.2
main85999-93102iBU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3)199708-200005
12V
main85999-93103iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505-199906
main85999-93105iRZU100,XZU130..02S,03S;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)..5F199703-199708
24V
88610KSWITCH ASSY, POWER TAKE-OFF CONTROL
main88610-93102iXZU130;BU112..T3..5F;BU10#,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)199510-199601
88610UBULB, POWER TAKE-OFF CONTROL SWITCH
main84999-10100iBU112..T3..5F;BU102..DM5..IV3;BU10#,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)199505-199510
88630LRELAY, POWER TAKE-OFF CONTROL
main90987-02005×2iBU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..5F199505-199510
9017906158
main90179-06158
9046400515
main90464-00515
9111150616
main91111-50616
9161160614
main91611-60614

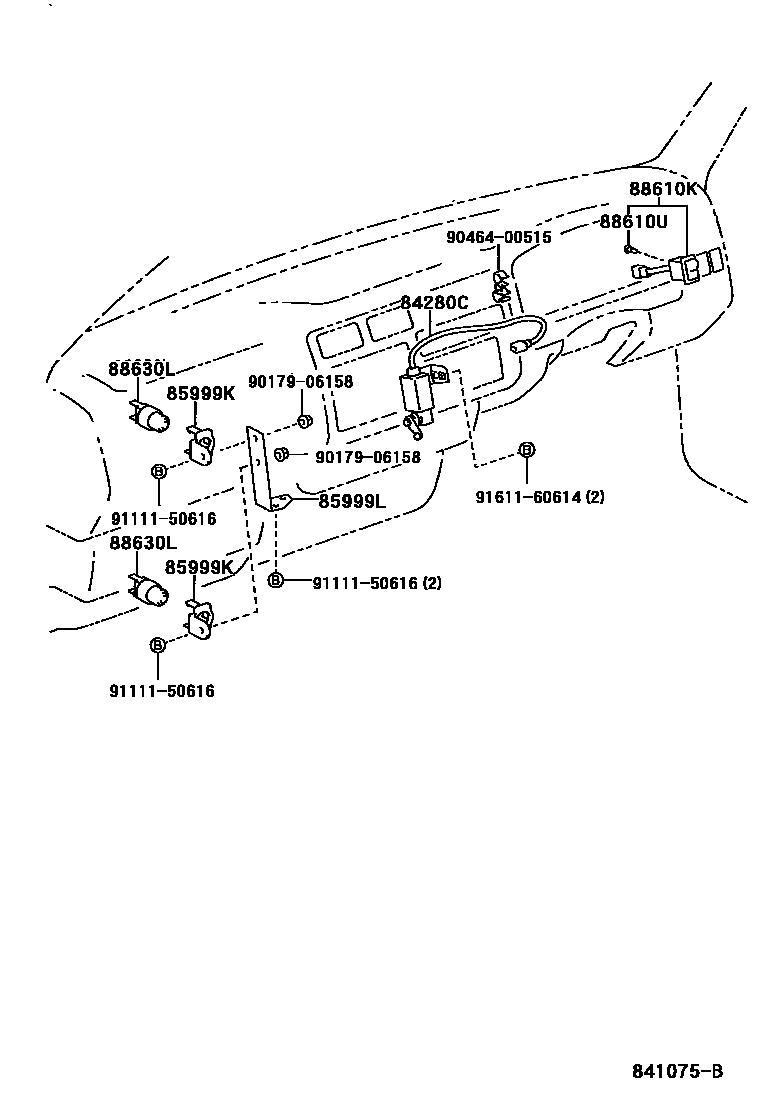

10 parts on this diagram · 4 diagrams in section
