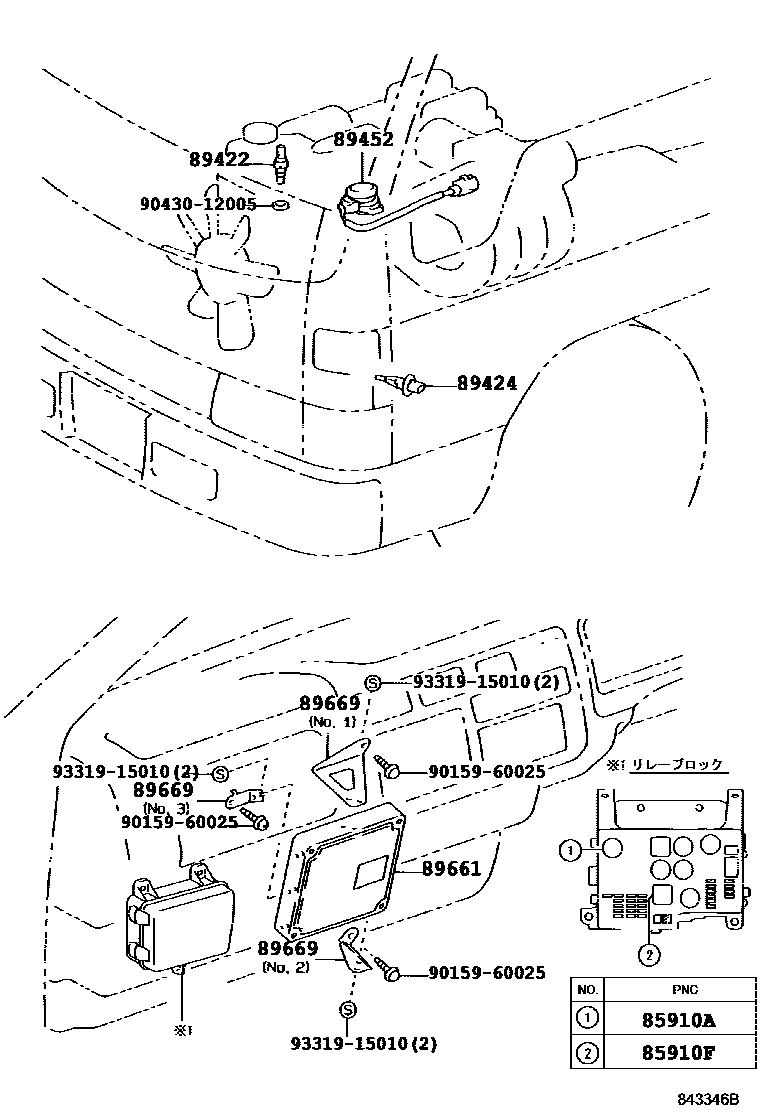

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02004iRZU100,140..EFI199505-200005

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iRZU100,140..EFI199505-200005

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iRZU100,140..EFI199505-200005

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRZU100,140..EFI199505-200005

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iRZU100,140..EFI199505-200005

89661COMPUTER, ENGINE CONTROL

main89661-37010iRZU100..EFI199505-199708

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89559-37010iRZU100..EFI199505-199708

main89559-37020iRZU100..EFI199505-199708

main89559-37060iRZU100..EFI199505-199708

9015960025

main90159-60025

9043012005

main90430-12005

9331915010

main93319-15010

10 parts on this diagram · 1 diagram in section
