Toyota DYNA 200/TOYOACE G25751 — METER

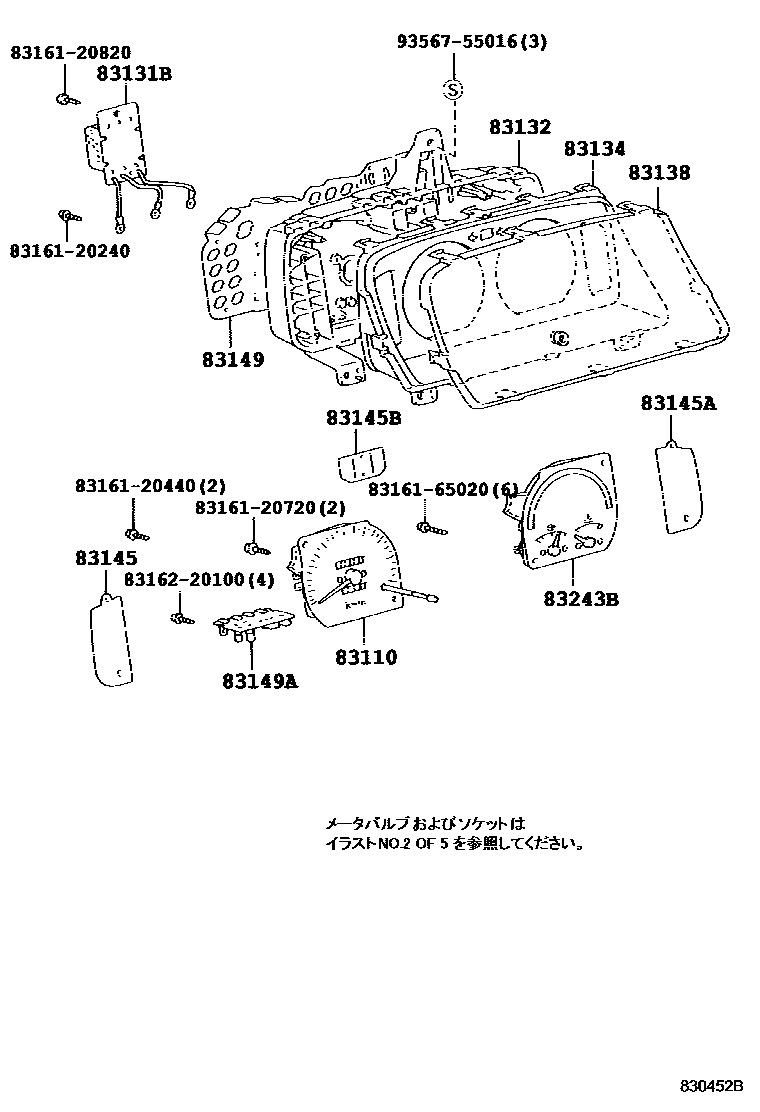

Parts diagram
83110SPEEDOMETER ASSY
83110-37060
83131BDROPER, METER
83132CASE, COMBINATION METER
83132-37020
83134COVER, COMBINATION METER, NO.1
83134-37020
83138GLASS, SPEEDOMETER
83137-37020
83145LENS, METER, NO.1
83145-3V010
83145-3V020
83831-37040
83831-37100
83832-37100
83146-37140
83146-37160
83146-37200
83146-37220
83146-37240
83146-37260
83145-37890
83145ALENS, METER, NO.2
83145BLENS, METER, NO.3
83149PLATE, METER CIRCUIT
83861-37041
83861-37042
83861-37043
83861-37100
83861-37111
83247-37150
83247-37160
83247-37170
83247-37180
83247-37190
83247-37200
83247-37210
83247-37220
83149-37220
83149-37320
83149-37340
83149-37360
83149-37380
83149-37650
83149-26860
83149APLATE, METER CIRCUIT, NO.2
83243BGAUGE ASSY, COMBINATION
8316120240CASE, COMBINATION METER MIRROR, NO.1
83161-20240
8316120440CASE, COMBINATION METER MIRROR, NO.1
83161-20440
8316120720CASE, COMBINATION METER MIRROR, NO.1
83161-20720
8316120820CASE, COMBINATION METER MIRROR, NO.1
83161-20820
8316165020CASE, COMBINATION METER MIRROR, NO.1
83161-65020
8316220100CASE, COMBINATION METER MIRROR, NO.2
83162-20100
9356755016
93567-55016

18 parts on this diagram · 7 diagrams in section

METER for Toyota DYNA 200/TOYOACE G25751

This section contains 59 genuine Toyota parts for the METER system of the Toyota DYNA 200/TOYOACE G25751. Key components include: BULB, COMBINATION METER, NO.1, SPEEDOMETER ASSY, DROPER, METER, CASE, COMBINATION METER, COVER, COMBINATION METER, NO.1.
