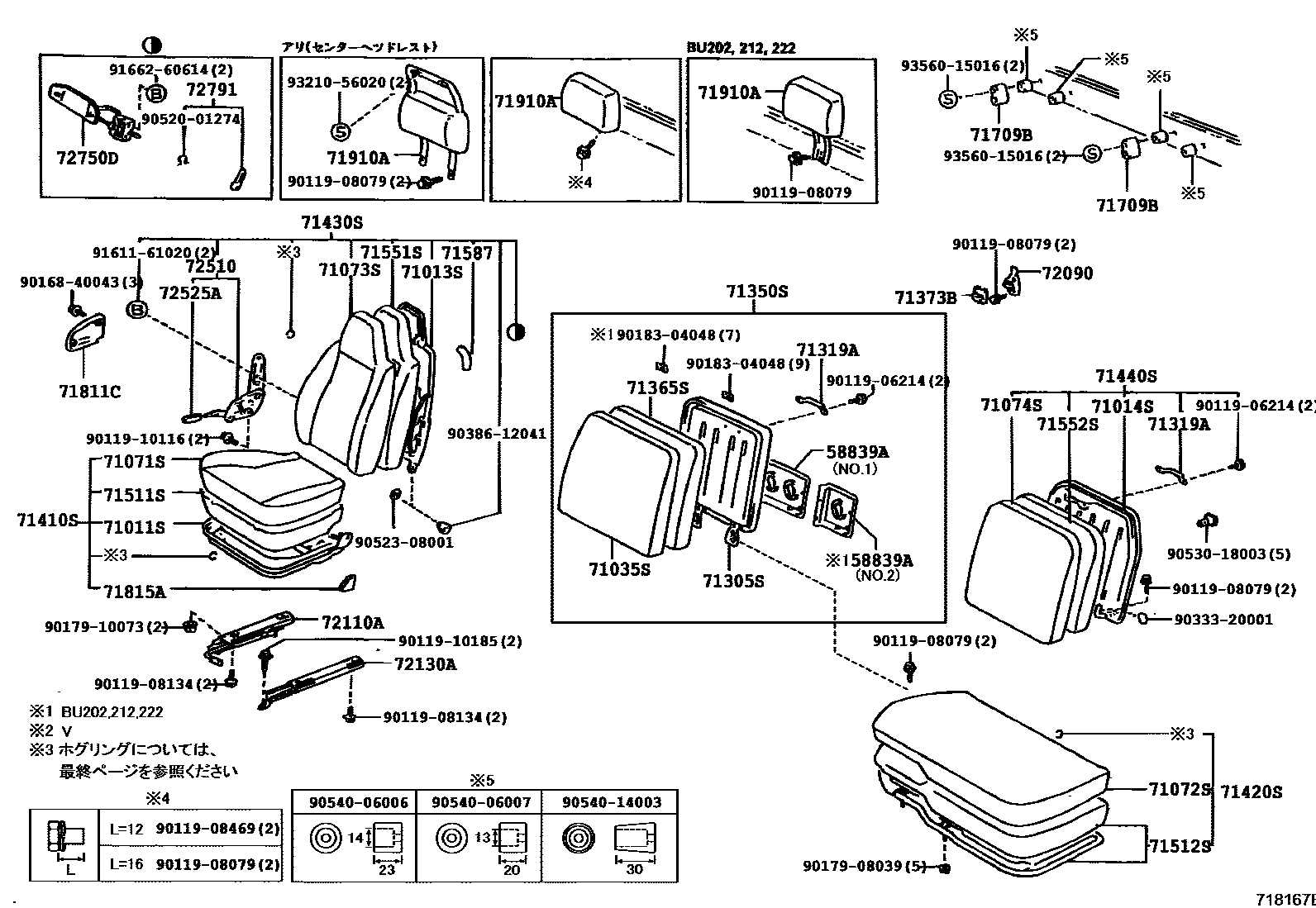

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 12���� �-� 0005 12���� �-� 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1�������

58839ACOVER, CONSOLE BOX HOLE

main58839-95400-C0iBU202,212,222..03S199505-199906

main58839-95401-C0iBU202,212,222..03S199505-199906

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-37020iBU212..T2..IV3..5F; BU212..T3..DSL..IV3..5F199610-199708

main71011-37030iBU100,12#..DMP,V;BU102,RZU100..DM6..(DSL,EFI,LPG); RZU100..DM5;BU142..T3..6F;BU102..T3..4FC;BU132..CBU..4FC;BU222,297..4FC,6F;BU212..03S..20T..6F;BU102..(DM6,T3)..LPGB;BU102,132,142,RZU140..T2,T4; RZU100..LPGB;BU132..CBU..5F;BU142..T3..(4FC,5F);BU132,212..(ALV,T3)..30T..IV3;BU102..(DM2,DM3,DM5,T3,T5)..DSL..5F;BU100,112,140,202,212,222,RZU100..(DM7,DM8,T1,T2,T3,T4)..(DSL,EFI,LPG,TD)..(4FC,5F)199610-200005

main71011-37040iBU162;BU172,182,XZU130..(DM7,T3,TW1)..(02S,05S)199505-199905

main71011-37050iXZU130199610-199905

main71011-37060iBU212,222..03S..20T..6F199708-199905

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-37050iBU142..6F;RZU100..DM5;BU212,RZU140;BU102,142..T2,T4; RZU100..LPGB199905-200005

main71013-37060iBU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130; BU10#,RZU100..DM6199505-199610

main71013-37070iBU142..30T;RZU100..LPGB;BU172,182..T4;BU102..T4..30T;BU142..T3..20T;BU102..20T..LPGB;BU102,112,132..DM2,DM3,DM5,DM7,DM8,T3,T5;BU100,140,202,212,222,297,RZU100,140,XZU130,140..(ALV,DM5,DM7,T1,T2,T3,T4,TW1)..(02S,03S,05S)..(DSL,EFI,LPG,TD); BU162;BU172,182..T3;BU100,12#..DMP,V;BU102,RZU100..DM6..(DSL,EFI,LPG)199610-200005

main71013-37080iBU100,102,RZU100..DM6..(DSL,EFI,LPG); BU137,147..T4..IV3..5F;BU100,107,RZU100..T4..(DSL,LPG)..IV3; BU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,DM6,T3,T5,TL4,TW1;BU100,105,107,112,12#,137,140,145,147,162,172,182,202,212,222,RZU100,140,XZU130,140199610-200005

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71013-37050iBU212..30T199712-199906

main71014-37020iBU162,172,182,XZU130,140199505-199906

main71014-92602iBU212,297..TW1,TW4199505-199905

main71014-95417-01iBU120;BU10#,112,122,13#,14#,RZU100,140..03S199505-200005

BLACK,TRIM1#

main71014-95418-01iBU10#,142,147,RZU100..06S199505-200005

BLACK,TRIM1#

main71014-95419-01iBU202,212,222..03S199505-199906

BLACK,TRIM1#

main71014-95420-01iBU102..IV4199610-199905

71035SCOVER, FRONT SEATBACK, CENTER

main71095-37090-B0iBU120;BU10#,112,122,13#,14#,RZU100,140..03S199505-200005

BLUISH GRAY,TRIM1#

main71095-37100-B0iBU100,102,112,RZU100..DMP199505-200005

main71095-37110-B0iBU10#,112,132,14#,RZU100..03S199505-199610

main71095-37120-B0iBU202,212,222..03S199505-199906

BLUISH GRAY,TRIM1#

main71095-37130-B0iBU202,212,222..03S199505-199610

main71095-37140-B0iBU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main71095-37150-B0iBU202,212,222..03S..20T199610-199906

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37160-B0iBU10#,112,12#,13#,14#,202,212,222,RZU100,140199505-200005

BLUISH GRAY,TRIM1#

main71071-37240-B0iBU10#,112,RZU100..DMP199505-199610

main71071-37250-B0iBU162,172,182,XZU130,140199505-199906

BLUISH GRAY,TRIM1#

main71071-37260-B0iBU162..02S;BU172..IV4199610-199905

main71071-37270-B0iBU10#,112,132,14#,202,212,222,RZU100..03S199505-199610

main71071-37280-B0iBU162,172,182,XZU130..02S,03S199505-199610

main71071-37281-B2iBU162,172,182,XZU130,140..02S,03S199610-199906

main71071-37450-B0iBU100,102,112,132,140,142,202,212,222,RZU100,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main71071-37460-B0iBU100;BU102,142..T3199905-199906

main71071-37470-B0iBU120;BU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,DM6,T3,T5;BU100,112,122,140,202,212,222,297,RZU100,140..03S,05S199610-200005

main71071-37480-B0iBU162,172,182,XZU130,140..02S,03S199610-199906

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-37160-B0iBU202,212,222..03S199505-199906

main71072-37400-B0iBU10#,112,12#,13#,14#,RZU100,140199505-200005

BLUISH GRAY,TRIM1#

main71072-37410-B0iBU10#,112,RZU100..DMP199505-199610

main71072-37420-B0iBU10#,112,13#,14#,RZU100,140..TR..03S199505-200005

main71072-37430-B0iBU100,102,RZU100..DM6199505-200005

main71072-37440-B0iBU162,172,182,XZU130,140199505-199906

BLUISH GRAY,TRIM1#

main71072-37450-B0iBU162..02S;BU172..IV4199610-199905

main71072-37460-B0iBU10#,112,132,14#,RZU100..03S199505-199610

main71072-37470-B0iBU162,172,182,XZU130..02S,03S199505-199610

main71072-37471-B2iXZU130,140;BU172,182..T4199610-199905

main71072-37480-B0iBU202,212,222,297199505-199906

BLUISH GRAY,TRIM1#

main71072-37490-B0iBU202,212,222..03S199505-199610

main71072-37560-B0iBU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main71072-37570-B0iBU202,212,222..03S..20T199610-199906

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-37280-B0iBU102,132,142..(T2,T4)..20T; BU120;BU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..03S..20T;BU102,132..DM2,DM3,DM5,DM6,T3,T5,TL4;BU100,105,107,112,122,137,140,145,147,202,222,RZU100,140..03S199610-200005

main71073-37290-B0iBU10#,112,RZU100..DMP199505-199610

main71073-37300-B0iBU162,172,182,XZU130,140..02S,03S199505-199906

main71073-37301-B0iBU162,172,182,XZU130,140..02S,03S199610-199906

BLUISH GRAY,TRIM1#

main71073-37310-B0iBU162..02S199505-199610

main71073-37320-B0iRZU100..T2..IV3199505-199610

main71073-37330-B0iBU12#;BU10#,142,212,RZU100..06S,07S199505-199610

BLUISH GRAY,TRIM1#

main71073-37350-B0iBU102..IV4199610-199905

main71073-37380-B0iBU172..05S199505-199610

BLUISH GRAY,TRIM1#

main71073-37420-B0iBU172..05S199610-199905

BLUISH GRAY,TRIM1#

main71073-37430-B1iBU172..IV4199610-199905

main71073-37460-B0iBU120;BU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..T4..IV3..5F;BU212..03S..CBU..5F;BU212..03S..(4FC,6F);BU212..T3..TD..IV3..5F;BU102,132..DM2,DM3,DM5,DM6,T3,T5,TL4;BU100,105,107,112,122,137,140,145,147,202,222,RZU100,140..03S199610-200005

main71073-37470-B0iBU100,102,112,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main71073-37480-B0iBU102..IV4;BU100,105,107,147,212,RZU100..06S,07S199610-200005

BLUISH GRAY,TRIM1#

main71073-37490-B0iBU100;BU102,142..T3199905-199906

main71073-37500-B0iBU120;BU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,DM6,T3,T5;BU100,112,122,140,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S199610-200005

main71073-37510-B0iBU100,102,112,RZU100..DMP199610-200005

main71073-37520-B0iBU162..02S199610-199905

main71073-37550-B0iBU297199701-199905

BLUISH GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-37280-B0iBU212,222..03S..6F199708-199906

main71073-37340-B0iBU102..IV4199610-199905

main71073-37370-B0iBU212,297..TW1,TW4199505-199905

BLUISH GRAY,TRIM1#

main71074-37480-B0iBU120;BU10#,112,122,13#,14#,RZU100,140..03S199505-200005

BLUISH GRAY,TRIM1#

main71074-37490-B0iBU100,102,112,RZU100..DMP199505-200005

main71074-37500-B0iBU162,172,182,XZU130,140..02S,03S199505-199906

BLUISH GRAY,TRIM1#

main71074-37510-B0iBU162..02S199505-199905

main71074-37520-B0iBU10#,112,132,14#,RZU100..03S199505-199610

main71074-37530-B0iBU162,172,182,XZU130..02S,03S199505-199610

main71074-37531-B2iBU162;BU172,182..T3199610-199906

main71074-37540-B0iBU172..IV4199610-199905

main71074-37550-B0iBU10#,142,147,RZU100..06S199505-200005

BLUISH GRAY,TRIM1#

main71074-37560-B0iBU202,212,222..03S199505-199906

BLUISH GRAY,TRIM1#

main71074-37570-B0iBU202,212,222..03S199505-199610

main71074-37590-B0iBU172..05S199505-199905

BLUISH GRAY,TRIM1#

main71074-37600-B0iBU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main71074-37610-B0iBU202,212,222..03S..20T199610-199906

71305SFRAME SUB-ASSY, CENTER SEATBACK

main71305-95400-01iBU120;BU132..T3,T4;BU10#,112,122,137,14#,RZU100..03S199505-199703

BLACK,TRIM1#

main71305-95401-01iBU202,212,222..03S199505

BLACK,TRIM1#

71319ASTRIKER, FRONT SEATBACK

main71319-92602iBU212,297..TW1,TW4199505-199905

main71319-95402×2iBU10#,112,13#,14#,RZU100,140..TR..03S; BU120;BU10#,112,122,13#,14#,RZU100,140..03S199505

main71319-95403×2iBU202,212,222..03S199505

main71319-95404iBU10#,142,147,RZU100..06S199505

71350SBACK ASSY, FRONT SEAT, CENTER

main71350-37090-B0iBU120;BU10#,112,122,13#,14#,RZU100,140..03S199505-200005

***,BLUISH GRAY,TRIM1#

main71350-37100-B0iBU100,102,112,RZU100..DMP199505-200005

main71350-37110-B0iBU10#,112,132,14#,RZU100..03S199505-199610

main71350-37120-B0iBU202,212,222..03S199505-199906

***,BLUISH GRAY,TRIM1#

main71350-37130-B0iBU202,212,222..03S199505-199610

main71350-37140-B0iBU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main71350-37150-B0iBU202,212,222..03S..20T199610-199906

71365SPAD, CENTER SEATBACK

main71365-95400iBU120;BU10#,112,122,13#,14#,RZU100,140..03S199505-200005

main71552-95408iBU202,212,222..03S199505-199610

71373BCOVER, FRONT SEATBACK LOCK

main71373-95400-B0iRZU100..06S199906-200005

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-37270-B0iBU10#,112,12#,13#,14#,202,212,222,RZU100,140199505-200005

***,BLUISH GRAY,TRIM1#

main71410-37280-B0iBU100,112,RZU100..DMP;BU102..DM2,DM3,DM5,DM6,TW1199610-200005

main71410-37290-B0iBU162,172,182,XZU130,140199505-199906

***,BLUISH GRAY,TRIM1#

main71410-37300-B0iBU162..02S;BU172..IV4199610-199905

main71410-37310-B0iBU10#,112,132,14#,202,212,222,RZU100..03S199505-199610

main71410-37320-B0iBU162,172,182,XZU130..02S,03S199505-199610

main71410-37321-B2iBU162,172,182..02S,03S199610-199906

main71410-37340-B0iBU212,222..03S..6F199708-199906

main71410-37500-B0iBU100,102,112,132,140,142,202,212,222,RZU100,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main71410-37510-B0iBU100;BU102,142..T3199905-199906

main71410-37520-B0iBU120;BU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,DM6,T3,T5;BU100,112,122,140,202,212,222,297,RZU100,140..03S,05S199610-200005

main71410-37540-B0iBU162,172,182,XZU130,140..02S,03S199610-199906

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-37340-B0iBU202,212,222..03S199505-199906

main71420-37400-B0iBU10#,112,12#,13#,14#,RZU100,140199505-200005

***,BLUISH GRAY,TRIM1#

main71420-37410-B0iBU100,112,RZU100..DMP;BU102..DM2,DM3,DM5,DM6,TW1199610-200005

main71420-37420-B0iBU132..IV3;BU132..CBU..5F;BU102..20T..4FC;BU107,147..T2,T4;BU102,137..T4..20T..5F;BU102..(T2,T3,T5)..DSL..5F;RZU100..TR..03S..(EFI,LPG);BU100,112,140,142..TR..03S..(4FC,5F)199505-200005

main71420-37430-B0iBU100,102,RZU100..DM6199505-200005

main71420-37440-B0iBU162,172,182,XZU130,140199505-199906

***,BLUISH GRAY,TRIM1#

main71420-37450-B0iBU162..02S;BU172..IV4199610-199905

main71420-37460-B0iBU10#,112,132,14#,RZU100..03S199505-199610

main71420-37470-B0iBU162,172,182,XZU130..02S,03S199505-199610

main71420-37471-B2iBU162,172,182,XZU140..02S,03S199610-199906

main71420-37480-B0iBU202,212,222,297199505-199906

***,BLUISH GRAY,TRIM1#

main71420-37490-B0iBU202,212,222..03S199505-199610

main71420-37560-B0iBU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main71420-37570-B0iBU202,212,222..03S..20T199610-199906

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-37310-B0iBU10#,112,132,14#,202,212,222,RZU100..03S199505-199610

***,BLUISH GRAY,TRIM1#

main71430-37320-B0iBU10#,112,RZU100..DMP199505-199610

main71430-37321-B0iBU100,102,112,RZU100..DMP199610-200005

main71430-37330-B0iBU162,172,182,XZU130..02S,03S199505-199610

***,BLUISH GRAY,TRIM1#

main71430-37331-B0iBU162,172,182,XZU130,140..02S,03S199610-199906

***,BLUISH GRAY,TRIM1#

main71430-37340-B0iBU162..02S199505-199610

main71430-37350-B0iBU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S199505-199610

main71430-37370-B0iBU120;BU212..03S..20T;BU10#,112,122,13#,14#,202,222,RZU100,140..03S199610-200005

***,BLUISH GRAY,TRIM1#

main71430-37390-B0iBU100,107,147,212,RZU100..(06S,07S)..5F199610-200005

main71430-37440-B0iBU102..IV4199610-199905

main71430-37450-B0iBU172..05S199505-199610

***,BLUISH GRAY,TRIM1#

main71430-37470-B0iBU172..05S199610-199905

***,BLUISH GRAY,TRIM1#

main71430-37510-B0iBU172..05S199610-199905

main71430-37520-B0iBU172..IV4199610-199905

main71430-37550-B0iBU120;BU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,DM6,T3,T5,TL4;BU100,105,107,112,122,137,140,145,147,202,212,222,RZU100,140..03S199610-200005

main71430-37560-B0iBU100,102,112,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main71430-37570-B0iBU102..IV4;BU100,105,107,147,212,RZU100..06S,07S199610-200005

***,BLUISH GRAY,TRIM1#

main71430-37590-B0iBU100;BU102,142..T3199905-199906

main71430-37600-B0iBU120;BU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,DM6,T3,T5;BU100,112,122,140,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S199610-200005

main71430-37610-B0iBU162,172,182,XZU130,140..02S,03S199610-199906

main71430-37620-B0iBU162..02S199610-199905

main71430-37640-B0iBU297199701-199905

***,BLUISH GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-37370-B0iBU202,212,222..03S199505-199906

main71430-37600-B0iBU202,212,222..03S199802-199906

main71440-37540-B0iBU120;BU10#,112,122,13#,14#,RZU100,140..03S199505-200005

***,BLUISH GRAY,TRIM1#

main71440-37550-B0iBU100,102,112,RZU100..DMP199505-200005

main71440-37560-B0iBU162,172,182,XZU130,140..02S,03S199505-199906

***,BLUISH GRAY,TRIM1#

main71440-37570-B0iBU162..02S199505-199905

main71440-37580-B0iBU10#,112,132,14#,RZU100..03S199505-199610

main71440-37590-B0iBU162,172,182,XZU130..02S,03S199505-199610

main71440-37591-B2iXZU130,140;BU172,182..T4199610-199905

main71440-37600-B0iBU102..IV4199610-199905

main71440-37620-B0iBU10#,142,147,RZU100..06S199505-200005

***,BLUISH GRAY,TRIM1#

main71440-37630-B0iBU202,212,222..03S199505-199906

***,BLUISH GRAY,TRIM1#

main71440-37640-B0iBU202,212,222..03S199505-199610

main71440-37670-B0iBU172..05S199505-199905

***,BLUISH GRAY,TRIM1#

main71440-37680-B0iBU212,297..TW1,TW4199505-199905

***,BLUISH GRAY,TRIM1#

main71440-37720-B0iBU172..IV4199610-199905

main71440-37730-B0iBU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

main71440-37740-B0iBU202,212,222..03S..20T199610-199906

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-37020iBU102..T3..WT..20T;BU142..T3..DSL..IV3..5F;BU100,RZU100..T4..(DSL,LPG)..IV3199610-200005

main71511-37030iBU162,172,182,XZU130,140199505-199906

main71511-37040iBU102,132,142..(T2,T4)..20T199610-199906

main71511-37050iXZU140;BU172,182..T4199708-199905

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-37020iBU10#,112,12#,13#,14#,RZU100,140199505-200005

main71502-37030iBU10#,112,13#,14#,RZU100,140..TR..03S199505-200005

main71502-37040iRZU100..20T..LPGB199905-200005

main71502-37050iBU202,212,222,297199505-199906

main71511-37020iBU202,212,222..03S199505-199906

main71512-37090iBU162,172,182,XZU130,140199505-199906

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-37040iBU100,107,147,212,RZU100..(06S,07S)..5F; BU120;BU212..03S..20T;BU10#,112,122,13#,14#,202,222,RZU100,140..03S199610-200005

main71551-37050iBU162,172,182,XZU130199505-199610

main71551-37051iBU162,172,182,XZU130,140199610-199906

main71551-37060iBU132..T3..IV3;BU132..CBU..5F;BU142..T3..(4FC,5F);BU102..(DM2,DM3,DM5,T3)..DSL..5F;BU100,112,140,RZU100,XZU130..(DM7,DM8,T1,T2,T3,T4)..(DSL,EFI,LPG); BU172..T4;RZU100..DM5;RZU100..LPGB;BU102..T3..4FC;BU102..T4..30T;BU132..CBU..4FC;BU102..(DM6,T3)..LPGB;BU182,297,RZU140..T4,TW1;BU142,XZU140..MTM..30T..DSL199802-200005

main71551-37070iBU212..20T;BU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,DM6,T3,T5,TL4,TW1;BU100,105,107,112,12#,137,140,145,147,202,222,RZU100,140..DSL,EFI,LPG,TD; RZU100..LPGB;BU142..T3..DSL..IV3..5F;BU100,107..(DM6,T4)..IV3;BU102..(DM6,T3)..WT..20T..DSL;BU137,147,RZU100..(T2,T4)..(DSL,LPG)..IV3..5F;BU132,212,RZU100..(ALV,DM6,TL4)..(DSL,EFI,LPG)199610-200005

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-37040iBU202,212,222..03S199505-199906

main71552-37010iBU162,172,182,XZU130,140199505-199906

main71552-95403iBU10#,142,147,RZU100..06S199505-200005

main71552-95405iBU212,297..TW1,TW4199505-199905

main71552-95407iBU120;BU10#,112,122,13#,14#,RZU100,140..03S199505-200005

main71552-95408iBU202,212,222..03S199505-199610

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-95J00×2iBU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S199505-199610

71709BCUSHION SUB-ASSY, SEAT SUPPORT

main71709-95402iBU202,212,222..03S199505

71811CCOVER, RECLINING ADJUSTER, RH

main71811-95J00-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

BLUISH GRAY,TRIM1#

71815ACOVER, FRONT SEAT CUSHION HINGE, RH

main71815-95J00-B0iBU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130199505-199610

GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-26020-B1iBU12#;BU10#,142,147,RZU100..06S199505-200005

GRAY,TRIM1#

main71910-37080-B2iRZU100..DM6;BU100,102..DM6..DSL199505-200005

BLUISH GRAY,TRIM1#

main71910-37090-B0iBU10#,112,13#,14#,RZU100,140..03S199505-200005

main71910-37100-J0iBU10#,112,132,14#,RZU100..03S199505-199610

main71910-37101-J1iBU142..6F;BU137..4FC;RZU100..DM5;BU107,147..T3;BU102..T4..30T;BU102..T3..4FC;BU132..CBU..4FC;BU102..T3..LPGB;RZU100..30T..LPGB;BU105,145,RZU140..03S199708-200005

DK. BLUE,TRIM1#

main71910-37110-B0iBU100,102,112,RZU100..DMP; BU100,102..DM6;RZU100..DM6..(EFI,LPG)199505-200005

main71910-37120-B0iBU202,212,222..03S199505-199906

BLUISH GRAY,TRIM1#

main71910-37130-J0iBU202,212,222..03S199505-199610

main71910-37131-J1iBU202,212,222..03S..20T199610-199906

main71910-92600-B0iBU212,297..TW1,TW4199505-199905

BLUISH GRAY,TRIM1#

72090LOCK ASSY, FRONT SEATBACK

main72090-95400-B0iBU212..06S,07S;BU10#,112,13#,14#,297,RZU100,140..TR199505-199906

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-37010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-37010-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

BLUISH GRAY,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-95J01-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

BLUISH GRAY,TRIM1#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-37010iBU10#,112,12#,132,14#,202,212,222,RZU100; BU10#,RZU100..DM6199505-199610

main72750-37030iBU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S199505-199610

main72750-37040iBU162,172,182,XZU130199505-199610

72791LEVER, LUMBAR SUPPORT

main72791-20030-B0iBU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130199505-199610

GRAY,TRIM1#

9011906214

main90119-06214

9011908079

main90119-08079

9011908134

main90119-08134

9011908469

main90119-08469

9011910116

main90119-10116

9011910185

main90119-10185

9016840043

main90168-40043

9017908039

main90179-08039

9017910073

main90179-10073

9018304048

main90183-04048

9033320001

main90333-20001

9038612041

main90386-12041

9052001274

main90520-01274

9052308001

main90523-08001

9053018003

main90530-18003

9054006006

main90540-06006

9054006007

main90540-06007

9054014003

main90540-14003

9161161020

main91611-61020

9166260614

main91662-60614

9321056020

main93210-56020

9356015016

main93560-15016

56 parts on this diagram · 12 diagrams in section
