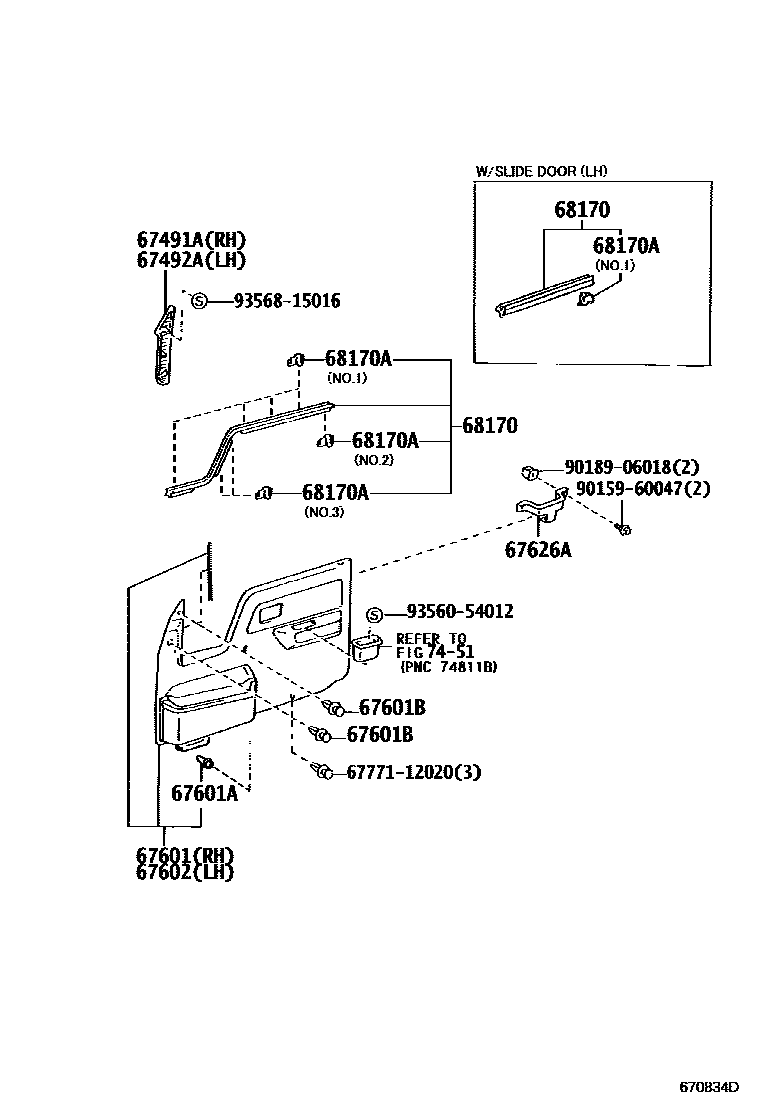

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-37010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

sub67491-95400

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-37010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

sub67492-95400

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-37010-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

GRAY,TRIM1#

main67610-95416-B0iBU100,102,RZU100..DM6199505-200005

main67610-95417-B1iBU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S199505-199610

sub67610-95417

main67610-95417-B2iBU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-200005

sub67610-95417

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iBU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199802-199803

main67771-12050iBU100,102,RZU100..DM6199802

main67771-30060iBU100,102,RZU100..DM6199505-199802

main67771-30060iBU297199802-199803

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-06017-B0iBU100,102,RZU100..DM6199505-200005

sub90467-06017

main90467-06017-B0iBU100,102,RZU100..DM6199505-200005

GRAY,TRIM1#

sub90467-06017

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-37010-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

GRAY,TRIM1#

main67620-95416-B0iBU100,102,RZU100..DM6199505

sub67620-95416

main67620-95423-B1iBU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S199505-199610

sub67620-95423

main67620-95423-B2iRZU100..(DM5,T2,T3,T4)..(EFI,LPG);BU10#,112,13#,14#,162,172,182,202,212,222,RZU140,XZU130,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610

sub67620-95423

main67620-95423-B2iRZU100..30T..LPGB199905

BLUISH GRAY,TRIM1#

sub67620-95423

67626ABRACKET, DOOR TRIM, NO.2

main67626-95400iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95409iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

main68172-95403iBU100,102,RZU100..DM6199505

main68172-95406iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

main68211-12080iBU100,102,RZU100..DM6199505

main68211-95401iBU100,102,RZU100..DM6199505

main68211-95401iBU100,102,RZU100..DM6199505

main68211-95402iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

main68212-95400iBU100,102,RZU100..DM6199505

main68212-95400iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

7451

6777112020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12020

9015960047

main90159-60047

9018906018

main90189-06018

9356054012

main93560-54012

9356815016

main93568-15016

15 parts on this diagram · 3 diagrams in section
