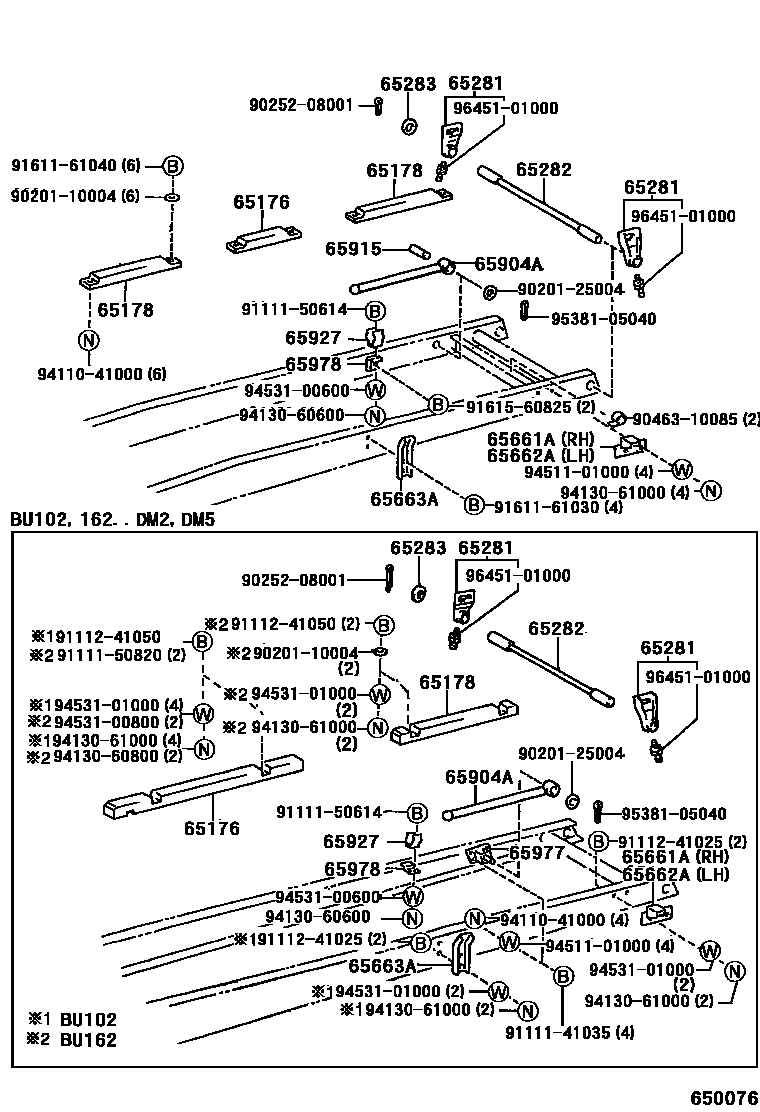

REAR BODY SUB FRAME

0001 1 0002 1 0003 1 0004 1

65176SILL, BESSEL RAIL, FRONT

main65176-93100×2iBU112..DMP..CBU199505-199905

main65176-93101iBU102,RZU100..(DM2,DM5)..CBU199505

main65176-93102×2iBU162..02S..CBU199505-199905

main65176-93300×2iBU102..DM3199505-199807

main65176-93301×4iBU102..DM3199807-199905

main65177-93100iBU102,RZU100..(DM2,DM5)..CBU199505

65178SILL, BESSEL RAIL, REAR

main65178-93100×6iXZU130..CBU199510-199905

main65178-93101iBU102,RZU100..(DM2,DM5)..CBU199505

main65178-93102×2iBU162..02S..CBU199505-199905

main65179-93100iBU102,RZU100..(DM2,DM5)..CBU199505

65281BRACKET, BEZEL HINGE

main65281-93101×2iBU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU199505

main65281-93200×2iXZU130..CBU199510-199905

65282SHAFT, BEZEL HINGE

main65206-93101iBU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU199505

main65206-93200iXZU130..CBU199510-199905

main65282-93301×4iBU102..DM3199505-199807

main65282-93303×4iBU102..DM3199807-199905

65283STOPPER, BEZEL HINGE SHAFT

main65283-93102×2iBU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU199505

main65283-93200×2iXZU130..CBU199510-199905

65661AGUIDE, ROLLER, RH

main65661-93102iBU112..DMP..CBU199505-199905

main65661-93103iBU102,RZU100..(DM2,DM5)..CBU199505

main65661-93104iBU162..02S..CBU199505-199905

main65661-93301iBU102..DM3199505-199807

main65661-93302iBU102..DM3199807-199905

65662AGUIDE, ROLLER, LH

main65661-93102iBU112..DMP..CBU199505-199905

main65661-93302iBU102..DM3199807-199905

main65662-93102iBU102,RZU100..(DM2,DM5)..CBU199505

main65662-93103iBU162..02S..CBU199505-199905

main65662-93301iBU102..DM3199505-199807

65663AGUIDE, VESSEL

main65663-93100×2iBU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..20T..CBU199505

65904ABAR SUB-ASSY, VESSEL STAND

main65904-93100iBU112..DMP..CBU199505-199905

main65904-93102iBU102,162,RZU100,XZU130..(DM2,DM5,DM7)..CBU199807

main65904-93300iBU102..DM3199807-199905

65915PIN, BEZEL STAND

main65974-93100iBU102,112..(DM3,DM7,DM8)..CBU199505-199807

65927CLIP, BAR

main90468-12008×2iBU102..DM3199505-199905

65977BRACKET, VESSEL STAND

main65977-93103iBU102,162,RZU100..(DM2,DM5,DM7)..CBU199505

65978BRACKET, VESSEL STAND

main65978-93100iBU102,112..(DM3,DM7,DM8)..CBU199505-199807

main65978-93103iBU102,162,RZU100..(DM2,DM5,DM7)..CBU199505

9020110004

main90201-10004

9020125004

main90201-25004

9025208001

main90252-08001

9046310085

main90463-10085

9111141035

main91111-41035

9111150614

main91111-50614

9111150820

main91111-50820

9111241025

main91112-41025

9111241050

main91112-41050

9161161030

main91611-61030

9161161040

main91611-61040

9161560825

main91615-60825

9411041000

main94110-41000

9413060600

main94130-60600

9413060800

main94130-60800

9413061000

main94130-61000

9451101000

main94511-01000

9453100600

main94531-00600

9453100800

main94531-00800

9453101000

main94531-01000

9538105040

main95381-05040

9645101000

main96451-01000

35 parts on this diagram · 4 diagrams in section
