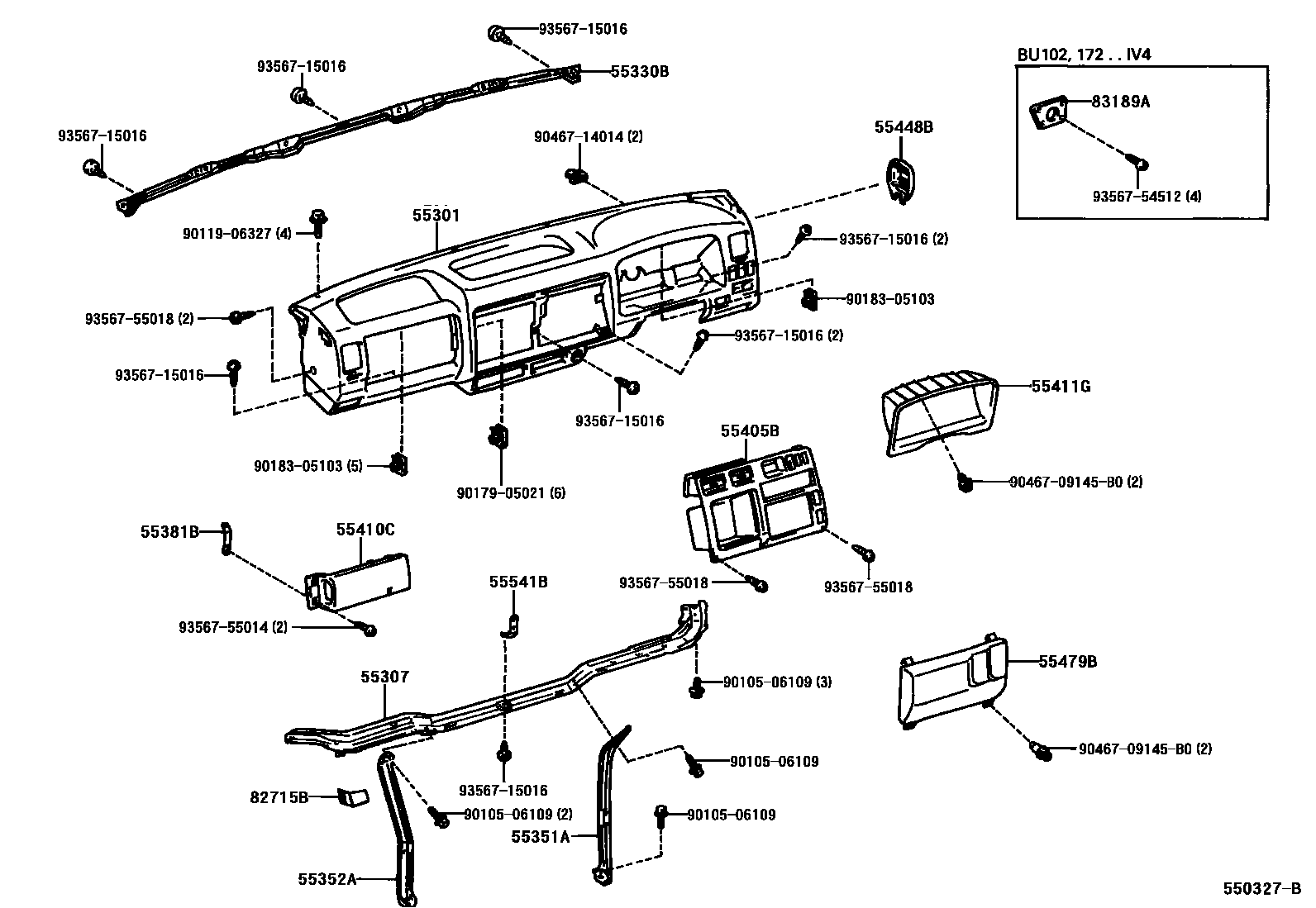

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-37020-B0iBU10#,112,12#,13#,14#,162,172,182,RZU100,XZU130..CBU,IV3199505-199708

BLUISH GRAY,TRIM1#

main55311-37021-B0iBU10#,112,120,13#,14#,162,172,182,RZU100,140,XZU130,140..CBU,IV3199708-200005

BLUISH GRAY,TRIM1#

main55311-37040-B0iBU202,212,222,297199505-199708

BLUISH GRAY,TRIM1#

main55311-37041-B0iBU202,212,222,297199708-199906

BLUISH GRAY,TRIM1#

main55311-37060-B0iBU102,172..IV4199507-199708

BLUISH GRAY,TRIM1#

main55311-37061-B0iBU102,172..IV4199708-199905

BLUISH GRAY,TRIM1#

main55311-37080-B0iBU297199701-199708

main55311-37081-B0iBU297199708-199905

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-37010iBU10#,112,13#,14#,162,172,182,RZU100..(02S,03S,06S)..(CBU,IV3)199703-199708

main55307-37030iBU202,212,222,297199505-199703

main55307-37050iRZU100,140199906

main55307-37060iBU202,212,222199703-199906

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-25010iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505-199906

main55330-37010iBU202,212,222,297199505-199906

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-37010iBU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130199505-199605

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-37010iBU10#,112,12#,132,14#,162,172,182,RZU100,XZU130199505-199605

main55352-37020iBU202,212,222,297199505-199906

main55352-37030iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199610-199906

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-37010iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505-199906

main55381-37020iBU202,212,222,297199505-199906

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-37010-C0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

BLACK,TRIM1#

main55405-37020-C0iBU10#,112,12#,132,14#,162,172,182,202,212,222,XZU130..CBU,IV3199505-199610

main55405-37110iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,T3,T5;BU100,105,107,112,137,140,145,147,162,172,182,202,212,222,RZU100,140,XZU130,140..DM5,DM7,DM8,T1,T2,T3,T4199610-200005

main55405-37120iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,T3,T5;BU100,105,107,112,137,140,145,147,162,172,182,202,212,222,RZU100,140,XZU130,140..DM5,DM7,DM8,T1,T2,T3,T4199610-200005

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-37010-B0iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505-200005

BLUISH GRAY,TRIM1#

main55410-37030-B0iBU202,212,222,297199505-199906

BLUISH GRAY,TRIM1#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-37010-C0iBU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,XZU130199505-199703

BLACK,TRIM1#

main55411-37020-C0iBU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199708-200005

BLACK,TRIM1#

55448BCOVER, OIL RESERVOIR TANK, RH

main55448-37010-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

BLUISH GRAY,TRIM1#

55479BCOVER, INSTRUMENT, LOWER CENTER

main55479-37010-B0iBU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140199505-200005

BLUISH GRAY,TRIM1#

main55479-37020-B0iBU202,212,222,297199505-199906

BLUISH GRAY,TRIM1#

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-37010iBU297,RZU100;BU10#,112,13#,14#,162,172,182,202,212,222..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW2,TW4)..(02S,03S,06S)199703-199708

main55541-37020iBU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199703-199906

82715BBRACKET, WIRING HARNESS CLAMP

main82715-37670×2iBU10#,112,12#,13#,14#,162,172,182,RZU100,XZU130199703-199708

main82715-37671iBU10#,112,120,13#,14#,162,172,182,RZU100,140,XZU130,140199708-199906

main82715-37710iBU202,212,222,297199708-199906

83189ABRACKET, METER

main83189-37010iBU102,172..IV4199507-199905

9010506109

main90105-06109

9011906327

main90119-06327

9017905021

main90179-05021

9018305103

main90183-05103

9046709145B0

main90467-09145B0

9046714014

main90467-14014

9356715016

main93567-15016

9356754512

main93567-54512

9356755014

main93567-55014

9356755018

main93567-55018

24 parts on this diagram · 3 diagrams in section
