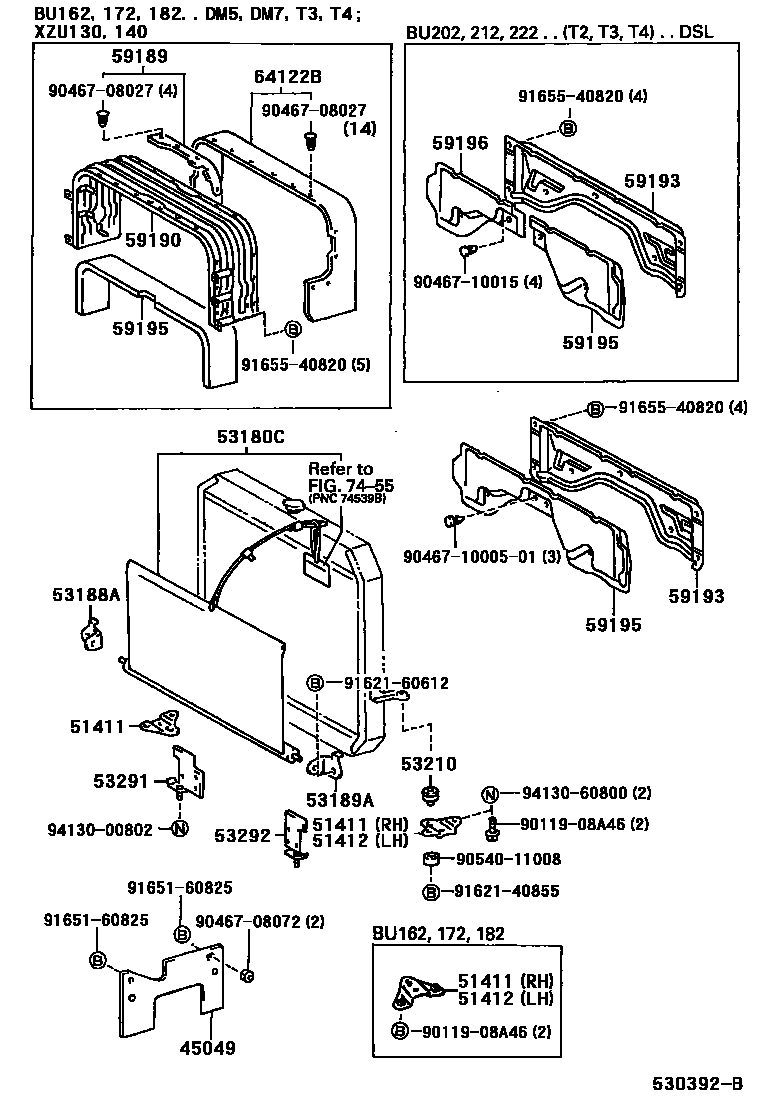

RADIATOR SUPPORT & WIND GUIDE

0001 1 0002 1

45049PROTECTOR SUB-ASSY, STEERING LINK

main45049-36011iBU162,172,182199505-199906

51411BRACKET, RADIATOR SUPPORT, RH

main51411-36080iBU112199505-199905

main51411-36090iBU100,102,12#,132,140,142,RZU100,140,XZU130,140199505

main51411-37020iBU202,212,222199505

main51411-37030iBU162,172,182199505

main51411-37050iBU297199701-199905

51412BRACKET, RADIATOR SUPPORT, LH

main51412-36080iBU112199505-199905

main51412-36090iBU100,102,12#,132,140,142,RZU100,140,XZU130,140199505

main51412-37020iBU202,212,222199505

main51412-37030iBU162,172,182199505

main51412-37050iBU297199701-199905

53180CSHUTTER ASSY, RADIATOR

main53180-37010iBU12#199505-199905

main53180-37020iBU202,212,222..MTM..DSL199505

main53180-65010iBU297199701-199905

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-37010iBU12#199505-199905

main53188-65010iBU297199701-199905

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-37010iBU12#199505-199905

53210SUPPORT ASSY, RADIATOR

main53210-36010×2iBU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140199505

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-36040iBU202,212,222199505-199906

main53291-36050iRZU100..LPGB199906

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-36060iBU10#,12#,132,14#,202,212,222,XZU130..DSL,TD199608-199610

main53292-36061iRZU100..LPGB199906

main53292-36070iBU202,212,222199505-199608

59189COVER, NOISE SHUTTER SIDE

main59189-37020iBU162,172,182..02S,03S199505

59190GUARD ASSY, NOISE SHUTTER

main59190-37010iBU162,172,182..02S,03S199505

main59190-37030iXZU130,140199510-199905

59193GUARD, NOISE SHUTTER

main59193-37020iBU202,212,222..03S..DSL199708

main59193-37040iBU10#,112,13#,14#..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5199505-199704

main59193-37041iBU10#,112,13#,14#,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..(DSL,LPGB)199704

main59193-37050iBU202,212,222..03S..DSL199505-199704

main59193-37051iBU202,212,222..03S..DSL199704

59195INSULATOR, NOISE SHUTTER

main59195-37030iBU10#,112,13#,14#..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5199505-199704

main59195-37031iBU10#,112,13#,14#,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..(DSL,LPGB)199704

main59195-37040iBU202,212,222..03S..DSL199505

main59195-37050iXZU130,140199510-199905

main59195-95404iBU162,172,182..02S,03S199505

59196SEAL, NOISE SHUTTER, UPPER NO.1

main59196-37020iBU202,212,222..03S..DSL199708

main59196-37030iBU202,212,222..03S..DSL199505-199704

main59196-37031iBU202,212,222..03S..DSL199704

64122BPLATE, BAFFLE DUST REAR BODY

main64122-37020iBU162,172,182..02S,03S199505

main64122-37090iXZU130,140199510-199905

9011908A46

main90119-08A46

9046708027

main90467-08027

9046708072

main90467-08072

904671000501

main90467-1000501

9046710015

main90467-10015

9054011008

main90540-11008

9162140855

main91621-40855

9162160612

main91621-60612

9165160825

main91651-60825

9165540820

main91655-40820

9413000802

main94130-00802

9413060800

main94130-60800

27 parts on this diagram · 2 diagrams in section
