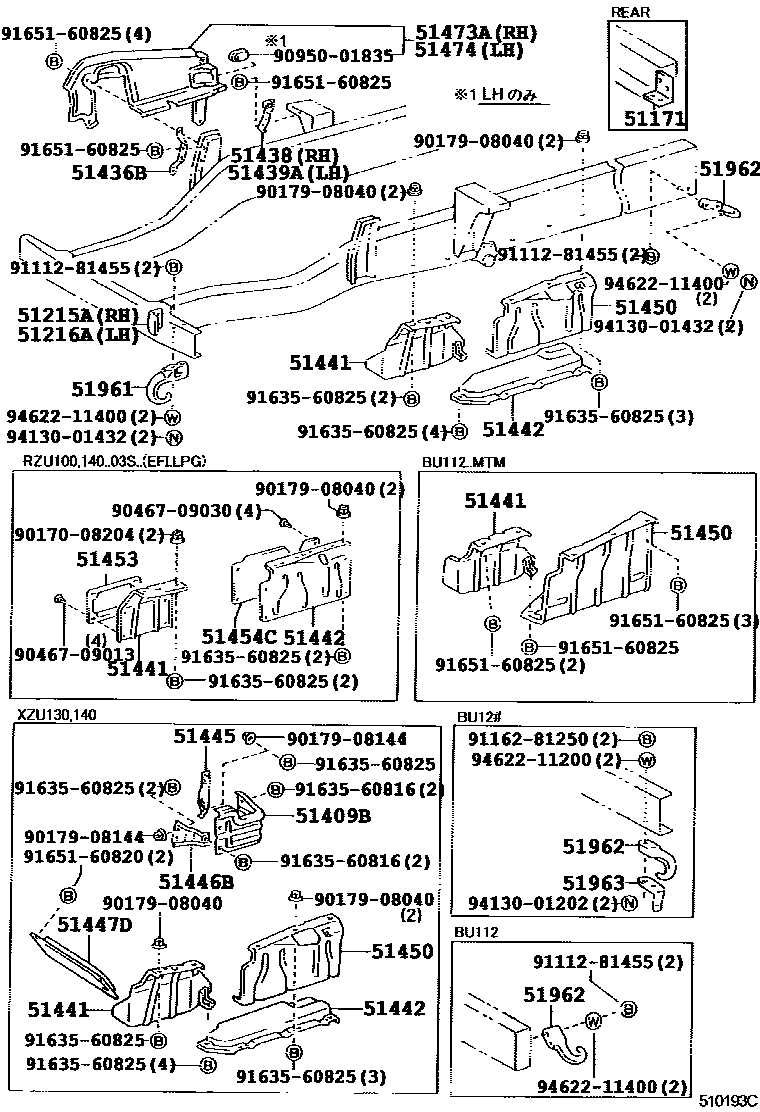

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1TECS=��-��� 0005 1 0006 1

51171REINFORCEMENT, SIDE RAIL REAR HOOK

main51171-36060iBU100,102,12#..ST199505-199905

main51171-36070iBU10#,RZU100..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT199505

main51171-36100iBU162..03S..CBU199505-199905

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-36040iBU112199505-199905

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51215-36040iBU112199505-199905

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-37010iXZU130,140199510-199905

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-37010×2iBU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140199505-199906

main51436-37020×2iBU162,172,182199505-199906

main51436-37030iBU202,212,222199505-199906

main51436-37060×2iBU297199701-199905

51438BRACKET, ENGINE SIDE COVER, NO.2 RH

main51438-37010iBU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,RZU100,140,XZU130,140..02S,03S,06S199505-199906

main51438-37020iBU172..05S199505-199905

main51438-37040×2iBU202,212,222199505-199906

main51438-37050×2iBU297199701-199905

51439ABRACKET, ENGINE SIDE COVER, NO.2 LH

main51439-37010iBU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,RZU100,140,XZU130,140..02S,03S,06S199505-199906

main51439-37020iBU172..05S199505-199905

main51439-37050×2iBU297199701-199905

51441COVER, ENGINE UNDER, NO.1

main51405-65010iBU297199701-199905

main51407-36050iRZU100,140..03S..(EFI,LPG)199505

main51407-37010iBU102,132,142,XZU130..DSL..5F199505-199610

main51407-37020iBU112..5F199505-199905

main51407-37040iBU102,107,13#,142,147,XZU130,140..MTM..DSL199610-199906

51442COVER, ENGINE UNDER, NO.2

main51405-37010iBU102,107,13#,142,147,XZU130,140..MTM..(02S,03S)..DSL199505-199906

main51443-36023iRZU100,140..03S..(EFI,LPG)199505

51445BRACKET, ENGINE UNDER COVER

main51445-37050iXZU130,140199510-199905

51446BBRACKET, ENGINE UNDER COVER, NO.2

main51446-37050iXZU130,140199510-199905

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-37010iXZU130,140199510-199905

51450COVER ASSY, ENGINE UNDER, REAR

main51406-37020iBU112..5F199505-199905

main51406-37030iBU102,132,142,XZU130,140..MTM..(02S,03S)..DSL199505-199906

51453SILENCER, ENGINE UNDER COVER, FRONT

main51453-36020iRZU100,140..03S..(EFI,LPG)199505

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-36011iRZU100,140..03S..(EFI,LPG)199505

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51043-37010iBU10#,112,12#,132,14#,RZU100,XZU130199505-199610

main51043-37020iBU162,172,182..02S,03S199505-199906

main51043-37030iBU172..05S199505-199905

main51043-37050iBU202,212,222199505-199906

main51043-37060iBU105,107,137,145,147199610-199905

main51043-37070iBU297199701-199905

main51043-37080iBU132..T3,T4;BU100,102,112,12#,140,142,RZU100,XZU130199610-199708

main51043-37081iRZU100,140199906

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51044-37020iBU162,172,182..02S,03S199505-199906

main51044-37030iBU172..05S199505-199905

main51044-37050iBU202,212,222199505-199906

main51044-37070iBU297199701-199905

main51470-37010iBU10#,112,12#,132,14#,RZU100,XZU130199505-199610

main51470-37030iBU105,107,137,145,147199610-199905

main51470-37040iBU132..T3,T4;BU100,102,112,12#,140,142,RZU100,XZU130199610-199708

main51470-37041iBU132..T3,T4;BU100,102,112,120,140,142,RZU100,140,XZU130,140199708-199906

51961HOOK, NO.1

main51961-36020iBU132..TL4199702-199905

main51961-36030iBU202,212,222199505-199906

main51961-36040iRZU100,140199906

main51961-37010iBU142..T3..20T..CBU..5F199505-199905

main51961-37020iBU212..T3..MTM..DSL..CBU199505-199905

main51962-37010iBU142..T3..20T..CBU..5F199505-199905

main51962-37020iBU212..T3..MTM..DSL..CBU199505-199905

51962HOOK, NO.2

main51961-36020iRZU140199906

main51961-36040iBU182..T3..IV3;BU10#,112,13#,162,172,RZU100,XZU130199505-199906

main51961-60010iBU12#199505-199905

51963STOPPER, HOOK WIRE

main51963-35010iBU12#199505-199905

9017008204

main90170-08204

9017908040

main90179-08040

9017908144

main90179-08144

9046709013

main90467-09013

9046709030

main90467-09030

9095001835

main90950-01835

9111281455

main91112-81455

9116281250

main91162-81250

9163560816

main91635-60816

9163560825

main91635-60825

9165160820

main91651-60820

9165160825

main91651-60825

9413001202

main94130-01202

9413001432

main94130-01432

9462211200

main94622-11200

9462211400

main94622-11400

36 parts on this diagram · 6 diagrams in section
