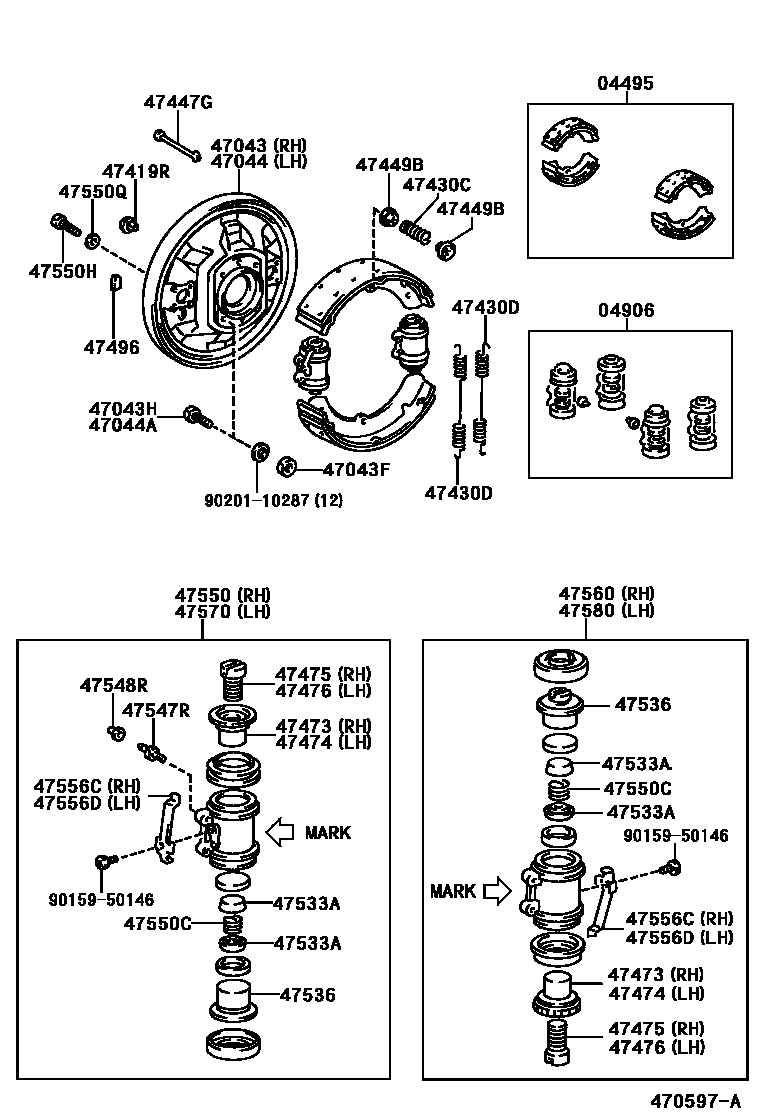

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1��(�-�������) 0005 1��(���� ����� ���-�:�� �-� ��

04495SHOE KIT, REAR BRAKE

main04494-36150iBU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T199505

main04494-36160iBU100,102,12#..ST199505-199905

main04494-36190iBU202,212,222..T3,T4,TW4;BU10#,112,132,14#,162,172,182,RZU100,XZU130..(DM3,DM6,DM7,DM8,T3,T5,TW1)..WT199505-199610

main04494-36210iBU100,102..DM6; RZU100..DM6199610-199704

main04496-36080iBU100,102,12#..ST199505-199905

REBUILT

main04496-36090iBU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T199505

REBUILT

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36080iBU100,102,12#..ST199505-199905

main04906-36170iBU100,102,RZU100..T3..WT..20T..IV3; BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG)199505-200005

MARK = L 28.5,R 28.5

main04906-36180iBU142..6F;BU102..T3..4FC;BU102..T4..30T;BU112..DM7..4FC;BU132,222..4FC,6F;BU142..T3..20T..4FC;BU212..T3..DSL..IV3;BU105,107,145,147..T3;BU212..T3..TD..IV3..6F;BU142..T3..20T..IV3..5F;BU102,142..(DM6,T3)..LPGB;BU212..(T4,TW1,TW4)..IV3..6F;BU212..(T3,T4,TW1,TW4)..CBU..(4FC,6F); BU212..30T;BU182..T3..20T..IV3; BU212..T4..IV3..4FC199505-199906

main04906-36200iBU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F199505-200005

main04906-36210iBU10#,132,142..T4..IV3..5F; BU100..T2..IV3;BU162..03S..IV3; BU102..06S;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F; BU212..T2..4FC;BU102,142..(T2,T4)..4FC199505-199507

main04906-36211iBU10#,132,142..T4..IV3..5F; BU100..T2..IV3;BU162..03S..IV3; BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F199507-199610

main04906-37030iBU112..T3..4FC199505-199905

main04906-37040iBU112,202..TR..5F;BU100,102,172,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199505-200005

MARK = L 1,R 1

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-25110iBU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T199610

main47043-36090iBU100,102,12#..ST199505-199905

main47043-36100iBU212..T2;BU10#,132,14#,162,RZU100..DM2,DM5,T2,T4,TW4199505-199610

main47043-36120iBU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT199505

main47043-36130iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10178×12iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU112,12#,202,222,XZU130,140;BU10#,132,140,145,147,162,172,182,RZU100..DM3,DM6,DM7,T1,T3,T5,TL4,TW1,TW2; BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T199505-199802

main94130-01002×12iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..ALV,T3,T4,TW1,TW4;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU112,120,202,222,RZU100,XZU130,140..DSL,LPGB,TD;BU10#,132,140,145,147,162,172,182..DM3,DM6,DM7,T1,T3,TL4,TW1,TW2199802-199908

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90114-10019×6iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU112,12#,202,222,RZU100,XZU130,140..DSL,LPGB,TD;BU172,RZU100..(DM6,T3,TW1)..(DSL,EFI,LPG)..(CBU,IV3);BU10#,132,140,145,147,162,182..DM3,DM6,DM7,T1,T3,T5,TL4,TW1,TW2; BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T199505-199907

main90114-10063×4iRZU100,140..(DM5,T2,T4,TW4)..20T; RZU100..LPGB;RZU100..(DM6,T3,TW1)..(EFI,LPG)199907

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-25080iBU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T199610

main47044-36090iBU100,102,12#..ST199505-199905

main47044-36100iBU212..T2;BU10#,132,14#,162,RZU100..DM2,DM5,T2,T4,TW4199505-199610

main47044-36120iBU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT199505

main47044-36130iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90114-10019×6iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU112,12#,202,222,RZU100,XZU130,140..DSL,LPGB,TD;BU172,RZU100..(DM6,T3,TW1)..(DSL,EFI,LPG)..(CBU,IV3);BU10#,132,140,145,147,162,182..DM3,DM6,DM7,T1,T3,T5,TL4,TW1,TW2; BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T199505-199907

main90114-10063×6iRZU100,140..(DM5,T2,T4,TW4)..20T; RZU100..LPGB;RZU100..(DM6,T3,TW1)..(EFI,LPG)199907

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011×4iBU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD)199505

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×4iBU100,102,12#..ST199505-199905

main90507-29002×4iBU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T199505

main90507-29006×4iBU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT199505

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iBU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T199505

main47447-36020×4iBU100,102,12#..ST199505-199905

main47447-60010×4iBU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT199505

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47506-36010×2iBU100,102,132,142,RZU100..T4..20T..(DSL,LPG)..IV3..5F; BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4199610-199905

main47506-36020×2iBU142,212..T3..20T..DSL..IV3..5F; BU182..T3..20T..IV3199505-199906

main47551-36150×2iBU100,102,12#..ST199505-199905

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47507-36010×2iBU10#,132,142..T4..IV3..5F; BU100..T2..IV3;BU162..03S..IV3; BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F199505-199610

main47507-36020×2iBU142,212..T3..20T..DSL..IV3..5F; BU182..T3..20T..IV3199505-199906

main47552-36150×2iBU100,102,12#..ST199505-199905

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36050×2iBU10#,142,162..(T2,T4)..5F199905-199906

main47553-36060×2iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100..(DM3,DM6,DM7,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG)..5F199505-200005

main47553-36070×2iBU100,102,132,142,RZU100..T4..20T..(DSL,LPG)..IV3..5F; RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU199610-200005

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36050×2iBU10#,142,162..(T2,T4)..5F199905-199906

main47554-36060×2iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100..(DM3,DM6,DM7,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG)..5F199505-200005

main47554-36070×2iBU10#,132,142..T4..IV3..5F; BU100..T2..IV3;BU162,182..TR..20T..IV3; BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F199505-199610

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010×8iBU10#,132,142..T4..IV3..5F; BU100..T2..IV3;BU162,182..TR..20T..IV3; BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F199505-199610

47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-40013×8iBU100,102,12#..ST199505-199905

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47536-36020×4iBU100,102,12#..ST199505-199905

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505-199905

main47547-27020×2iRZU100,140..DM6,T3,T4,TW1,TW4; RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG); RZU100..T3..20T..IV3199905-200005

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-36100iBU100,102,12#..ST199505-199905

main47550-36171iBU100,102,132,142,RZU100..T4..20T..(DSL,LPG)..IV3..5F; RZU100,140..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU199610-199905

main47550-36191iBU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F199505-200005

main47550-36200iBU100,102,RZU100..T3..WT..20T..IV3; BU182..T3;BU172..IV4;RZU100..DM6;BU142..T3..20T..5F;BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG)199505-199905

main47550-36210iBU142,212..T3..20T..DSL..IV3..5F; BU212..30T;BU182..T3..20T..IV3199505-199906

main47550-37050iBU112,202..TR..5F;BU100,102,172,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199505-200005

MARK = R1

main47550-37060iBU112..T3..4FC199505-199905

main47550-37100iRZU100,140..(T4,TW4)..20T199905-200005

main47550-37111iRZU100..LPGB;RZU100..(DM6,T3,TW1)..(EFI,LPG)199905-200005

main47550-37120iRZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG); RZU100..T3..20T..IV3199905-200005

MARK = R 28.5

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09735×4iBU100,102,12#..ST199505-199905

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081×16iBU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;BU10#,14#,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)199505

main90101-10127×16iBU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT199505

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002×16iBU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;BU10#,14#,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)199505

main90201-10287×16iBU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT199505

47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)

main47555-36051×2iBU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD)199704

47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)

main47555-36051×2iBU100,102..(DM2,DM3,DM5,T1,T2,T3,T4,T5,TW1,TW2,TW4)..5F;BU112,12#,132,140,142,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F199610-199704

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36100iBU100,102,12#..ST199505-199905

main47560-36171iBU100..T2..IV3;BU162..03S..IV3; BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F199505-199610

main47560-36191iBU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F199505-200005

main47560-36200iBU100,102,RZU100..T3..WT..20T..IV3; BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG)199505-200005

main47560-36210iBU102..T4..30T;BU102..T3..4FC;BU112..DM7..4FC;BU142..T3..20T..4FC;BU142..30T..(4FC,6F);BU105,107,145,147..T3;BU102,142..(DM6,T3)..LPGB;BU132,212,222..(T3,T4,TL4,TW1,TW4)..(4FC,6F); BU142,212..T3..20T..DSL..IV3..5F; BU212..30T;BU182..T3..20T..IV3199505-199906

main47560-37020iBU112,202..TR..5F;BU100,102,172,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199505-200005

MARK = R1

main47560-37030iBU112..T3..4FC199505-199905

main47560-37071iRZU100,140..(T4,TW4)..20T199905-200005

main47560-37081iRZU100..LPGB;RZU100..(DM6,T3,TW1)..(EFI,LPG)199905-200005

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-36100iBU100,102,12#..ST199505-199905

main47570-36171iBU100,102,132,142,RZU100..T4..20T..(DSL,LPG)..IV3..5F; RZU100,140..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU199610-199905

main47570-36191iBU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F199505-200005

main47570-36200iBU102..T3; BU142,182,212..ALV,T3199905-199906

main47570-36210iBU142,212..T3..20T..DSL..IV3..5F; BU212..30T;BU182..T3..20T..IV3199505-199906

main47570-37010iBU112,202..TR..5F;BU100,102,172,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199505-200005

MARK = L1

main47570-37020iBU112..T3..4FC199505-199905

main47570-37060iRZU100,140..(T4,TW4)..20T199905-200005

main47570-37071iRZU100..LPGB;RZU100..(DM6,T3,TW1)..(EFI,LPG)199905-200005

main47570-37080iRZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG); RZU100..T3..20T..IV3199905-200005

MARK = L 28.5

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36100iBU100,102,12#..ST199505-199905

main47580-36171iBU100..T2..IV3;BU162..03S..IV3; BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F199505-199610

main47580-36191iBU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F199505-200005

main47580-36200iBU100,102,RZU100..T3..WT..20T..IV3; BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG)199505-200005

main47580-36210iBU102..T3; BU142,212..T3..6F199905-199906

main47580-37010iBU112,202..TR..5F;BU100,102,172,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199505-200005

MARK = L1

main47580-37020iBU112..T3..4FC199505-199905

main47580-37061iRZU100,140..(T4,TW4)..20T199905-200005

main47580-37071iRZU100..LPGB;RZU100..(DM6,T3,TW1)..(EFI,LPG)199905-200005

main47580-37120iRZU100..T4..LPGB199905-200005

9015950146

main90159-50146

9020110287

main90201-10287

32 parts on this diagram · 4 diagrams in section
