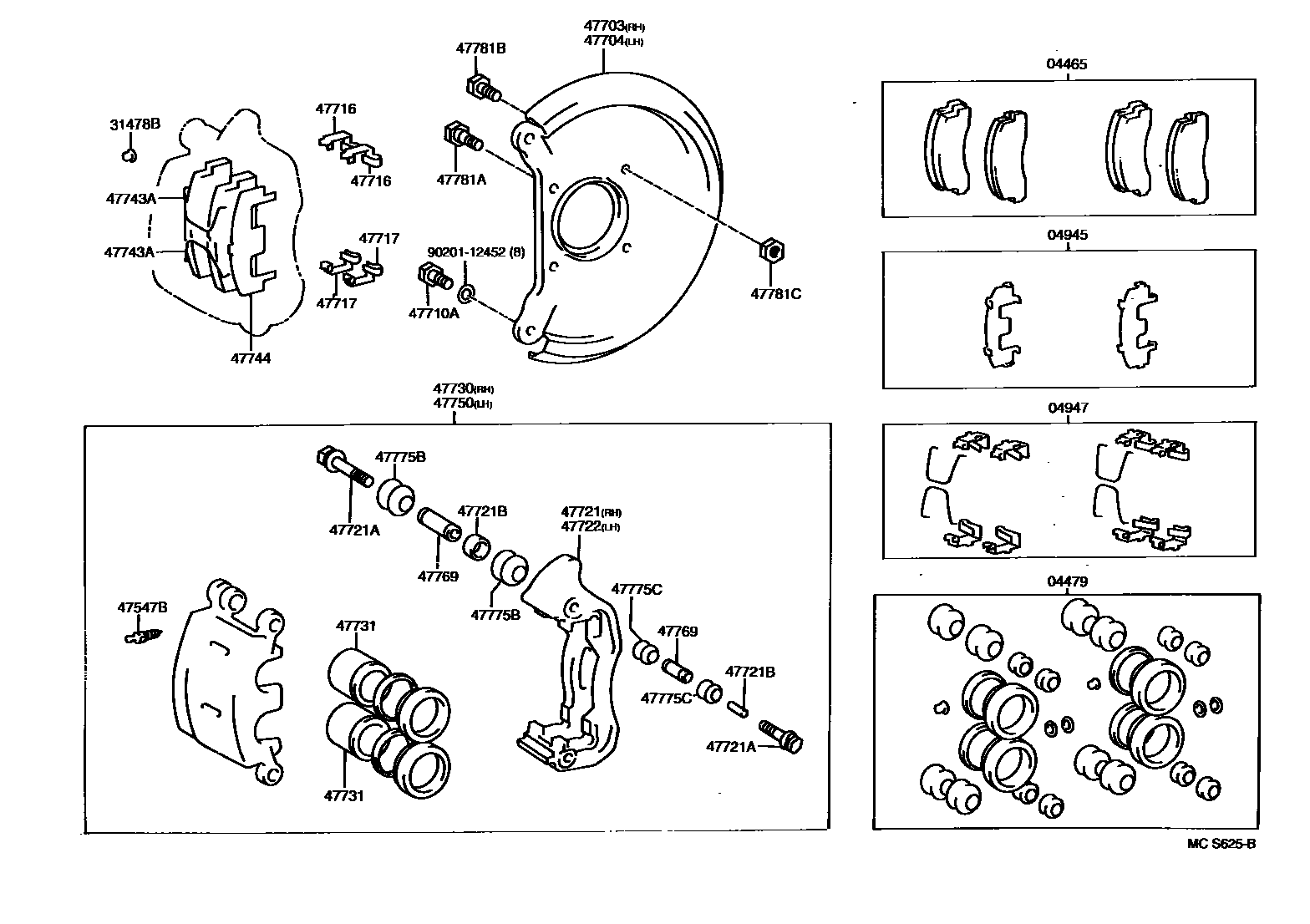

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1 0005 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-25020iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main04465-36010iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main04465-36030iBU105,107,145,147..T3199708-199905

main04465-36040iBU142..T4..5F;BU100,102,132,RZU100..T4..20T..(DSL,LPG)..IV3199610

main04465-37010iBU105,107,137,145,147..T2,T4,TW4199610-199905

main04465-65010iBU297199701-199905

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-25010iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main04479-36010iBU142..T3..20T..4FC;BU212..T3..TD..IV3..5F;BU142..T3..20T..CBU..5F;BU212..(T4,TW1,TW4)..IV3..5F;BU100,102..(DM6,T3)..WT..20T;BU212..(T3,T4,TW1,TW4)..CBU..5F;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU212..(T3,T4,TW1,TW4)..(4FC,6F);BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,222,RZU100..(DM6,T3,T4)..(DSL,LPGB,TD)199505

main04479-36020iBU105,107,137,145,147199610-199905

main04479-60020iBU297199701-199905

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-25010iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main04945-35040iBU297199701-199905

main04945-36010iBU105,107,145,147..T3199708-199905

main04945-37010iBU105,107,137,145,147..T2,T4,TW4199610-199905

main04945-40040iBU142,212..T3..20T..DSL..IV3..5F199505-199906

04947FITTING KIT, DISC BRAKE, FRONT

main04947-25010iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main04947-36010iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main04947-36020iBU105,107,137,145,147199610-199905

main04947-60040iBU297199701-199905

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iBU142,212..T3..20T..DSL..IV3..5F199505-199906

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iBU142,212..T3..20T..DSL..IV3..5F199505-199906

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-36020iRZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,212,222,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD)199505

main47703-36050iBU142..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

main47703-37010iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main47703-37020iBU105,107,137,145,147199610-199905

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-36020iRZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,212,222,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD)199505

main47704-36050iBU142..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

main47704-37010iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main47704-37020iBU105,107,137,145,147199610-199905

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12070×4iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main90101-12144×4iBU297199701-199905

main90101-12155×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main90105-16044×4iBU105,107,137,145,147199610-199905

main90105-16045×2iBU105,107,137,145,147199610-199905

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-25011×4iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main47716-36010×4iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main47716-36020×4iBU105,107,137,145,147199610-199905

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-25011×4iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main47717-36010×4iBU142..T3..20T..4FC;BU212..T3..TD..IV3..5F;BU142..T3..20T..CBU..5F;BU212..(T4,TW1,TW4)..IV3..5F;BU100,102..(DM6,T3)..WT..20T;BU212..(T3,T4,TW1,TW4)..CBU..5F;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU212..(T3,T4,TW1,TW4)..(4FC,6F);BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,222,RZU100..(DM6,T3,T4)..(DSL,LPGB,TD)199505

main47717-36020×4iBU105,107,137,145,147199610-199905

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-25020iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main47721-36021iBU142..T3..20T..4FC;BU212..T3..TD..IV3..5F;BU142..T3..20T..CBU..5F;BU212..(T4,TW1,TW4)..IV3..5F;BU100,102..(DM6,T3)..WT..20T;BU212..(T3,T4,TW1,TW4)..CBU..5F;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU212..(T3,T4,TW1,TW4)..(4FC,6F);BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,222,RZU100..(DM6,T3,T4)..(DSL,LPGB,TD)199505

main47721-36030iBU105,107,137,145,147..T2,T4,TW4199610-199905

main47721-36040iBU105,107,145,147..T3199708-199905

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-08297×4iBU142..T3..20T..4FC;BU212..T3..TD..IV3..5F;BU142..T3..20T..CBU..5F;BU212..(T4,TW1,TW4)..IV3..5F;BU100,102..(DM6,T3)..WT..20T;BU212..(T3,T4,TW1,TW4)..CBU..5F;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU212..(T3,T4,TW1,TW4)..(4FC,6F);BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,222,RZU100..(DM6,T3,T4)..(DSL,LPGB,TD)199505

main90119-08992×4iBU105,107,137,145,147199610-199905

main90119-10014×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199711

main90119-10249×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199711

main90119-10451×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505-199711

main90119-10452×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505-199711

main90119-12030×4iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main90119-12256×4iBU105,107,137,145,147199610-199905

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-14005×4iBU142..T3..20T..4FC;BU212..T3..TD..IV3..5F;BU142..T3..20T..CBU..5F;BU212..(T4,TW1,TW4)..IV3..5F;BU100,102..(DM6,T3)..WT..20T;BU212..(T3,T4,TW1,TW4)..CBU..5F;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU212..(T3,T4,TW1,TW4)..(4FC,6F);BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,222,RZU100..(DM6,T3,T4)..(DSL,LPGB,TD)199505

main90387-16004×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main90387-16005×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main90387-20003×4iBU142,212..T3..20T..DSL..IV3..5F199505-199906

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-25020iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main47722-36021iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main47722-36030iBU105,107,137,145,147..T2,T4,TW4199610-199905

main47722-36040iBU105,107,145,147..T3199708-199905

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-25020iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main47730-36023iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main47730-36030iBU105,107,137,145,147..T2,T4,TW4199610-199905

main47730-36040iBU105,107,145,147..T3199708-199905

main47730-36050iBU297199701-199905

47731PISTON, FRONT DISC BRAKE

main47731-25010×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main47731-36010×4iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main47731-36020×4iBU105,107,137,145,147199610-199905

main47731-60010×8iBU297199701-199905

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36010×4iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main47743-36020×4iBU105,107,137,145,147199610-199905

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-25020×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main47744-36011×2iBU142,212..T3..20T..DSL..IV3..5F199505-199906

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-25020iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

main47750-36023iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main47750-36030iBU105,107,137,145,147..T2,T4,TW4199610-199905

main47750-36040iBU105,107,145,147..T3199708-199905

main47750-36050iBU297199701-199905

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36010×4iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main47769-36020×4iBU142..T3..20T..4FC;BU212..T3..TD..IV3..5F;BU142..T3..20T..CBU..5F;BU212..(T4,TW1,TW4)..IV3..5F;BU100,102..(DM6,T3)..WT..20T;BU212..(T3,T4,TW1,TW4)..CBU..5F;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU212..(T3,T4,TW1,TW4)..(4FC,6F);BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,222,RZU100..(DM6,T3,T4)..(DSL,LPGB,TD)199505

main47769-36030×4iBU105,107,137,145,147199610-199905

main47769-40010×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010×8iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

47775BBOOT, BUSH DUST, NO.1

main47775-36010×8iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main47775-36040×8iBU105,107,137,145,147199610-199905

47775CBOOT, BUSH DUST, NO.2

main47775-36030×8iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main47775-36050×8iBU105,107,137,145,147199610-199905

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-12080×4iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main90109-12027×6iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505

47781BBOLT(FOR DUST COVER SETTING)

main90101-12089×4iBU142,212..T3..20T..DSL..IV3..5F199505-199906

main90105-16045×2iBU105,107,137,145,147199610-199905

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94115-71200×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T; BU142,212..T3..20T..DSL..IV3..5F; RZU100..DM6,T3,TW1;BU142..T3..20T..4FC;BU212..T3..TD..IV3..5F;BU142..T3..20T..CBU..5F;BU112,140,202,222..T3,T4;BU100,102..(DM6,T3)..WT..20T;BU212..(T4,TW1,TW4)..IV3..5F;BU212..(T3,T4,TW1,TW4)..CBU..5F;BU212..(T3,T4,TW1,TW4)..(4FC,6F);BU102,132,142..(T3,T4,T5)..(275T,30T)199505-199905

main94130-01202×2iBU10#,142,RZU100,140..(T4,TW4)..20T; RZU100..LPGB;BU102,142,212,RZU100..(DM6,T3,TW1)..(DSL,EFI,LPG)199905

main94130-01602×2iBU105,107,137,145,147199610-199905

9020112452

main90201-12452

28 parts on this diagram · 4 diagrams in section
