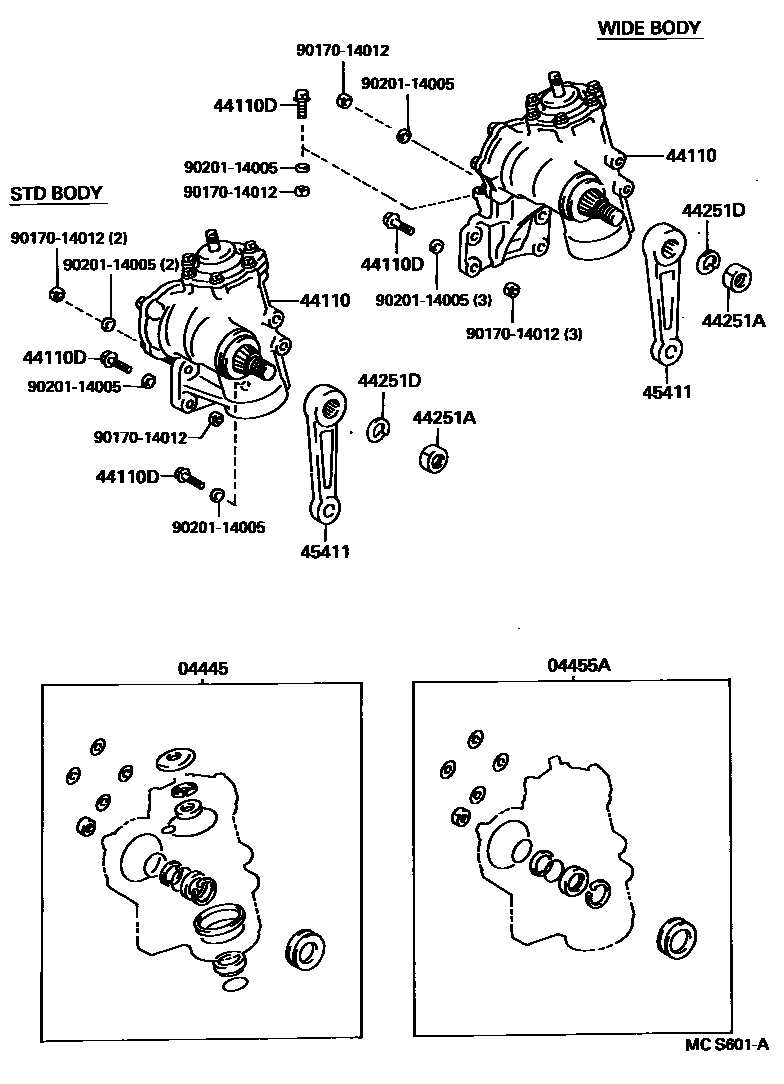

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-36060iBU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T)199505

main04445-36090iBU162,172,182199505

main04445-36100iBU297199701-199905

main04445-36110iBU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU112,202,XZU130..DM7,DM8,T4;BU212,222,RZU100,XZU140..DSL,LPGB,TD;BU100,102,132,140..(DM2,DM3,DM6,T3,T5,TW1)..WT199505

main04445-36130iBU132..TL4199702-199905

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-37010iBU105,107,137,145,147199610-199905

04455AGASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

main04455-36050iBU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T)199505

main04455-36060iBU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU112,202,XZU130..DM7,DM8,T4;BU212,222,RZU100,XZU140..DSL,LPGB,TD;BU100,102,132,140..(DM2,DM3,DM6,T3,T5,TW1)..WT199505

main04455-36070iBU162,172,182199505

44110GEAR ASSY, POWER STEERING

main44110-36181iBU202,212,222199505

main44110-36300iBU297199701-199905

main44110-37020iBU100,102..T3..ST;BU12#,132,RZU140..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T)199505

main44110-37030iBU112..T3199505-199905

main44110-37040iBU142..30T;RZU100..LPGB;BU142..T3..20T;BU102..T4..30T;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU100,102,132,140,XZU130,140..(DM2,DM3,DM6,DM7,T3,T5,TW1)..WT199505

main44110-37050iBU112..DMP199505-199905

main44110-37080iBU162,172,182199505

main44110-37100iBU132..TL4199702-199905

44110DBOLT(FOR POWER STEERING GEAR)

main90101-14015iBU112199505-199905

L=98

main90101-14017iBU132..T3,T4;BU100,102,12#,140,142,162,172,182,RZU100,140,XZU130,140199505

main90101-14023iBU112199505-199905

L=78

main90101-14034iBU202,212,222199505

main90101-14477×3iBU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140; BU162,172,182,202,212,222199505

44251ANUT, CASTLE(FOR PITMAN ARM)

main90170-27033iBU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T)199505

main90170-30001iBU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU112,202,XZU130..DM7,DM8,T4;BU212,222,RZU100..DSL,LPGB,TD;BU100,102,132,140,XZU140..(DM2,DM3,DM6,T3,T5,TL4,TW1)..WT199505

main90170-30171iBU297199701-199905

44251DWASHER(FOR PITMAN ARM)

main90204-27020iBU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T)199505

main90204-30040iBU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212,222,RZU100..DSL,LPGB,TD;BU112,202,297,XZU130..DM7,DM8,T4,TW1;BU100,102,132,140,XZU140..(DM2,DM3,DM6,T3,T5,TL4,TW1)..WT199505

45411ARM, PITMAN

main45411-36471iBU202,212,222199505-199906

main45411-37030iBU162,172,182199505-199906

main45411-37040iBU100,102,132,142,RZU100,140..(DM5,T4,TW4)..20T199505-200005

main45411-37050iBU142..30T;RZU100..LPGB;BU142..T3..20T;BU102..T4..30T;RZU100..30T..(EFI,LPG);BU112,RZU100,XZU130..(DM6,DM7,DM8)..(DSL,EFI,LPG);BU100,102,132,140,XZU140..(DM2,DM3,DM6,T3,T5,TW1)..WT199505-200005

main45411-37060iBU100,102..ST;BU112,12#..TR,V;BU100,102,140,142..T2;RZU100..(T2,T3,TW1)..20T199505-200005

main45411-37081iBU297199701-199905

main45411-37090iBU132..TL4199702-199905

9017014012

main90170-14012

9020114005

main90201-14005

10 parts on this diagram · 14 diagrams in section
