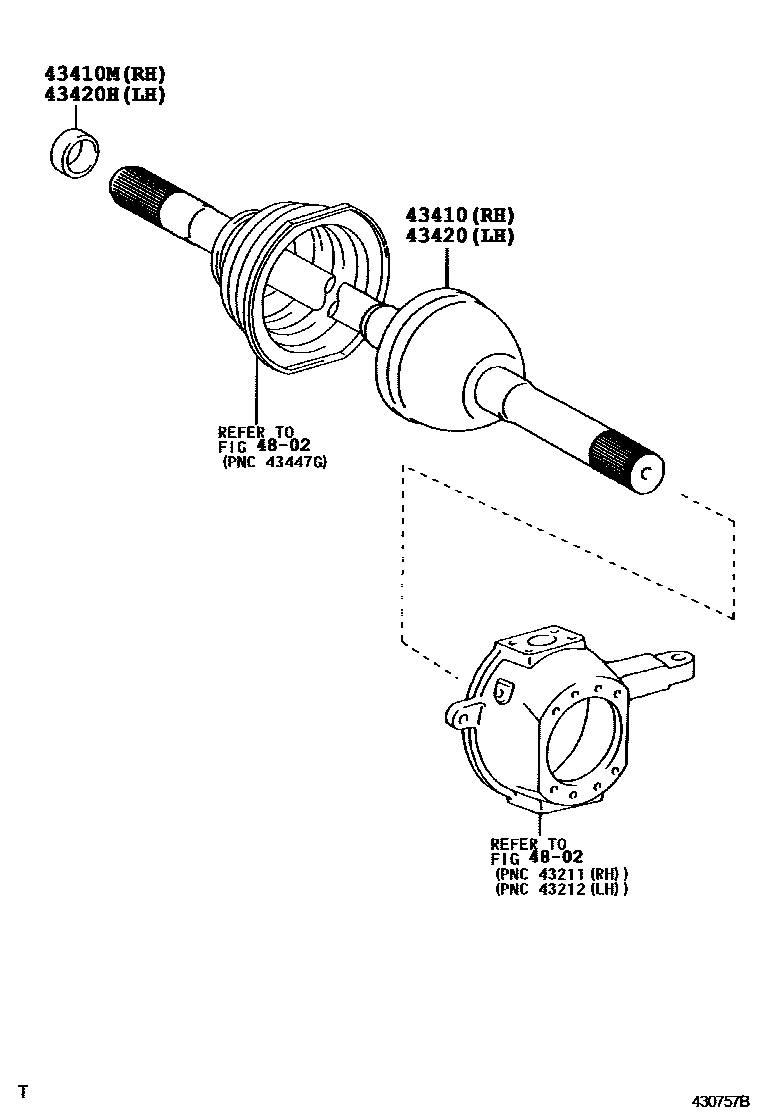

FRONT DRIVE SHAFT

0001 1 0002 1

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-36010iBU162,172,182199505-199906

main43430-65010iBU297199701-199905

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-37001iBU162,172,182199505-199906

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-36010iBU162,172,182199505-199906

main43430-65010iBU297199701-199905

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-37001iBU162,172,182199505-199906

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

5 parts on this diagram · 2 diagrams in section
