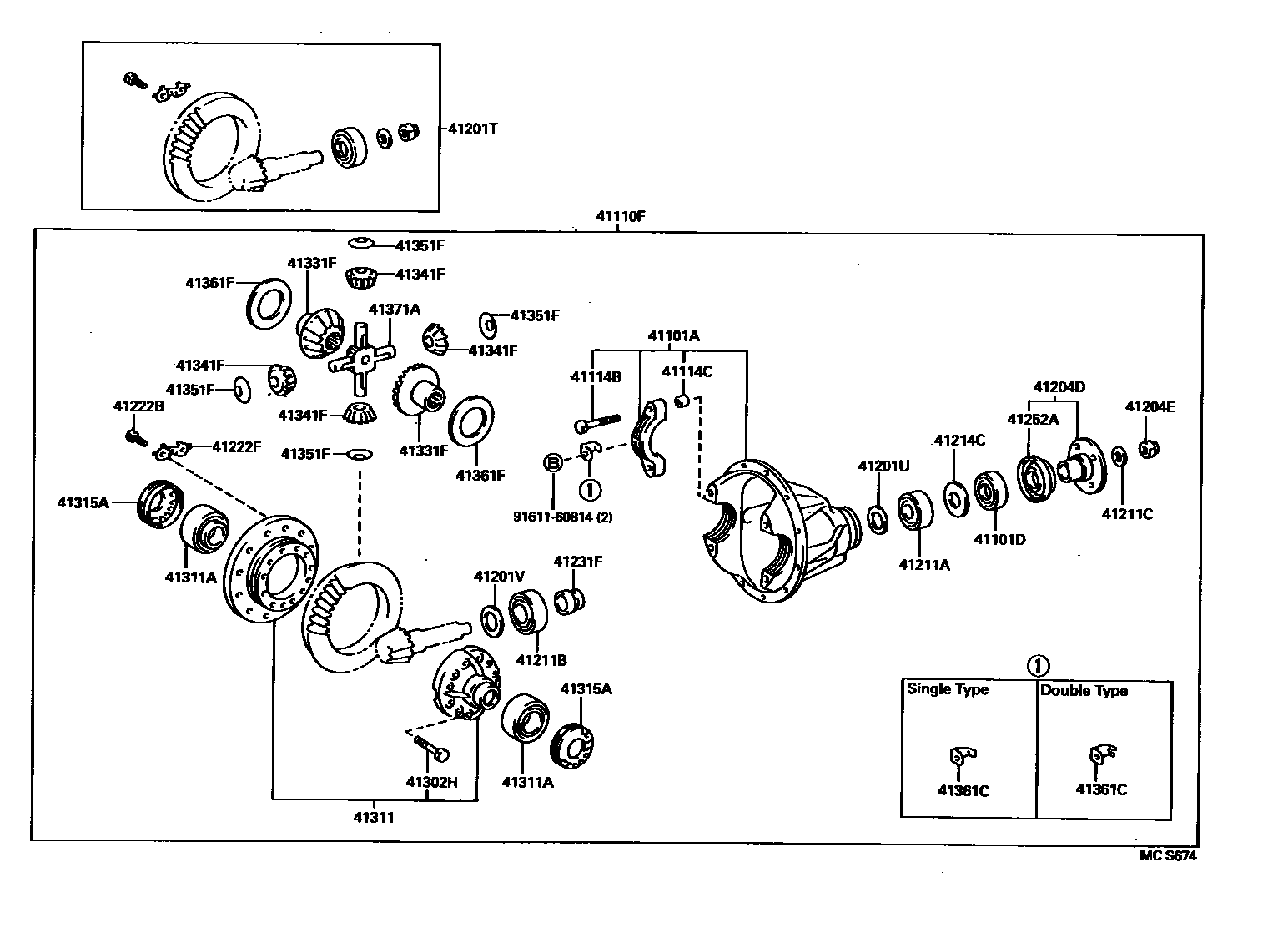

FRONT AXLE HOUSING & DIFFERENTIAL
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
sub41110-37080
sub41110-37120
sub41110-37190
sub41110-36541
sub41110-37100
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41114CPIN, RING, FRONT DIFFERENTIAL BEARING CAP BOLT
41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)
sub90564-40004
sub90564-40007
sub90564-40009
sub90564-40011
sub90564-40013
sub90564-40015
sub90564-40017
sub90564-40019
sub90564-40021
sub90564-40023
sub90564-40025
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211CGEAR, DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41302HBOLT(FOR FRONT DIFFERENTIAL CASE)
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41315ANUT, FRONT DIFFERENTIAL BEARING ADJUSTING
41331FGEAR, FRONT DIFFERENTIAL SIDE
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361CLOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
sub41361-60011
sub41361-60021
sub41361-60031
sub41361-60041
41371ASPIDER, FRONT DIFFERENTIAL
9161160814
main91611-60814
29 parts on this diagram · 3 diagrams in section
