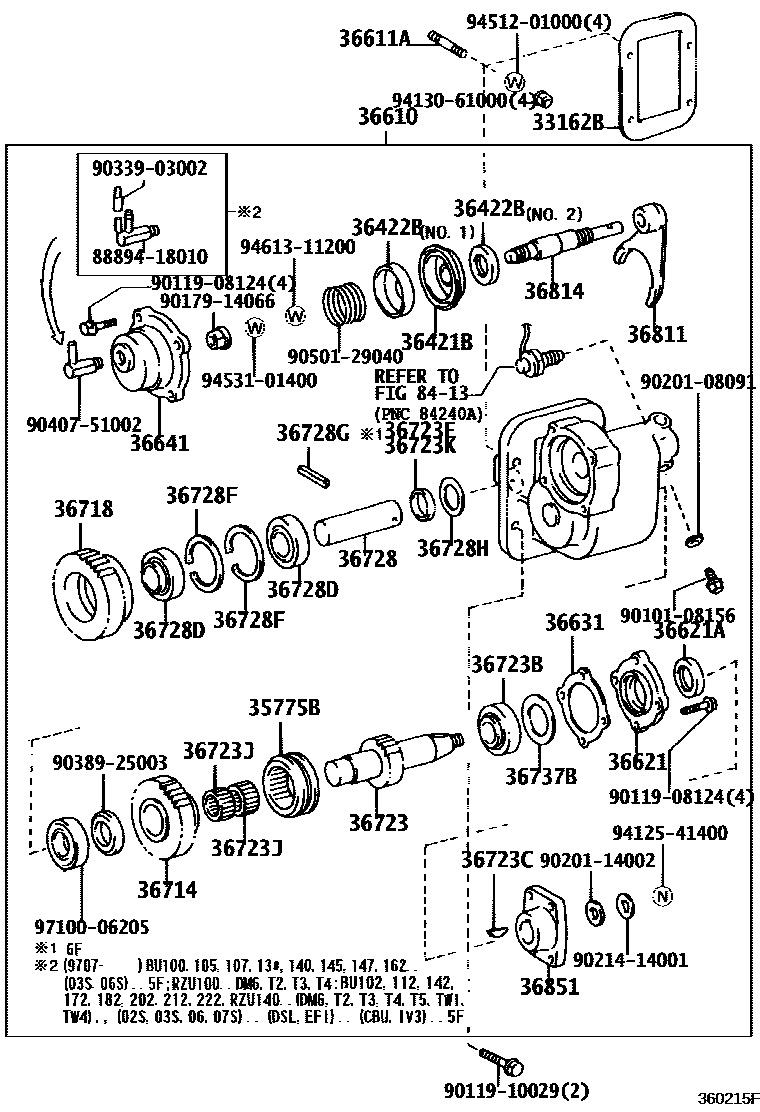

POWER TAKE-OFF CASE & GEAR

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1������ �������- P.T.O 0014 1 0015 1������ ����-� P.T.O 0016 1�����-� P.T.O 0017 1�����-� P.T.O 0018 1�����-� P.T.O 0019 1 0020 1 0021 1

33162BGASKET, POWER TAKE-OFF COVER

main33162-96300iRZU100..03S;BU10#,112,13#,14#,162,172,182,202,212,222,XZU130..(02S,03S,06S,07S)..(CBU,IV3)..5F199505-199708

sub33162-37030

35775BSLEEVE, OUTPUT SHAFT

main35775-93100iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

36421BDIAPHRAGM (FOR POWER TAKE-OFF)

main36421-93100iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

sub36421-37010

36422BPLATE, DIAPHRAGM (FOR POWER TAKE-OFF)

main36422-93100iRZU100,XZU130..02S,03S;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)..5F199505-199708

main36422-93101iRZU100,XZU130..02S,03S;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)..5F199505-199708

36610POWER TAKE-OFF ASSY

main36610-37030iBU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..20T..5F199505

main36610-37050iBU102..DM3199505-199905

main36610-37060iBU112..30T..5F199610-199905

main36610-93117iRZU100..06S199708

main36610-93117iRZU100..(DM6,T2,T3,T4)..(EFI,LPG);BU100,105,107,13#,140,145,147,162..(03S,06S)..5F;BU102,112,142,172,182,202,212,222,RZU140..(DM6,T2,T3,T4,T5,TW1,TW4)..(02S,03S,06S199505-199510

main36610-93118iXZU130,140;BU102,142,212,222,RZU100..(LPGB,TD)..5F199505

main36610-93121iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

main36610-93122iBU102,RZU100..T3..LPGB199708

main36610-93123iBU102,132,142,212..4FC199505-199610

sub36610-93127

main36610-93124iBU132..TL4..5F199702-199905

main36610-93124iBU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F199505-199906

main36610-93127iBU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199610-199906

main36610-93128iBU142,212,222..6F199708-199906

36611CASE, POWER TAKE-OFF

main36611-36040iBU102,112,162,RZU100..(DM2,DM3,DM5,DM7,DM8)..5F199505

main36611-37030iBU297;BU102,107..(DM6,T2,T3,T4,TW1)..WT..20T..(IV3,IV4)..5F199505-199706

main36611-37031iBU297;BU102,107..(DM6,T2,T3,T4,TW1)..WT..20T..DSL..(IV3,IV4)..5F199706

main36611-93105iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505

main36611-93110iBU102..ST;BU102..30T..IV3;BU102..T2..CBU..5F199505-199510

main36611-93110iBU102,132..(T5,TL4)..IV3..5F199510-199905

36611ABOLT, STUD (FOR POWER TAKE-OFF CASE)

main90116-10099iBU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505-199906

main90116-10103iRZU100,XZU130..02S,03S;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)..5F199510-199708

main90116-10103iBU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F199505-199609

main90116-12036iBU297;BU102,107..(DM6,T2,T3,T4,TW1)..WT..20T..DSL..(IV3,IV4)..5F199505-199906

36621RETAINER, POWER TAKE-OFF BEARING

main36621-36020iBU172..IV4199507-199905

main36621-93101iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505

main36621-93200iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)

main90311-25012iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505-199906

main90311-25110iBU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3)199505-199708

main90311-30015iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

36631GASKET, POWER TAKE-OFF BEARING RETAINER

main36631-36020iBU172..IV4199507-199905

main36631-36030iBU102,112,162,RZU100..(DM2,DM3,DM5,DM7,DM8)..5F199505

main36631-37040iBU297;BU102,107..(DM6,T2,T3,T4,TW1)..WT..20T..DSL..(IV3,IV4)..5F199505-199906

main36631-93102iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505-199906

main36632-93101iBU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3)199505-199708

main36632-93102iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

main36632-93103iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

main36632-93200iBU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102..TR..03S..20T..CBU..5F;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F199505-199510

36641CAP, POWER TAKE-OFF SHIFT SHAFT

main36641-93100iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

main36641-93101iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

36714GEAR, POWER TAKE-OFF OUTPUT

main36714-36040iBU102,112,162,RZU100..(DM2,DM3,DM5,DM7,DM8)..5F199505

main36714-37020iBU172..IV4199507-199905

main36714-37030iBU102,107..(DM6,T2,T3,T4,TW1)..WT..20T..DSL..(IV3,IV4)..5F199505-199906

main36714-37040iBU172..IV4199610-199905

N=25

main36714-37050iBU172..IV4199610-199708

N=23

main36714-37060iBU102..IV4199610-199905

main36714-37070iBU297199701-199905

main36714-93101iBU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102..TR..03S..20T..CBU..5F;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F199505-199510

main36714-93103iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505-199906

main36714-93108iRZU100,XZU130..02S,03S;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)..5F199505-199708

main36714-93110iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

main36714-93111iBU142,212,222..6F199708-199906

36718GEAR, POWER TAKE-OFF IDLER

main36718-36050iBU102,112,162,RZU100..(DM2,DM3,DM5,DM7,DM8)..5F199505

main36718-37020iBU297;BU102,107..(DM6,T2,T3,T4,TW1)..WT..20T..DSL..(IV3,IV4)..5F199505-199906

main36718-37030iBU172..IV4199509-199905

main36718-93106iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505-199906

main36718-93109iBU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102..TR..03S..20T..CBU..5F;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F199505-199510

main36718-93111iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

main36718-93112iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

main36718-93114iBU142,212,222..6F199708-199906

36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1

main36723-36030iBU172..IV4199507-199905

main36723-37020iBU297;BU102,107..(DM6,T2,T3,T4,TW1)..WT..20T..DSL..(IV3,IV4)..5F199505-199906

main36723-93101iBU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F199505-199510

main36723-93103iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505-199906

main36723-93107iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

main36723-93108iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

36723BBEARING (FOR OUTPUT SHAFT REAR)

main90363-25001iBU102,132,142,212..4FC199505-199610

main90365-25029iBU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199610-199906

main90366-22001iBU102..275T;BU102..30T..CBU..5F;BU107..(T3,TW4)..5F;BU102..(DM6,T3)..LPGB;BU102,XZU130..DM7,TW4;BU102..T4..30T..IV3..5F;BU100,105,112,13#,14#,162,172,182,202,RZU100199505-199708

main90366-22001iBU107..(T2,T4)..5F;BU102..T4..20T..IV3..5F;BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3)..(20T,30T)..DSL..IV3..5F199505-199906

main90366-25011iBU142,212,222..6F199708-199906

main97100-06205iBU107..(T2,T4)..5F;BU102..T4..20T..IV3..5F;BU102..TR..03S..20T..CBU..5F;BU102..(DM6,T2,T3)..(20T,30T)..DSL..IV3..5F199505-199906

main97100-06205iBU107..T3..IV3;BU102,RZU100..T3..LPGB;BU102,132..(T4,T5,TL4)..30T..DSL..IV3..5F199505

main97103-06206iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

36723CKEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)

main90280-07011iBU112..T3..5F;BU132..TL4..5F;RZU100,XZU130..02S,03S;BU10#,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)199505-199708

36723ESPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)

main36645-93100iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505-199906

main90389-25002iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

main90560-25001iBU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F199505-199510

main90560-25002iBU107..T3..IV3;BU102..T3..LPGB;BU142,212,222..6F;BU102..T4..30T..DSL..IV3..5F199708-199906

main90560-25002iBU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F199505-199510

36723JBEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)

main90364-28020iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

36723KCOLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)

main90387-25009iBU100,105,XZU130;BU102,107,112,13#,14#,162,172,182,202,RZU100,140,XZU140..(DM6,T2,T3,T4,TL4,TW1,TW4)..(02S,03S,06S)..(CBU,IV3)..5F199505-199708

36728SHAFT, POWER TAKE-OFF IDLER

main36728-36030iBU172..IV4199507-199905

main36728-36040iBU102,112,162,RZU100..(DM2,DM3,DM5,DM7,DM8)..5F199505

main36728-93101iBU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102..TR..03S..20T..CBU..5F;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F199505-199510

main36728-93103iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505-199906

main36728-93107iBU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3)199505-199708

main36728-93108iBU112..DM7..4FC;BU112..T3..IV3..4FC199505-199905

36728DBEARING (FOR POWER TAKE-OFF IDLER SHAFT)

main90363-25058iBU172..IV4199507-199905

main90366-22001iBU100,105,XZU130;BU102,107,112,13#,14#,162,172,182,202,RZU100,140,XZU140..(DM6,T2,T3,T4,TL4,TW1,TW4)..(02S,03S,06S)..(CBU,IV3)..5F199505-199708

main90366-22001iBU102..DM5..IV3199505-199510

main90366-25011iBU142,212,222..6F199708

main97103-06304iBU102,112,162,RZU100..(DM2,DM3,DM5,DM7,DM8)..5F199505

36728FRING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)

main90521-56108iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

36728GPIN (FOR POWER TAKE-OFF IDLER SHAFT)

main90254-04002iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

36728HSHIM (FOR POWER TAKE-OFF IDLER SHAFT)

main90564-25001iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

T=0.05

main90564-25001iBU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3)199708

main90564-25002iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

main90564-25003iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

main90564-25004iBU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3)199505-199708

36737BSHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)

main90564-42001iRZU100..03S;BU102..DM5..IV3;BU112..DM7..4FC;BU112..T3..IV3..4FC;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

main90564-42002iRZU100..03S;BU102..DM5..IV3;BU112..DM7..4FC;BU112..T3..IV3..4FC;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

main90564-42003iBU112..DM7..4FC;BU112..T3..IV3..4FC;RZU100,XZU130..02S,03S;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,199505-199708

main90564-42004iRZU100..03S;BU102..DM5..IV3;BU112..DM7..4FC;BU112..T3..IV3..4FC;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

36811FORK, POWR TAKE-OFF SHIFT, NO.1

main36811-36030iBU172..IV4199507-199905

main36811-36040iBU102,112,162,RZU100..(DM2,DM3,DM5,DM7,DM8)..5F199505

main36811-93101iBU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F199505-199510

main36811-93103iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505

main36811-93104iBU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3)199505-199708

36814SHAFT, POWR TAKE-OFF FORK, NO.1

main36814-36040iBU102,112,162,RZU100..(DM2,DM3,DM5,DM7,DM8)..5F199505

main36814-37020iBU172..IV4199507-199905

main36814-93102iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505

main36814-93104iRZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F199505-199708

main36814-93110iBU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102..TR..03S..20T..CBU..5F;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F199505-199510

36851RETAINER, POWER TAKE-OFF JOINT

main36851-36030iBU297;BU172..IV4;BU102,107..(DM6,T2,T3,T4,TW1)..WT..20T..DSL..(IV3,IV4)..5F199505

main36851-93101iBU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC199505

main36851-93200iRZU100..03S;BU102..275T;BU102..06S..IV3;BU132..(T3,T4)..IV3..5F;BU102..(T3,T5,TW4)..WT..(20T,30T)..CBU;BU100,112,140,142,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T199505-199708

8413

8889418010

main88894-18010

9010108156

main90101-08156

9011908124

main90119-08124

9011910029

main90119-10029

9017914066

main90179-14066

9020108091

main90201-08091

9020114002

main90201-14002

9021414001

main90214-14001

9033903002

main90339-03002

9038925003

main90389-25003

9040751002

main90407-51002

9050129040

main90501-29040

9412541400

main94125-41400

9413061000

main94130-61000

9451201000

main94512-01000

9453101400

main94531-01400

9461311200

main94613-11200

9710006205

main97100-06205
