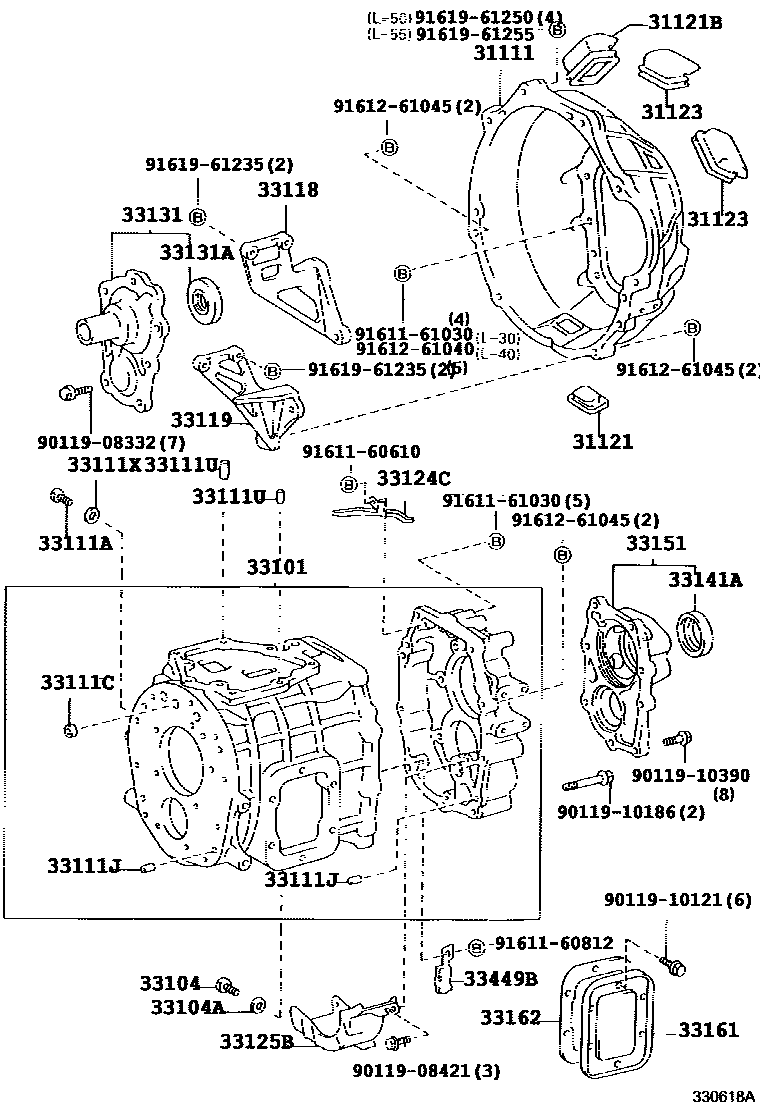

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1M150,M153,M155 0002 1M153,��(�����-� P.T.O) 0003 1M153 0004 1M153,M155 0006 1M153,M155 0007 1M153F 0008 1M153F 0009 1M153 0010 1M153 0011 1M155 0012 1H260

31111HOUSING, CLUTCH

main31111-36271iBU162,172,182..CBU,IV3199505-199906

main31111-36281iBU202,212,222..DSL..5F199505-199905

main31111-36300iBU172..IV4199507-199905

main31111-36310iBU10#,112,12#,13#,14#..(175T,20T)..DSL..5F199505-199906

main31111-36331iRZU100,140..EFI,LPG199505

main31111-37020iBU102..20T..LPGB;BU212,222,RZU100..(LPGB,TD)..5F;BU102,112,132,142..(275T,30T)..5F199505

main31111-37030iXZU130,140199510-199905

main31111-37040iBU142,212,222..6F199708-199906

31121COVER, CLUTCH HOUSING, NO.1

main31121-36040iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..MTM199505

31121BCOVER, CLUTCH HOUSING, NO.3

main31121-28030iBU10#,112,12#,13#,14#..(175T,20T)..DSL..5F199505

main31121-36080iBU162,172,182199505

31123COVER, CLUTCH HOUSING, NO.2

main31121-28041×2iRZU100,XZU130,140..DSL,EFI,LPG;BU10#,112,12#,13#,14#,RZU140..(175T,20T)..(DSL,EFI)..5F199505

main31121-36070iBU162,172,182,202,212,222..DSL..5F199505

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-36082iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F199505-199808

main33101-36083iBU10#,112,120,13#,14#,202,RZU100,140,XZU130,140..5F199808

main33101-36102iBU162,172,182..CBU,IV3199505-199808

main33101-36103iBU162,172,182..CBU,IV3199808

main33101-37010iBU172..IV4199507-199808

main33101-37011iBU172..IV4199808-199905

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iRZU100..EFI,LPG;BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU140,XZU130,140..MTM199505

33111CASE, MANUAL TRANSMISSION

main33111-37040iBU142,212,222..6F199708-199811

main33111-37041iBU142,212,222..6F199811-199906

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33111CPLUG(FOR TRANSMISSION CASE)

main96411-11600×3iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×4iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F; BU162,172,182199505

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90253-13017×2iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33118PLATE, STIFFENER, RH(MTM)

main33118-36021iBU10#,112,12#,13#,14#,202,212,222..(175T,20T)..DSL..5F199505

main33118-36040iBU162,172,182199505

main33118-37020iBU212,222..6F;BU102..20T..LPGB;BU212,222,RZU100..(LPGB,TD)..5F;BU102,112,132,142..MTM..(275T,30T)199505

main33118-37030iRZU100,140..EFI,LPG199505

33119PLATE, STIFFENER, LH(MTM)

main33119-26021iRZU100,140..EFI,LPG199505

main33119-36042iBU172,182;BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..DSL..(CBU,IV3)..5F199505

main33119-37020iBU212,222..6F;BU102..20T..LPGB;BU212,222,RZU100..(LPGB,TD)..5F;BU102,112,132,142..MTM..(275T,30T)199505

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-36030iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F199505

main33124-36040iBU162,172,182199505-199906

main33124-37010iBU142,212,222..6F199708-199906

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-36020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33125-60010iBU142,212,222..6F199708-199906

33131RETAINER, BEARING, FRONT(MTM)

main33018-36060iBU172,182,RZU100..DSL,EFI,LPG;BU10#,112,12#,13#,14#,162,202,212,222,RZU140..(175T,20T)..(DSL,EFI)..5F199505

main33018-37010iBU102..20T..LPGB;BU212,222,RZU100..(LPGB,TD)..5F;BU102,112,132,142..(275T,30T)..5F199505

main33018-37020iXZU130,140199510-199905

main33131-60070iBU142,212,222..6F199708-199906

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iBU172,182,RZU100..DSL,EFI,LPG;BU10#,112,12#,13#,14#,162,202,212,222,RZU140..(175T,20T)..(DSL,EFI)..5F199505

main90311-35023iBU212,222..6F;RZU100,XZU130,140..DSL,LPGB;BU102,212,222..20T..(LPGB,TD)..5F;BU102,112,132,142..MTM..(275T,30T)199505

33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)

main90311-48011iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F199505

main90311-48016iBU162,172,182199505-199906

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33017-36031iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F199505

main33017-36050iBU162,172,182199505-199906

main33151-37010iBU142,212,222..6F199708-199811

main33151-37011iBU142,212,222..6F199811-199906

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-36010iBU212,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..MTM..(DSL,EFI,LPG,TD);BU10#,112,12#,13#,14#,162,172,182,202,222,RZU140,XZU130,140..MTM..(02S,03S,06S)199505

main33161-36040iBU212,222..TD..5F;BU162,172,182..TR..(CBU,IV3)199505-199906

33162GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER

main33162-36020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

33449BMAGNET, TRANSMISSION

main33449-35010iBU142,212,222..6F199708-199906

main33449-36010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

9011908332

main90119-08332

9011908421

main90119-08421

9011910121

main90119-10121

9011910186

main90119-10186

9011910390

main90119-10390

9161160610

main91611-60610

9161160812

main91611-60812

9161161030

main91611-61030

9161261040

main91612-61040

9161261045

main91612-61045

9161961235

main91619-61235

9161961250

main91619-61250

9161961255

main91619-61255

37 parts on this diagram · 11 diagrams in section
