Toyota DYNA 200/TOYOACE G25751 — CLUTCH MASTER CYLINDER

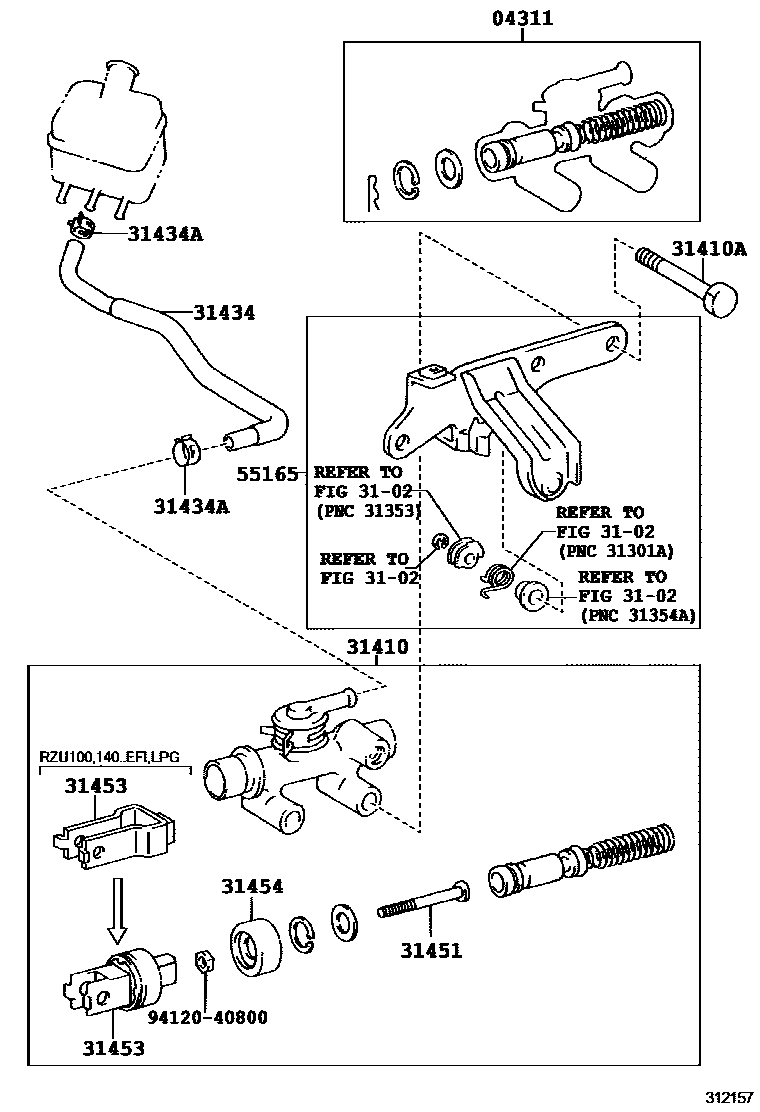

Parts diagram

04311CYLINDER KIT, CLUTCH MASTER

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

31410CYLINDER ASSY, CLUTCH MASTER

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

31434TUBE, CLUTCH RESERVOIR

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

31451ROD, CLUTCH MASTER CYLINDER PUSH

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

31454BOOT, CLUTCH MASTER CYLINDER

55165SUPPORT, CLUTCH MASTER CYLINDER

9412040800

11 parts on this diagram · 2 diagrams in section

CLUTCH MASTER CYLINDER for Toyota DYNA 200/TOYOACE G25751

This section contains 16 genuine Toyota parts for the CLUTCH MASTER CYLINDER system of the Toyota DYNA 200/TOYOACE G25751. Key components include: CYLINDER KIT, CLUTCH MASTER, CLUTCH PEDAL & FLEXIBLE HOSE, CLUTCH BOOSTER, CYLINDER ASSY, CLUTCH MASTER, BOLT(FOR CLUTCH MASTER CYLINDER SETTING).
