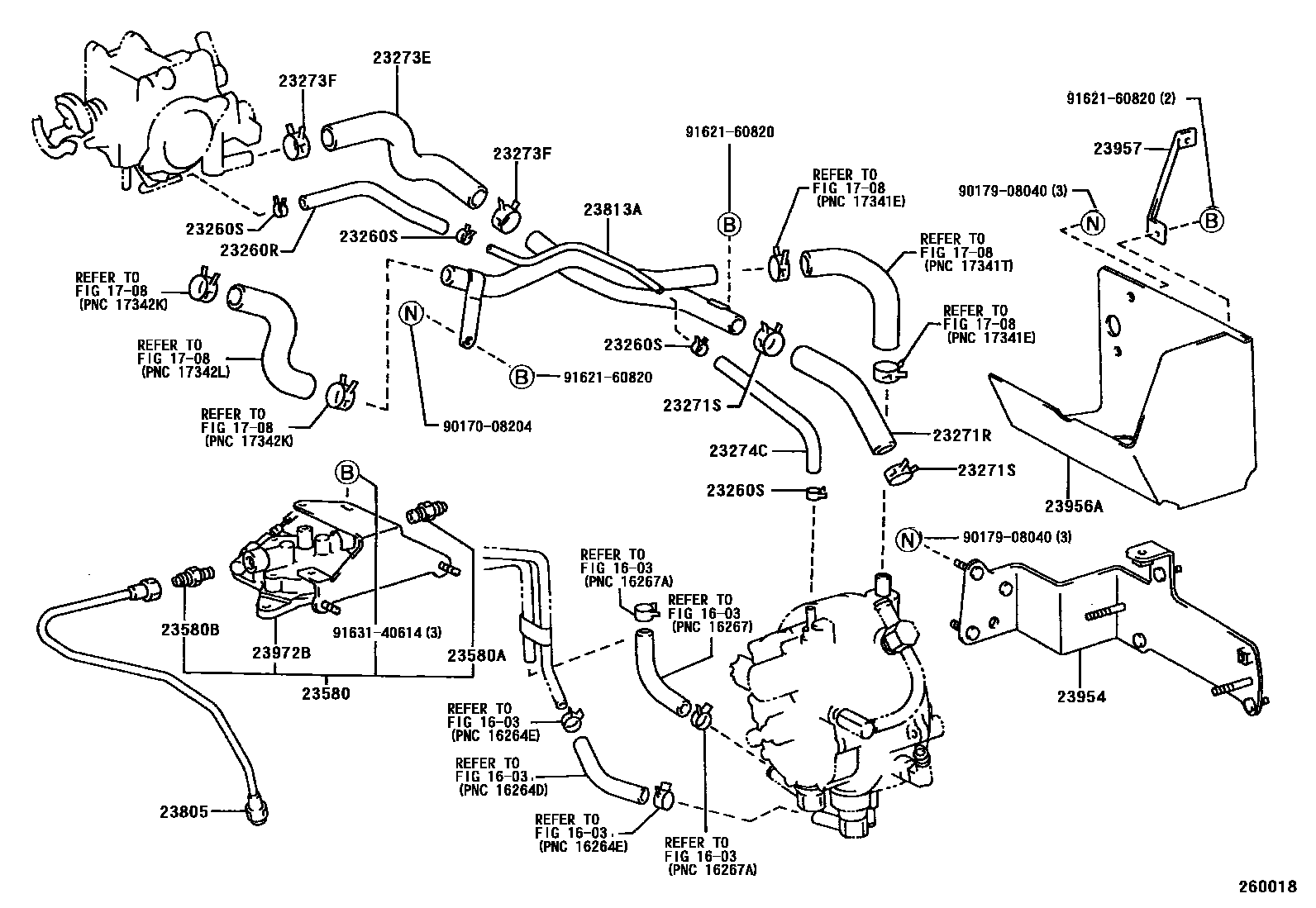

LPG(CARBURETOR) FUEL PIPE

0001 1 0003 1

1603

1708

23260RHOSE, LPG INJECTOR

main23282-48010i15BFP..BU102,142199605-199905

main95333-08030i3RZFP..RZU100199505

23260SCLAMP OR CLIP(FOR LPG INJECTOR HOSE)

main90467-13001i15BFP..BU102,142199505-199905

sub96135-51300

23271RHOSE, FUEL, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main23271-75050i15BFP..BU102,142199505-199905

23271SCLAMP OR CLIP(FOR FUEL HOSE NO.1)

main90467-26005i15BFP..BU102,142199505-199905

sub96134-52600

23273EHOSE, FUEL, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR)

main23273-48010i15BFP..BU102,142199605-199905

main23273-75011i3RZFP..RZU100199505

23273FCLAMP OR CLIP(FOR FUEL HOSE NO.3)

main90467-26005i15BFP..BU102,142199505-199905

sub96134-52600

23274CHOSE, FUEL, NO.3

main23274-75010i15BFP..BU102,142199505-199905

23580PREHEATER ASSY, LPG

main23580-75010i15BFP..BU102,142199505-199905

23580AUNION, FUEL PIPE(FOR INLET)

main90404-14064i15BFP..BU102,142199505-199905

23580BUNION, FUEL PIPE(FOR OUTLET)

main90404-14064i15BFP..BU102,142199505-199905

23805PIPE SUB-ASSY, LPG REGULATOR

main23805-75010i15BFP..BU102,142199505-199905

23813APIPE, LPG FUEL

main23813-48010i15BFP..BU102,142199605-199905

main23813-75010i3RZFP..RZU100199505

23954BRACKET, LPG REGULATOR

main23954-75010i15BFP..BU102,142199505-199905

23956ACOVER, LPG REGULATOR

main23956-75010i15BFP..BU102,142199505-199905

23957STAY, LPG REGULATOR

main23957-75010i3RZFP..RZU100;15BFP..RZU100..DM6,T4199505-199905

main23957-75020i15BFP..BU102,142..T3199605-199905

23972BBRACKET, LPG PREHEATER

main23972-73030i15BFP..BU102,142199505-199905

9017008204

main90170-08204

9017908040

main90179-08040

9162160820

main91621-60820

9163140614

main91631-40614

22 parts on this diagram · 2 diagrams in section
