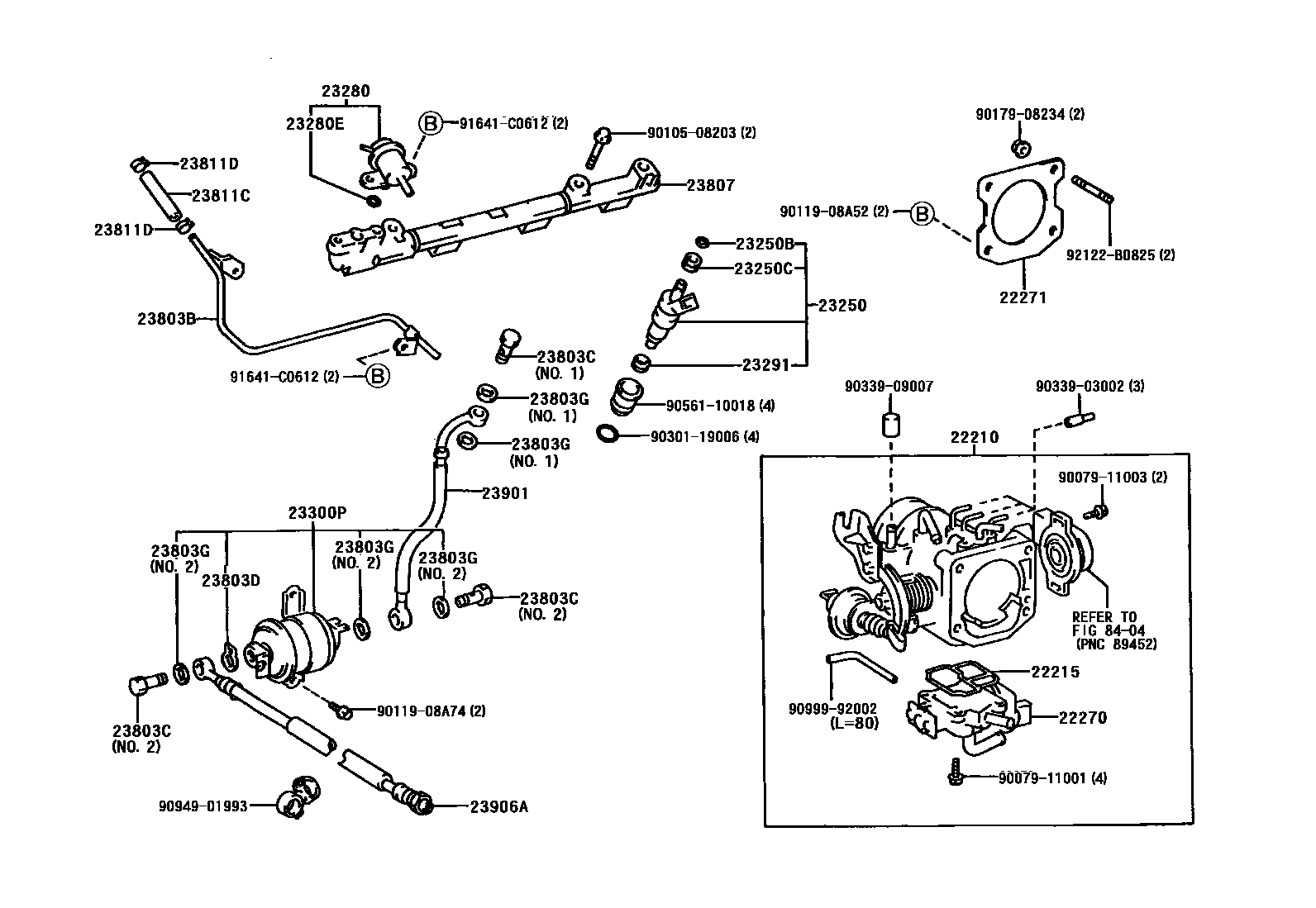

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23803GGASKET(FOR FUEL HOSE)
23807PIPE SUB-ASSY, FUEL DELIVERY
23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
23811DCLIP, HOSE(FOR FUEL HOSE)
23901TUBE SUB-ASSY, FUEL
23906AHOSE SUB-ASSY, FUEL
8404ELECTRONIC FUEL INJECTION SYSTEM
9007911001
main90079-11001
9007911003
main90079-11003
9010508203
main90105-08203
9011908A52
main90119-08A52
9011908A74
main90119-08A74
9017908234
main90179-08234
9030119006
main90301-19006
9033903002
main90339-03002
9033909007
main90339-09007
9056110018
main90561-10018
9094901993
main90949-01993
9099992002
main90999-92002
91641C0612
main91641-C0612
92122B0825
main92122-B0825
35 parts on this diagram · 2 diagrams in section
