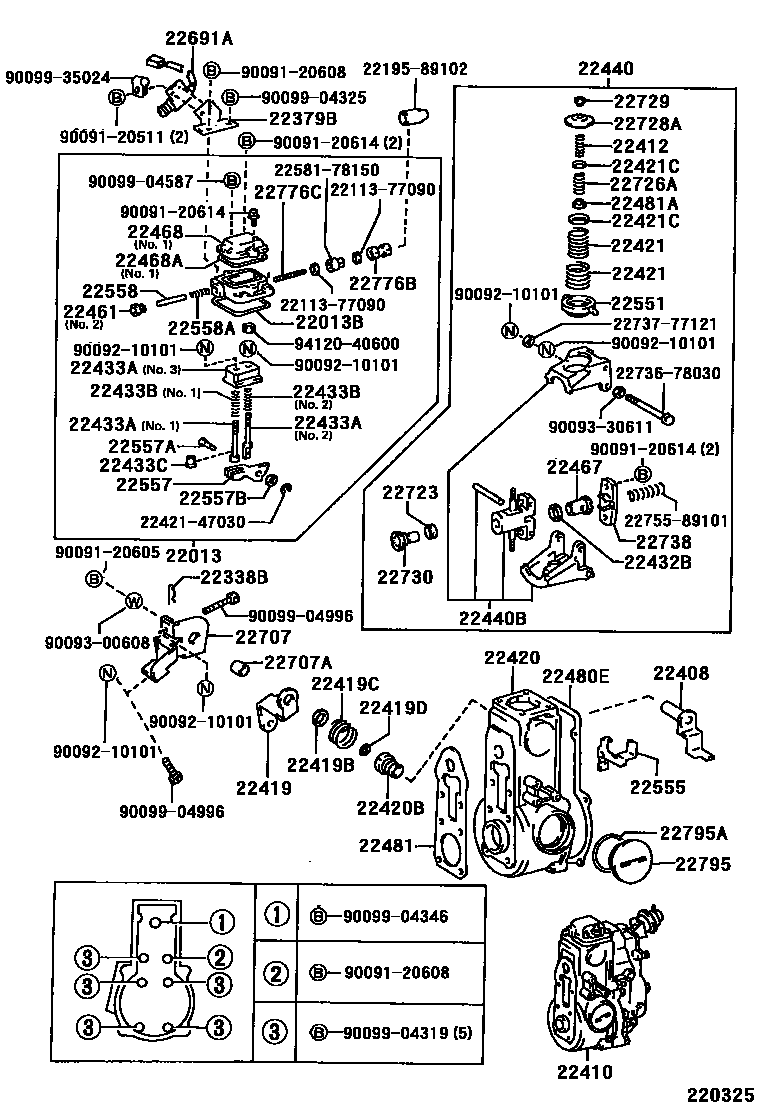

MECHANICAL GOVERNOR
22013HOUSING SUB-ASSY, FULLROAD STOPPER
22013BRING, O(FOR FULLROAD STOPPER HOUSING)
22338BPIN, LEVER CONECTING
22379BBRACKET, STOP WIRE
22408ARM, STOPPER
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
22412SPRING, MECHANICAL GOVERNOR
22419LEVER, STOP
22419BWASHER, PLATE(FOR STOPPER LEVER)
22419CSPRING, RETURN(FOR STOPPER LEVER)
22419DRING, O(FOR STOPPER LEVER)
22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR
22420BBUSH, MECHANICAL GOVERNOR HOUSING
22421SPRING, IDLING
22421CWASHER, IDLING SPRING
22432BSHIM
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
22433BSPRING(FOR ADAPTER SCREW)
22433CBUSH(FOR ADAPTER SCREW)
22440FLYWEIGHT SUB-ASSY
22440BFLYWEIGHT SUB-ASSY
22461PLUG, SCREW
22467NUT, ROUND
22468COVER, PLATE
22468AO, RING
22480COVER SUB-ASSY, GOVERNOR
22480EGASKET, GOVERNOR COVER
22481GASKET
22481ASEAT, SPRING, INNER
22551SEAT, SPRING(FOR FLYWEIGHT)
22555BRACKET, STOPPER
22557CAM, FULL STOP
22557APIN, CONNECTING(FOR FULL STOP CAM)
22557BWASHER, PLATE(FOR CONNECTING PIN)
22558SHAFT, SLIDING BLOCK
22558ASPRING(FOR SLIDING BLOCK SHAFT)
22691ASWITCH ASSY
22707LEVER, STOP
22707ACOLLAR, STOP LEVER
22723DAMPER, FLYWEIGHT HOLDER
22726ASPRING, SPEED CONTROL
22728AGUIDE, SPRING
22729NUT, ADJUSTING(FOR FLYWEIGHT)
22730BUSHING ASSY, CAMSHAFT
22738BUSHING, GUIDE(FOR FLYWEIGHT)
22776BNUT, CAP(FOR SCREW STOPPER)
22776CSCREW, STOPPER
22795PLUG, SCREW
22795AWASHER, SCREW PLUG
2211377090
main22113-77090
2219589102GASKET, BEARING COVER
main22195-89102
2242147030SPRING, IDLING
main22421-47030
2258178150
main22581-78150
2273678030BOLT, BELLCRANK
main22736-78030
2273777121
main22737-77121
2275589101
main22755-89101
9009120511
main90091-20511
9009120605
main90091-20605
9009120608
main90091-20608
9009120614
main90091-20614
9009210101
main90092-10101
9009300608
main90093-00608
9009330611
main90093-30611
9009904319
main90099-04319
9009904325
main90099-04325
9009904346
main90099-04346
9009904587
main90099-04587
9009904996
main90099-04996
9009935024
main90099-35024
9412040600
main94120-40600
70 parts on this diagram · 2 diagrams in section
