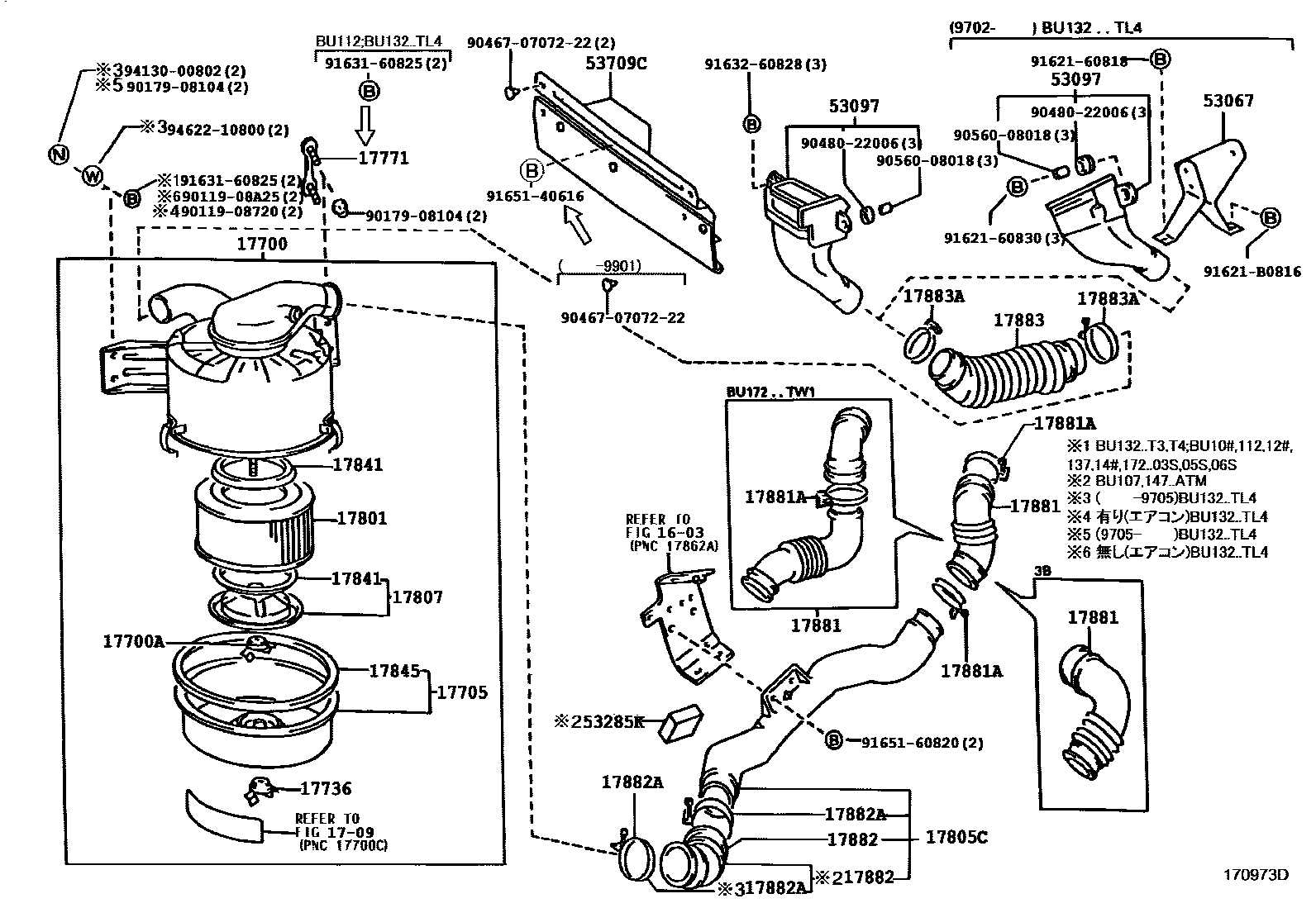

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1

1603

1709

17700CLEANER ASSY, AIR

main17700-58410i3RZFE..RZU100199505-199610

sub17700-58411

main17700-58411i15BF..BU132..T3,T4;15BF..BU102,107,112,122,137,142,147,172..03S,05S,06S199610-199703

sub17700-58412

main17700-58412i3RZFE..RZU100,140199703-199906

sub17700-58413

main17700-58420i3B..BU100,120,140199505-199610

sub17700-58421

main17700-58421i3B..BU100,120,140199610-199703

sub17700-58422

main17700-58422i3B..BU100,105,120,140,145199703-199906

main17700-58450i15BF..BU162,172,182..02S,03S199505-199703

sub17700-58451

main17700-58451i15BF..BU162,172,182..02S,03S199703-199906

main17700-58480i15BFT..BU212,222199505-199703

sub17700-58481

main17700-58481i15BFT..BU212,222199703-199808

sub17700-58482

main17700-58482i15BFT..BU212,222199808-199905

main17700-58490i15BF..BU202,212,222..03S199505-199703

sub17700-58491

main17700-58491i15BF..BU202,212,222..03S199703-199906

main17700-58500i15BF..BU212..06S,07S199505-199703

sub17700-58501

main17700-58501i15BF..BU212..06S,07S199703-199905

main17700-58590i15BFT..BU297199701-199702

sub17700-58591

main17700-58591i15BFT..BU297199702-199905

main17700-58600i15BF..BU132..TL4199702-199703

sub17700-58601

main17700-58601i15BF..BU132..TL4199703-199905

main17700-75140i15BFP..BU142199505-199610

sub17700-75141

main17700-75141i15BFP..BU142199610-199703

sub17700-75142

main17700-75142i15BFP..BU102,142199703-199905

main17700-78020iJ05C..XZU130199510-199610

sub17700-78021

main17700-78021iJ05C..XZU130199610-199703

sub17700-78022

main17700-78022iJ05C..XZU130,140199703-199905

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199905

17705CAP SUB-ASSY, AIR CLEANER

main17705-58300i3RZ#..RZU100199505-199905

main17705-58320i15BFP,3RZ#..RZU100,140199703

main17705-58330i15BF,15BFT..BU202,212,222,297199703

main17705-58340i15BF..BU162,172,182..02S,03S199703

17736NUT, AIR CLEANER CASE

main90175-06003iJ05C..XZU130,140199505-199905

17771BRACKET, AIR CLEANER INLET DUCT

main17771-56020iJ05C..XZU130,140199505-199905

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56020i3B..BU100,105,120,140,145199505

main17801-58030i15BFT..BU212,222,297199505-199905

main17801-66030iJ05C..XZU130,140199510-199905

main17801-68020i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505

main17801-73020i15BFP..BU102,142199505-199905

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-48040i15BFP..RZU100199605-200005

main17805-75060i3RZFP..RZU100199505-200005

main17805-75070i3RZFE..RZU100,140199505-200005

main17805-75120i3RZFP..RZU100199610-199708

main17805-95400i15BF..BU202,212,222..03S199505

17805CPIPE SUB-ASSY, AIR CLEANER, NO.1

main17805-58140i15BFT..BU212,222199505-199708

main17805-58151i15BF,3B..BU10#,112,12#,132,14#,172..03S,05S,06S199505-199610

main17805-58160i3RZFE..RZU100,140199505

main17805-58181i15BFP..RZU100199605-199905

main17805-58190i15BF..BU132..T3,T4;15BF,3B..BU10#,112,12#,137,14#,172..03S,05S,06S199610-199906

main17805-58200i15BF..BU132..TL4199702-199905

main17805-58210i15BFT..BU297199701-199905

main17805-78010iJ05C..XZU130,140199510-199905

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-58020i3RZ#..RZU100199505-199905

main17807-58030i3B..BU100,105,120,140,145199505

main17807-68010i15BFP,15BFT..BU102,142,212,222199505-199905

17841GASKET, FILTER ELEMENT

main17841-44030i3B..BU100,105,120,140,145199505

main17841-68010i15BFP,3RZ#..RZU100,140199505-199905

17845GASKET, AIR CLEANER CAP

main17845-58010i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199905

17881HOSE, AIR CLEANER, NO.1

main17880-58110i15BF..BU202,212,222199505

main17880-58130i15BF..BU172..05S199505-199905

main17880-58160i15BFT..BU297199701-199905

main17881-58140i3B..BU100,105,120,140,145199505-199906

main17881-58240i15BF..BU162,172,182..02S,03S199505-199605

sub17881-58241

main17881-58241i15BF..BU162,172,182..02S,03S199605

main17881-58250i15BFT..BU212,222199505-199805

sub17881-58251

main17881-58251i15BFT..BU212,222199805-199905

main17881-58270i15BF..BU102,107,112,122,13#,142,147199505-199906

main17881-58280i3RZFE..RZU100,140199505

main17881-58290i3RZFP..RZU100199505

main17881-58360i15BFP..BU102,142199605-199905

main17881-78030iJ05C..XZU130,140199510-199905

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-96001i15BF..BU202,212,222199505-199906

sub96111-10950

main90460-96001i15BFT..BU297199505

ID=96

sub96111-10950

main96111-10690i3B..BU100,105,120,140,145199505-199906

main96111-10690i3RZFP..RZU100199505

main96111-10750i15BFT..BU212,222,297;15BF..BU162,172,182..02S,03S199505-199905

main96111-10750i15BFP..RZU100199905

main96111-10780i15BF..BU172..05S;15BFT..BU212,222199505-199905

main96111-10780iJ05C..XZU130,140199512-199905

HOSE X PIPE

main96111-10800iJ05C..XZU130199510-199512

HOSE X PIPE

main96111-10800i3RZFE..RZU100,140199505

CONNECTOR SIDE

main96111-10830i15BFT..BU297199711-199905

main96111-10850i15BF,3B..BU10#,112,12#,13#,14#,172..03S,05S,06S199505-199906

main96111-10850i3RZ#..RZU100,140199505

PIPE SIDE

main96111-10880i15BF..BU102,107,112,122,13#,142,147,162,172,182199505-199906

main96111-10900iJ05C..XZU130,140199510-199905

HOSE X ENGINE

main96111-10930i15BFT..BU212,222199505-199905

17882HOSE, AIR CLEANER, NO.2

main17882-58170i3RZFP..RZU100199505-199905

main17882-58170i3RZFE..RZU100,140199505

AIR CLEANER SIDE

main17882-58180i3RZFE..RZU100,140199505

AIR FLOW METER SIDE

main17882-58200i15BF..BU132..T3,T4;15BF,15BFP,3B..BU10#,112,12#,137,14#,172..03S,05S,06S199605-199906

main17882-58210i15BF..BU132..TL4199702-199905

main17882-75040i3RZFE..RZU100,140199505

THROTTLE BODY SIDE

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10750i3RZFE..RZU100,140199505

AIR CLEANER SIDE

main96111-10750i15BF,15BFP,3B..BU10#,112,12#,13#,14#,172..03S,05S,06S199505-199906

main96111-10780i15BF..BU132..TL4199704-199905

main96111-10800i3RZFE..RZU100,140199505

THROTTLE BODY SIDE

main96111-10880i15BF..BU202,212,222199505-199906

main96111-10900i3RZFE..RZU100,140199505

AIR FLOW METER SIDE

17883HOSE, AIR CLEANER, NO.3

main17883-75020i15BFP,3RZ#..RZU100,140199505-199905

main17883-92600i15BF,15BFT..BU212,297..TW1,TW4199505-199905

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main96111-10750i15BF,15BFP,3B..BU10#,112,12#,13#,14#,172..03S,05S,06S199505

main96111-10750iJ05C..XZU130,140199505-199905

AIR CLEANER SIDE

main96111-10780i15BF..BU212..06S,07S199505-199905

main96111-10800i3RZ#..RZU100,140199505-199905

INLET SIDE

main96111-10800i3RZ#..RZU100,140199505

main96111-10930i15BF..BU212..06S,07S199505-199905

53067BRACKET SUB-ASSY, AIR CLEANER INLET

main53067-37010iBU132..TL4199702-199905

53097INLET SUB-ASSY

main53097-37080iBU202,212,222..03S..DSL199505

main53097-37090iXZU130,140199505-199905

main53097-37120iBU162,172,182..02S,03S199505

main53097-37170iBU297199701-199905

main53097-37180iBU132..TL4199702-199905

sub53097-37090

main53097-37210iRZU100..LPG199711-199901

sub53097-37211

main53097-37211iRZU100..LPG199901

main53097-92601iBU212..06S,07S199505-199905

main53097-95409iBU212,222..TD199505-199905

53285KSEAL, RADIATOR SIDE AIR, NO.1

main53285-37010iBU105,145;BU107,137,147..4FC199610-199905

53709CCOVER SUB-ASSY, AIR CLEANER INLET

main53709-37010iRZU100,140..EFI,LPGB199505-199711

main53709-37030iRZU100,140199505-199710

main53709-37060iRZU100..LPG199711

main53760-37010iXZU130,140199510-199905

main53760-37020iXZU130199510-199601

sub53760-37010

9011908720

main90119-08720

9011908A25

main90119-08A25

9017908104

main90179-08104

904670707222

main90467-0707222

9048022006

main90480-22006

9056008018

main90560-08018

9162160818

main91621-60818

9162160830

main91621-60830

91621B0816

main91621-B0816

9163160825

main91631-60825

9163260828

main91632-60828

9165140616

main91651-40616

9165160820

main91651-60820

9413000802

main94130-00802

9462210800

main94622-10800

38 parts on this diagram · 9 diagrams in section
