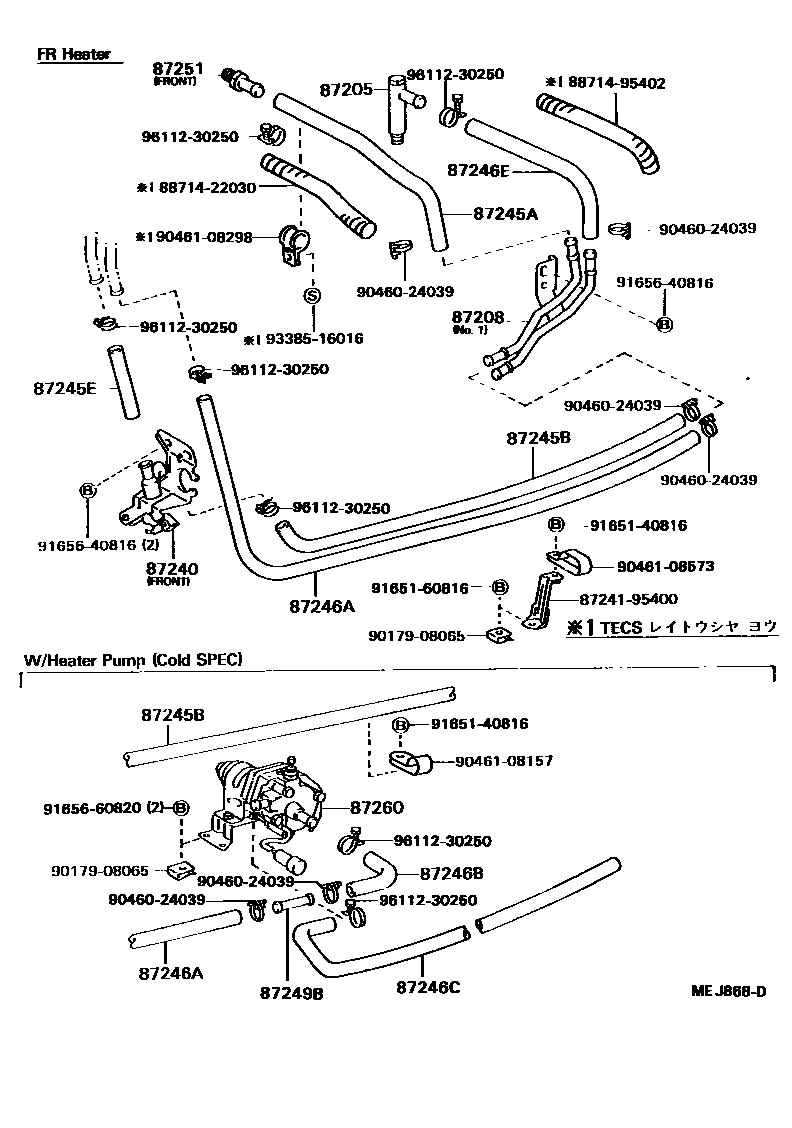

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30200iBU72,73,74198910-199505

main87251-95400iBU6#,70,8#,9#198808-198908

87208PIPE SUB-ASSY, HEATER WATER

main87208-37010iBU68..LPG199311-199505

main87208-92606iBU88..06S198808-199505

NO.2

main87208-92608iBU88..06S198808-198910

main87208-92609iBU88..06S199109-199505

main87208-92610iBU73..06S199109-199505

NO.2

main87208-92611iBU88..06S199109-199505

main87208-92613iBU70..09S199109-199309

NO.2

main87208-95402iBU78,88,9#; BU91,96..5F..TD..IV3;BU88..(T2,T3)..5F..(20T,30T)..IV3199008-199505

main87208-95409iBU66,87..4FC;BU60,61,68,83,84..20T; BU70..03S,06S198910-199008

main87208-95413iBU60..175; BU87..06S198809-199008

main87208-95414iBU72,74198910-199005

main87208-95416iBU60..175; BU87..06S198808-198809

NO.2

main87208-95417iBU60..175;BU70..09S; BU66..175; BU87..06S199109-199505

main88688-36150iBU66..T4..IV3;BU60,61..WT..20T..IV3;BU87..(T3,T4)..5F..20T..IV3;BU66..(T2,T3)..5F..WT..20T..IV3198910-199109

87240VALVE ASSY, HEATER WATER

main87240-92601iBU70..09S198808-199109

main87240-95409iBU6#,70,8#,9#198808-198908

87245AHOSE, HEATER WATER, INLET A

main87245-37050iBU68..LPG199311-199505

main87245-95469iBU72,73,74198910-199505

main87245-95480iBU78,88,91,94,96198908-199505

main88721-36070iBU61..WT..IV3;BU66..T4..IV3;BU87..(T3,T4)..5F..20T..IV3;BU66..(T2,T3)..5F..WT..20T..IV3199109-199210

main88721-36080iBU88..(T2,T3)..5F..(20T,30T)..IV3198808-198910

main99556-30300iBU6#,70,83,84,87..DSL198808-199505

87245BHOSE, HEATER WATER, INLET B

main87245-95463iBU78,88,91,94,96198908-199505

main99556-30440iBU73..06S199008-199505

main99556-30660iBU72,73,74198910-199505

main99556-30680iBU6#,70,83,84,87..DSL198808-199505

main99556-30700iBU73199005-199008

main99556-31000iBU68..LPG199311-199505

87245EHOSE, HEATER WATER, INLET E

main99556-30135iBU6#,70,8#,9#198808-198908

87246AHOSE, HEATER WATER, OUTLET A

main99556-30135iBU68..LPG199311-199505

main99556-30200iBU73199005-199008

main99556-30300iBU73..06S199008-199505

main99556-30500iBU66,67,87..4FC;BU60,61,68,83,84; BU70198808-199109

main99556-30700iBU85,88,9#198808-198908

main99556-30980iBU6#,70,72,73,74,83,84,87..DSL198808-199505

87246BHOSE, HEATER WATER, OUTLET B

main87245-95453iBU88,96..4FC..DSL199109-199505

main87245-95454iBU66,67,87..4FC;BU60,61,68,83,84; BU70198808-199109

main99556-30370iBU85,88,9#198808-198908

main99556-30500iBU73..06S199008-199505

main99556-30680iBU68..LPG199311-199505

main99556-30700iBU73199005-199008

87246CHOSE, HEATER WATER, OUTLET C

main87245-95443iBU88,96..4FC..DSL199109-199505

main87245-95471iBU66,67,87..4FC;BU60,61,68,70,83,84..DSL199109-199505

87246EHOSE, HEATER WATER, OUTLET E

main87245-37040iBU68..LPG199311-199505

main87245-95467iBU78,88,91,94,96198908-199505

main87245-95482iBU72,73,74198910-199505

main99556-30300iBU6#,70,83,84,87..DSL198808-199505

main99556-30500iBU61..WT..IV3;BU66..T4..IV3;BU87..(T3,T4)..5F..20T..IV3;BU66..(T2,T3)..5F..WT..20T..IV3199210-199505

main99556-30700iBU66..T4..IV3;BU60,61..WT..20T..IV3;BU87..(T3,T4)..5F..20T..IV3;BU66..(T2,T3)..5F..WT..20T..IV3198910-199109

87249BPIPE, HEATER WATER OUTLET, B

main87248-14090iBU66,67,87..4FC;BU60,61,68,83,84; BU70198808-199109

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-20160iBU6#,70,8#,9#198808-198908

main87251-29020iBU60..175; BU66,87..06S..(CBU,IV3)198808-199505

main87251-30200iBU6#,70,78,8#,9#..DSL,TD199009-199505

main87251-95403iBU72,73,74198910-199505

main88898-36030iBU87..(T3,T4)..5F..20T..IV3;BU60,61,66..TR..5F..WT..20T..IV3;BU88..(T2,T3)..5F..(20T,30T)..IV3198808-198910

87260PUMP ASSY, HEATER

main87260-95401iBU88,96..4FC..DSL199109-199505

main87260-95402iBU66,67,87..4FC;BU60,61,68,83,84; BU70198808-199109

8724195400CONTROLLER, WATER VALVE

main87241-95400

8871422030HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-22030

8871495402HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-95402

9017908065

main90179-08065

9046024039

main90460-24039

9046108157

main90461-08157

9046108298

main90461-08298

9046108573

main90461-08573

9165140816

main91651-40816

9165160816

main91651-60816

9165540816

main91655-40816

9165640816

main91656-40816

9165660820

main91656-60820

9338516016

main93385-16016

9611230250

main96112-30250

28 parts on this diagram · 8 diagrams in section
