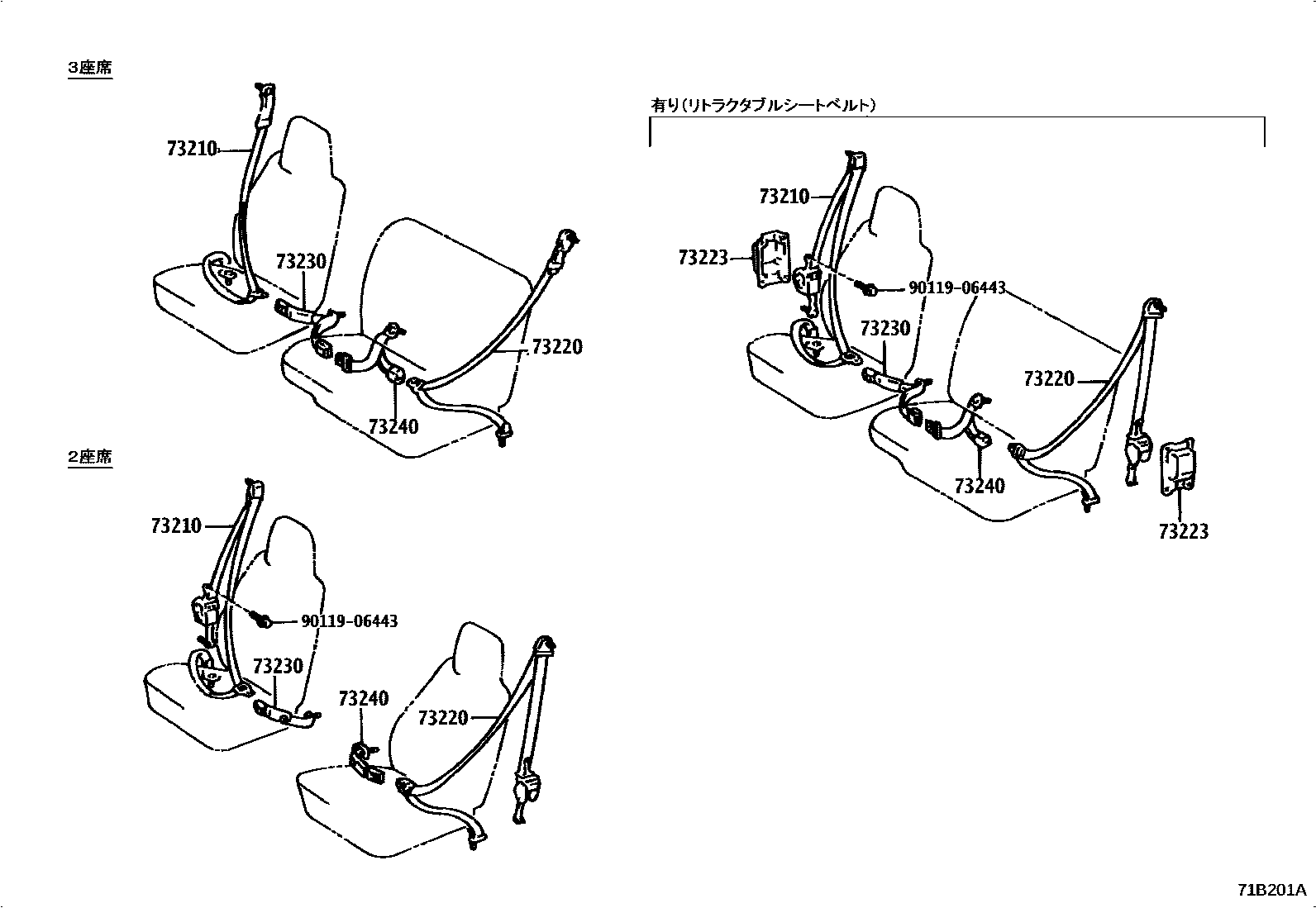

SEAT BELT

0001 1������� 0002 1�����

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-95420-04iBU6#,72,74,83,84,87..TOY198808-199109

BLUE,TRIM8#

main73210-95420-06iBU6#,70,72,73,74,83,84,87..DYN198808-199109

BROWN,TRIM4#

main73210-95420-B1iBU6#,70,72,73,74,83,84,87199109-199505

GRAY,TRIM1#

main73210-95421-04iBU78,85,88,9#..TOY198808-199109

BLUE,TRIM8#

main73210-95421-06iBU78,85,88,9#..DYN198808-199109

BROWN,TRIM4#

main73210-95421-B1iBU78,88,9#199109-199505

GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-95420-04iBU6#,72,74,83,84,87..TOY198808-199109

BLUE,TRIM8#

main73210-95420-06iBU6#,70,72,73,74,83,84,87..DYN198808-199109

BROWN,TRIM4#

main73210-95420-B1iBU6#,70,72,73,74,83,84,87199109-199505

GRAY,TRIM1#

main73210-95421-04iBU78,85,88,9#..TOY198808-199109

BLUE,TRIM8#

main73210-95421-06iBU78,85,88,9#..DYN198808-199109

BROWN,TRIM4#

main73210-95421-B1iBU78,88,9#199109-199505

GRAY,TRIM1#

73223COVER, SEAT BELT RETRACTOR

main73223-95400×2iBU60,66,70,87,88..HRF,SRF,TW1,TW2,TW4198808-199309

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-37050-B0iBU6#,70,78,8#,9#199309-199505

main73230-37060-B0iBU72,73,74199309-199505

GRAY,TRIM1#

main73230-37070-B0iBU60,61,66,67,84,87..(TR,V)..03S; BU94..T4;BU78,91,96;BU88..30T..TD;BU88..TOY..T3..5F..20T;BU88..TOY..(T2,T4)..20T;BU88..DYN..03S..20T..CBU;BU88..DYN..T3..5F..20T..IV3;BU88..DYN..(T2,T4)..20T..IV3199309-199505

main73230-95419-04iBU6#,78,8#,9#..TOY198808-199109

BLUE,TRIM8#

main73230-95419-06iBU6#,70,78,8#,9#..DYN198808-199109

BROWN,TRIM4#

main73230-95419-B1iBU6#,70,78,8#,9#199109-199309

main73230-95422-04iBU78,88,94..TOY..03S..DSL198910-199109

main73230-95422-06iBU78,88,94..DYN..03S..DSL198910-199109

main73230-95422-B1iBU78,88,94..03S..DSL199109-199309

main73230-95423-04iBU72,74..TOY198910-199109

BLUE,TRIM8#

main73230-95423-06iBU72,73,74..DYN198910-199109

BROWN,TRIM4#

main73230-95423-B1iBU72,73,74199109-199309

GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-95423-04iBU72,74..TOY198910-199109

BLUE,TRIM8#

main73230-95423-06iBU72,73,74..DYN198910-199109

BROWN,TRIM4#

main73230-95423-B1iBU72,73,74199109-199505

GRAY,TRIM1#

main73240-37050-B1iBU60,61,66,67,84,87..(TR,V)..03S199309-199505

main73240-95421-04iBU6#,83,84,87..TOY198808-199109

BLUE,TRIM8#

main73240-95421-06iBU6#,70,83,84,87..DYN198808-199109

BROWN,TRIM4#

main73240-95421-B2iBU6#,70,83,84,87199109-199505

main73240-95422-04iBU78,85,88,9#..TOY198808-199109

BLUE,TRIM8#

main73240-95422-06iBU78,85,88,9#..DYN198808-199109

BROWN,TRIM4#

main73240-95422-B2iBU78,88,9#199109-199505

main73240-95430-04iBU78,88,94..TOY..03S..DSL198910-199109

main73240-95430-06iBU78,88,94..DYN..03S..DSL198910-199109

main73240-95430-B1iBU78,88,9#..03S199309-199505

9011906443

main90119-06443

6 parts on this diagram · 2 diagrams in section
