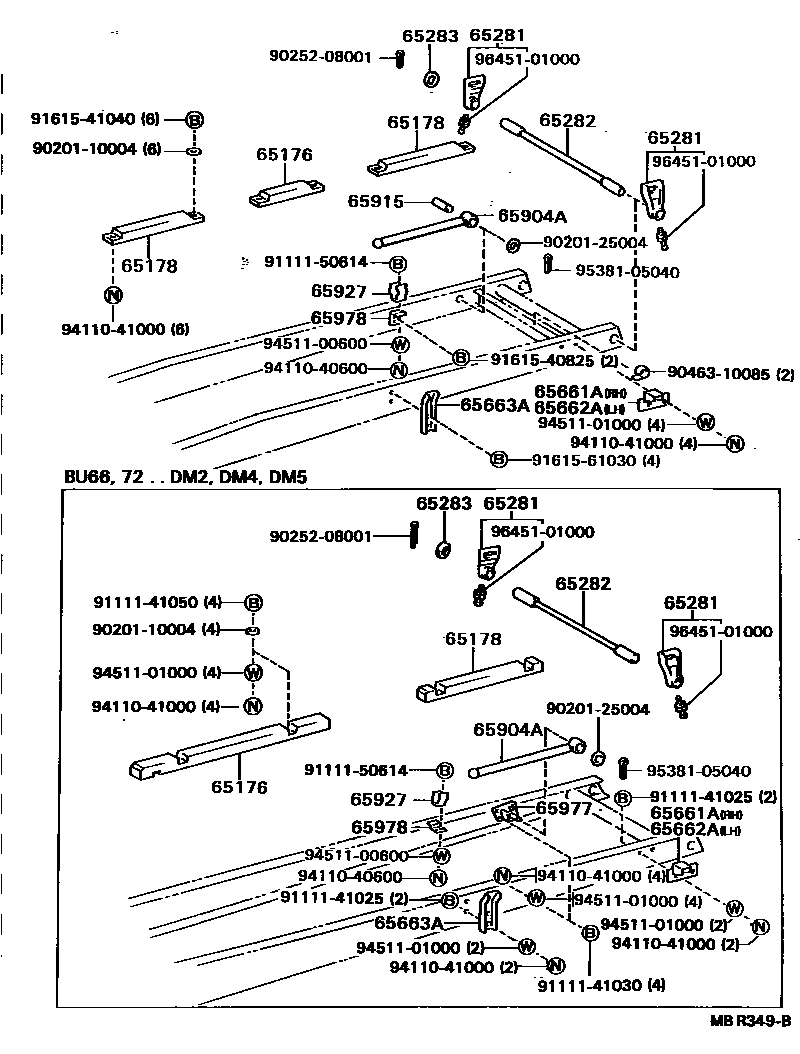

REAR BODY SUB FRAME

0001 1 0002 1 0003 1

65176SILL, BESSEL RAIL, FRONT

main65176-93100×2iBU67..DMP..CBU198808-199008

main65176-93101iBU66..(DM2,DM5)..CBU198808-199505

main65176-93102×2iBU72..(DM4,DM5)..CBU199002-199505

main65176-93300×2iBU66,72..DM3198910-199505

main65177-93100iBU66..(DM2,DM5)..CBU198808-199505

main65177-93101iBU72..DMP..CBU198910-199002

main65177-93102iBU67..4FC..CBU199008-199505

65178SILL, BESSEL RAIL, REAR

main65178-93100×4iBU67..DMP..CBU198808-199505

main65178-93101iBU66..(DM2,DM5)..CBU198808-199505

main65178-93102×2iBU72..(DM4,DM5)..CBU199002-199505

main65179-93100iBU66..(DM2,DM5)..CBU198808-199505

main65179-93101iBU72..DMP..CBU198910-199002

65281BRACKET, BEZEL HINGE

main65281-93101×2iBU66,67,72..(DM1,DM2,DM4,DM5)..CBU198808-199505

main65281-93301×2iBU66..DM3198808-199109

FRONT

main65281-93311×2iBU66..DM3198808-199109

REAR

65282SHAFT, BEZEL HINGE

main65206-93100iBU67..DMP..CBU198808-199001

main65206-93101iBU66,72..(DM2,DM4,DM5)..CBU198808-199001

main65282-93301×4iBU66,72..DM3199109-199505

65283STOPPER, BEZEL HINGE SHAFT

main65283-93102×2iBU66,67,72..(DM1,DM2,DM4,DM5)..CBU198808-199505

65661AGUIDE, ROLLER, RH

main65661-93102iBU67..DMP..CBU;BU67..4FC..IV3198808-199505

main65661-93103iBU66..(DM2,DM5)..CBU198808-199505

main65661-93104iBU72..(DM4,DM5)..CBU198910-199505

main65661-93301iBU66,72..DM3199109-199505

65662AGUIDE, ROLLER, LH

main65661-93102iBU67..DMP..CBU;BU67..4FC..IV3198808-199505

main65662-93102iBU66..(DM2,DM5)..CBU198808-199505

main65662-93103iBU72..(DM4,DM5)..CBU198910-199505

main65662-93301iBU66,72..DM3199109-199505

65663AGUIDE, VESSEL

main65663-93100×2iBU66,67,72..(DM1,DM2,DM4,DM5)..CBU198808-199505

65904ABAR SUB-ASSY, VESSEL STAND

main65904-93100iBU67..DMP..CBU198808-199505

main65904-93101iBU72..DM3;BU66..DMP..CBU198808-199307

main65904-93102iBU72..(DM4,DM5)..CBU198910-199307

65915PIN, BEZEL STAND

main65974-93100iBU67..DMP..CBU;BU67..4FC..IV3198808-199505

65927CLIP, BAR

main90468-12008iBU66,67,72..(DM1,DM2,DM4,DM5)..CBU; BU66,72..DM3198808-199505

65977BRACKET, VESSEL STAND

main65977-93101iBU66..(DM2,DM5)..CBU198808-199307

main65977-93102iBU72..(DM4,DM5)..CBU198910-199307

65978BRACKET, VESSEL STAND

main65978-93100iBU72..DM3;BU66,67..(DM1,DM3,DM4)..CBU198808-199505

main65978-93101iBU66..DM2..CBU198808-199307

main65978-93102iBU66,72..(DM4,DM5)..CBU198910-199307

main65978-93103iBU66,72..(DM2,DM4,DM5)..CBU199307-199505

9020110004

main90201-10004

9020125004

main90201-25004

9025208001

main90252-08001

9046310085

main90463-10085

9111141025

main91111-41025

9111141030

main91111-41030

9111141050

main91111-41050

9111150614

main91111-50614

9161540825

main91615-40825

9161541040

main91615-41040

9161561030

main91615-61030

9411040600

main94110-40600

9411041000

main94110-41000

9451100600

main94511-00600

9451101000

main94511-01000

9538105040

main95381-05040

9645101000

main96451-01000

30 parts on this diagram · 3 diagrams in section
