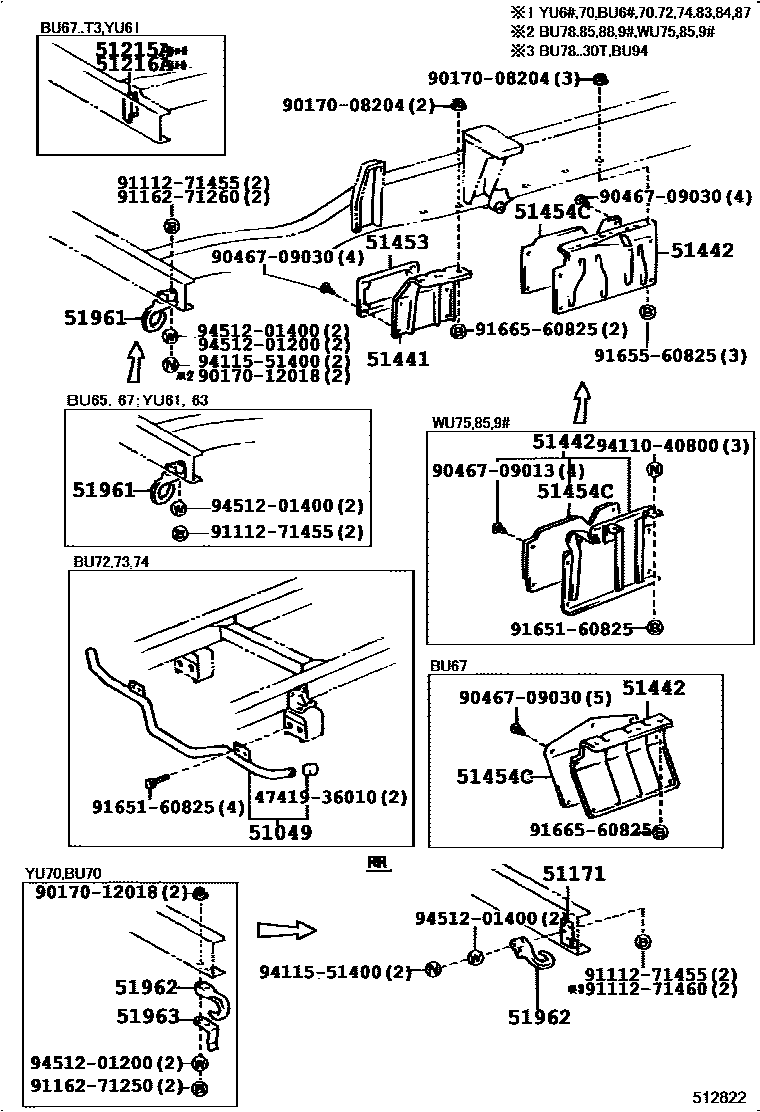

SUSPENSION CROSSMEMBER & UNDER COVER

51049BAR SUB-ASSY, UNDER GUARD, FRONT

main51040-36010iBU72,73,74198910-199505

51171REINFORCEMENT, SIDE RAIL REAR HOOK

main51171-36060iBU60,61,66,70..ST198808-199505

main51171-36070iBU60,61,66,68..(DM1,DM3,T2,T3,T4,TW1,TW2,TW4)..WT198808-199505

main51171-36080iBU74..30T..IV3;BU74,87..(T3,TW1)..CBU; BU87..06S..IV3199309-199505

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-36040iBU67198808-199505

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51215-36040iBU67198808-199505

51441COVER, ENGINE UNDER, NO.1

main51407-36050iBU60,61,66,68,83,84,87..DSL198808-199505

main51407-36060iBU67198808-198906

main51407-36061iBU67198906-199505

51442COVER, ENGINE UNDER, NO.2

main51406-36060iBU67198808-199505

main51443-36021iBU61,66,83,84..03S;BU60,87..5F..03S..WT198901-198910

main51443-36022iBU87..V;BU87..T4..5F;BU87..5F..275;BU60..WT..20T;BU87..(T2,T3)..(20T,30T);BU61,66,68,83,84..03S..DSL198910-199505

51453SILENCER, ENGINE UNDER COVER, FRONT

main51453-36020iBU6#,83,84,87..DSL198808-199505

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-36010iBU60..WT..20T;BU61,66,83,84,87..03S198808-198901

main51454-36020iBU67198808-199505

51961HOOK, NO.1

main51961-36030iBU78,85,88,9#198808-199505

main51961-36040iBU6#,70,72,73,74,83,84,87198808-199505

51962HOOK, NO.2

main51961-36020iBU74,78,8#,9#198808-199001

main51961-36040iBU6#,72198808-199001

main51961-60010iBU70198808-199505

51963STOPPER, HOOK WIRE

main51963-35010iBU70198808-199505

4741936010PLUG, HOLE(FOR FRONT BRAKE)

main47419-36010

9017008204

main90170-08204

9017012018

main90170-12018

9046709013

main90467-09013

9046709030

main90467-09030

9111271455

main91112-71455

9111271460

main91112-71460

9116271250

main91162-71250

9116271260

main91162-71260

9165160825

main91651-60825

9165560825

main91655-60825

9166560825

main91665-60825

9411040800

main94110-40800

9411551400

main94115-51400

9451201200

main94512-01200

9451201400

main94512-01400

27 parts on this diagram · 1 diagram in section
