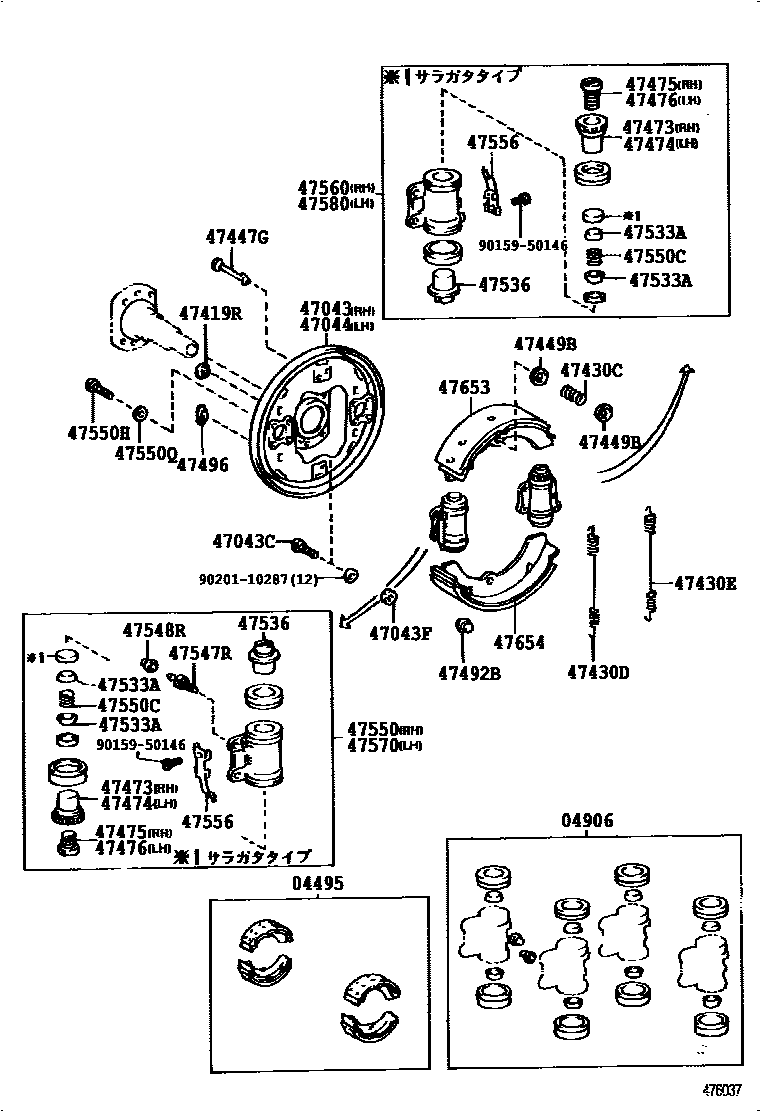

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1 0004 1 0005 1��(�-� ������) 0007 1��(�-� ������)

04495SHOE KIT, REAR BRAKE

main04494-36070iBU90,91,95,96198808-199111

main04494-36080iBU60,61,66,70..ST198808-199109

main04494-36090iBU60,61,66,83,84,87..T4,TW4; BU72..DM5,T4;BU60,61,66,84,87,88..DM2,T2,TW2198911-199109

main04494-36150iBU60,66..DYN..T4..5F..IV3; BU61,84..T4;BU83..TOY..IV3;BU87..TOY..T4..5F;BU87..DYN..T4..CBU; BU87..DYN..T4..5F..IV3199203-199309

main04494-36160iBU60,61,66,70..ST199109-199505

main04494-36170iBU91,96199111-199505

main04495-25050iBU60,61,66,83,84,87..DM5,T4,TW4; BU60,61,66,83,84,87..T4..5F198911-199008

main04495-36070iBU87..V;BU72,87..DM4,T3,TW1;BU66..(275,30T)..IV3;BU60,66..(DM3,T3,TW1)..WT..(CBU,IV4);BU67,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1; BU87..V;BU78,94..DSL;BU88..T4..5F..30T;BU87,88..T3..5F..DSL198808-199103

main04495-36080iBU87..V;BU60,66,87..(T3,TW1)..WT;BU67,78,85,88,94..T3,T4,TW1198808-199109

main04495-36110iBU87..V;BU78,94..DSL;BU88..T4..5F..30T;BU87,88..T3..5F..DSL199105-199109

main04496-36070iBU90,91,95,96198808-199111

REBUILT

main04496-36080iBU60,61,66,70..ST198808-199505

REBUILT

main04496-36090iBU60,61,66,83,84,87..T4,TW4; BU72..DM5,T4;BU60,61,66,84,87,88..DM2,T2,TW2198911-199109

main04497-36070iBU88..T3..5F..20T..DSL..IV3199103-199105

main04497-36080iBU87..V;BU60,66,87..(T3,TW1)..WT;BU67,78,85,88,94..T3,T4,TW1198808-199109

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36060iBU90,91,95,96198808-199505

main04906-36070iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,85,88,94..(DM1,T3,T4,TW1)..5F198808-199303

main04906-36080iBU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3)198911-199505

main04906-36090iBU67,73,78..5F;BU60,66,72..(DM3,DM4,T3,TW1)..5F..WT198808-199505

main04906-36120iBU66..T3..4FC..WT; BU87..06S;BU88,94..TD;BU67,78,85..TR;BU88..(T4,TW1)..5F..20T;BU60,66..(T3,TW1)..5F..WT; BU87..4FC..275;BU88..(T3,T4)..4FC; BU87..V;BU94..DSL;BU88..T4..5F..30T;BU87,88..T3..5F..DSL198808-199303

main04906-36130iBU66..4FC..ST;BU88..T2..4FC;BU66,87..(T2,T4)..4FC198808-199505

main04906-36140iBU66..30T..CBU; BU66..30T..IV3;BU67,73,78..TR..03S;BU60,66..T3..5F..WT..(20T,275)199309-199505

main04906-36150iBU60,66,87..DYN..T4..5F..IV3; BU60..TW4;BU61,83,84..T4;BU87..4FC..20T;BU66..DYN..175..IV3;BU66..TOY..(T4,TW4);BU60,87..TOY..T4..5F;BU60,87..DYN..T4..CBU;BU66..DYN..T4..4FC..IV3;BU66..DYN..(T4,TW4)..CBU199203-199303

main04906-36160iBU72..DM5,T4198910-199303

main04906-36170iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,88,94..(DM1,T3,T4,TW1)..5F..(DSL,TD)199303-199505

main04906-36180iBU74..30T; BU87..T3..5F;BU88..30T..TD;BU88..20T..TD..IV3;BU88,94..T4..5F..20T;BU88..T3..5F..20T..CBU; BU87..V;BU94..T3;BU88..T4..5F..30T..IV3;BU88..T3..5F..DSL..IV3;BU88..5F..(275,30T)..DSL..CBU199309-199505

main04906-36200iBU72..DM5,T4199303-199505

main04906-36210iBU60,66,87..DYN..T4..5F..IV3199303-199305

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36080iBU90,91,95,96198808-199505

main47043-36090iBU60,61,66,70..ST198808-199505

main47043-36100iBU83..CBU;BU83..DYN..IV3;BU60,61,66,72,84,87,88..(DM2,DM5,T2,T4,TW2,TW4)..(175,20T); BU83..TOY..IV3198808-198911

main47043-36110iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1198808-199210

main47043-36140iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,88,94..DM1,DM4,T3,T4,TW1199210-199505

main47043-36150iBU87..T3..20T199309-199505

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10019×8iBU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4198911-199505

main90114-14004×12iBU90,91,95,96198808-199505

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10178×8iBU83..CBU;BU83..DYN..IV3;BU60,61,66,72,84,87,88..(DM2,DM5,T2,T4,TW2,TW4)..(175,20T); BU83..TOY..IV3198808-198911

main90170-14002×12iBU90,91,95,96198808-199505

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36040iBU90,91,95,96198808-199505

main47044-36090iBU60,61,66,70..ST198808-199505

main47044-36100iBU83..CBU;BU83..DYN..IV3;BU60,61,66,72,84,87,88..(DM2,DM5,T2,T4,TW2,TW4)..(175,20T); BU83..TOY..IV3198808-198911

main47044-36110iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1198808-199210

main47044-36140iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,88,94..DM1,DM4,T3,T4,TW1199210-199505

main47044-36150iBU87..T3..20T199309-199505

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011×4iBU6#,7#,8#,94..5F..(DSL,TD)198911-199505

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iBU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9#; BU83..TOY..IV3198808-198911

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×2iBU60,61,66,70..ST198808-199505

main90507-29002×2iBU83..CBU;BU83..DYN..IV3;BU60,61,66,72,84,87,88..(DM2,DM5,T2,T4,TW2,TW4)..(175,20T); BU83..TOY..IV3198808-198911

main90507-29006×2iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1198808-199505

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×2iBU60,61,66,70..ST198808-199505

main90507-29002×2iBU83..CBU;BU83..DYN..IV3;BU60,61,66,72,84,87,88..(DM2,DM5,T2,T4,TW2,TW4)..(175,20T); BU83..TOY..IV3198808-198911

main90507-29006×2iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1198808-199505

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iBU83..CBU;BU83..DYN..IV3;BU60,61,66,72,84,87,88..(DM2,DM5,T2,T4,TW2,TW4)..(175,20T); BU83..TOY..IV3198808-198911

main47447-36020×4iBU60,61,66,70..ST198808-199505

main47447-60010×4iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1198808-199505

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iBU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9#; BU83..TOY..IV3198808-198911

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-36023×2iBU90,91,95,96198808-199505

main47551-36120×2iBU72..DM5,T4198910-199303

main47551-36130×2iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,85,88,94..(DM1,T3,T4,TW1)..5F198808-199303

main47551-36150×2iBU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3)198808-198911

main47551-36160×2iBU67,73,78..5F;BU60,66,72..(DM3,DM4,T3,TW1)..5F..WT198808-199505

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47552-36023×2iBU90,91,95,96198808-199505

main47552-36120×2iBU72..DM5,T4198910-199303

main47552-36130×2iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,85,88,94..(DM1,T3,T4,TW1)..5F198808-199303

main47552-36150×2iBU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3)198808-198911

main47552-36160×2iBU67,73,78..5F;BU60,66,72..(DM3,DM4,T3,TW1)..5F..WT198808-199505

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36030×2iBU90,91,95,96198808-199505

main47553-36050×2iBU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3)198911-199505

main47553-36060×2iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..5F..WT;BU67,68,73,74,78,85,88,94..(DM1,DM4,T3,T4,TW1)..5F..(DSL,TD)198808-199505

main47553-36070×2iBU87..V;BU60,66..T4..5F;BU88..T3..5F..DSL..CBU;BU88..T4..5F..30T..CBU;BU88..5F..(275,30T)..DSL..IV3;BU61,78,83,84,87,94..(T3,T4)..5F..WT..DSL; BU94..TD;BU87..06S;BU88..30T..TD;BU88..20T..TD..CBU;BU88..T3..5F..20T..IV3;BU88..(T4,TW1)..5F..20T;BU60,66,67..(T3,TW1,TW4)..5F..WT199103-199105

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36030×2iBU90,91,95,96198808-199505

main47554-36050×2iBU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3)198808-198911

main47554-36060×2iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..5F..WT;BU67,68,73,74,78,85,88,94..(DM1,DM4,T3,T4,TW1)..5F..(DSL,TD)198808-199505

main47554-36070×2iBU87..06S;BU88,94..TD;BU88..(T4,TW1)..5F..20T;BU60,66,67,85..(T3,TW1,TW4)..5F..WT; BU87..V;BU60,66..T4..5F;BU88..T3..5F..DSL;BU88..T4..5F..30T;BU61,78,83,84,87,94..(T3,T4)..5F..WT..DSL198808-199103

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×4iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,88,94..DM1,DM4,T3,T4,TW1199210-199505

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010×8iBU60,66,68,87,88..(DM1,TW1,TW4)..WT..DSL; BU72,74..TR..20T; BU74..30T;BU61,73,84..T2,T3;BU60,66..T3..5F..ST;BU60,66,87,88..(T1,T2)..5F; BU87..V;BU94..T3;BU66..30T..CBU;BU88..T4..5F..30T..IV3;BU88..T3..5F..DSL..IV3;BU88..5F..(275,30T)..DSL..CBU; BU88..30T..TD;BU66..30T..IV3;BU88..20T..TD..IV3;BU88,94..T4..5F..20T;BU88..T3..5F..20T..CBU;BU66..(T3,T4)..5F..WT..(20T,275);BU60,61,67,78,84,87..(T3,T4)..5F..WT199309-199505

47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-25010×8iBU90,91,95,96198808-199505

main47533-30011×8iBU60,66,87..DYN..T4..5F..IV3; BU60..TW4;BU87..4FC..20T;BU66..275,30T,IV4;BU87..TOY..T4..5F;BU60..TOY..T4..IV3;BU66..TOY..(T4,TW4);BU66..DYN..175..IV3;BU60..(T3,T4)..WT..CBU;BU66..DYN..T4..4FC..IV3;BU66,87..DYN..(T4,TW4)..CBU;BU61,67,78,83,84..(T3,T4)..WT199203-199303

main47533-40013×8iBU83..TOY..IV3;BU61,78,84,87..T4..5F199203-199303

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47531-36032×4iBU90,91,95,96198808-199505

main47536-36020×4iBU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)198911-199505

main47536-36030×4iBU78198910-199303

main47536-36040×4iBU60,66..T3..WT..20T..IV3; BU67,78..TR;BU60..T3..WT..CBU;BU66..275,30T,IV4; BU87..V;BU66..DM1;BU87..T3,TW1;BU68,74,85,88,94..DM1,T3,T4,TW1198808-199303

main47536-36050×4iBU72..DM5,T4198910-199303

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iBU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9#; BU83..TOY..IV3198808-198911

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iBU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9#; BU83..TOY..IV3198808-198911

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-36070iBU90,91,95,96198808-199505

main47550-36100iBU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3)198808-198911

main47550-36110iBU67,73,78..5F;BU60,66,72..(DM3,DM4,T3,TW1)..5F..WT198808-199505

main47550-36120iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,85,88,94..(DM1,T3,T4,TW1)..5F198808-199303

main47550-36130iBU61,84;BU88..T2..5F;BU83..TOY..IV3;BU87..(T2,T4)..5F; BU83..CBU;BU60..T2,T4;BU66..T4..5F;BU60..T3..ST;BU83..DYN..IV3199203-199309

main47550-36140iBU66..T3..4FC..WT; BU74; BU87..06S;BU67,78..TR;BU88,94..TD;BU88..(T4,TW1)..5F..20T;BU60,66..(T3,TW1)..5F..WT; BU87..V;BU94..DSL;BU88..T4..5F..30T;BU87,88..T3..5F..DSL199109-199303

main47550-36150iBU87..V;BU60,66,87..(T3,TW1)..WT;BU67,78,85,88,94..T3,T4,TW1198808-199109

main47550-36160iBU66..30T..CBU; BU66..30T..IV3;BU67,73,78..TR..03S;BU60,66..T3..5F..WT..(20T,275)199309-199505

main47550-36170iBU60,61,66,83,84,87..T4,TW4199303-199305

main47550-36171iBU60,66,87..DYN..T4..5F..IV3199303-199305

main47550-36190iBU72..DM5,T4198910-199303

main47550-36191iBU72..DM5,T4199303-199505

main47550-36230iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,88,94..(DM1,T3,T4,TW1)..5F..(DSL,TD)199303-199505

main47550-36240iBU60,66..T3..5F..WT..20T..IV3; BU67,78..TR;BU60..T3..WT..CBU;BU66..275,30T,IV4;BU66,68,87,88..(DM1,TW1)..20T..DSL199310-199505

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122×4iBU60,66,87..DYN..T4..5F..IV3; BU60..TW4;BU87..4FC..20T;BU66..275,30T,IV4;BU87..TOY..T4..5F;BU60..TOY..T4..IV3;BU66..TOY..(T4,TW4);BU66..DYN..175..IV3;BU60..(T3,T4)..WT..CBU;BU66..DYN..T4..4FC..IV3;BU66,87..DYN..(T4,TW4)..CBU;BU61,67,78,83,84..(T3,T4)..WT199203-199303

main90501-09735×4iBU83..TOY..IV3;BU61,78,84,87..T4..5F199203-199303

main90501-10759×4iBU90,91,95,96198808-199505

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081×16iBU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)198911-199505

main90101-10127×16iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1198808-199505

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002×16iBU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3); BU83..TOY..IV3198808-198911

main90201-10287×16iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1198808-199505

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-36020×4iBU90,91,95,96198808-199505

main47555-36051×4iBU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,94..5F198808-198911

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36070iBU90,91,95,96198808-199505

main47560-36100iBU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3)198808-198911

main47560-36110iBU67,73,78..5F;BU60,66,72..(DM3,DM4,T3,TW1)..5F..WT198808-199505

main47560-36120iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,85,88,94..(DM1,T3,T4,TW1)..5F198808-199303

main47560-36130iBU61,84;BU88..T2..5F;BU83..TOY..IV3;BU87..(T2,T4)..5F; BU83..CBU;BU60..T2,T4;BU66..T4..5F;BU60..T3..ST;BU83..DYN..IV3199203-199309

main47560-36140iBU66..T3..4FC..WT; BU74; BU87..06S;BU67,78..TR;BU88,94..TD;BU88..(T4,TW1)..5F..20T;BU60,66..(T3,TW1)..5F..WT; BU87..V;BU94..DSL;BU88..T4..5F..30T;BU87,88..T3..5F..DSL199109-199303

main47560-36150iBU87..V;BU60,66,87..(T3,TW1)..WT;BU67,78,85,88,94..T3,T4,TW1198808-199109

main47560-36160iBU72..T3;BU73,78..03S198910-199309

main47560-36170iBU60,61,66,83,84,87..T4,TW4199303-199305

main47560-36171iBU72..T4199303-199505

main47560-36190iBU72..DM5,T4198910-199303

main47560-36191iBU72..DM5,T4199303-199505

main47560-36230iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,88,94..(DM1,T3,T4,TW1)..5F..(DSL,TD)199303-199505

main47560-36240iBU66..T3..4FC..WT; BU68..LPG;BU87..T3..4FC;BU88..(T3,T4)..4FC; BU74..20T199303-199505

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-36070iBU90,91,95,96198808-199505

main47570-36100iBU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3)198911-199505

main47570-36110iBU67,73,78..5F;BU60,66,72..(DM3,DM4,T3,TW1)..5F..WT198808-199505

main47570-36120iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,85,88,94..(DM1,T3,T4,TW1)..5F198808-199303

main47570-36130iBU61,83,84;BU60..T3..ST;BU66..T4..5F;BU88..T2..5F;BU60,87..(T2,T4)..5F198808-199203

main47570-36140iBU66..T3..4FC..WT; BU74; BU87..06S;BU67,78..TR;BU88,94..TD;BU88..(T4,TW1)..5F..20T;BU60,66..(T3,TW1)..5F..WT; BU87..V;BU94..DSL;BU88..T4..5F..30T;BU87,88..T3..5F..DSL199109-199303

main47570-36150iBU87..V;BU60,66,87..(T3,TW1)..WT;BU67,78,85,88,94..T3,T4,TW1198808-199109

main47570-36160iBU72..T3;BU73,78..03S198910-199309

main47570-36170iBU60,66,87..DYN..T4..5F..IV3; BU60..TW4;BU61,83,84..T4;BU87..4FC..20T;BU66..DYN..175..IV3;BU66..TOY..(T4,TW4);BU60,87..TOY..T4..5F;BU60,87..DYN..T4..CBU;BU66..DYN..T4..4FC..IV3;BU66..DYN..(T4,TW4)..CBU199203-199303

main47570-36171iBU60,66,87..DYN..T4..5F..IV3199303-199305

main47570-36190iBU72..DM5,T4198910-199303

main47570-36191iBU72..DM5,T4199303-199505

main47570-36230iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,88,94..(DM1,T3,T4,TW1)..5F..(DSL,TD)199303-199505

main47570-36240iBU74..30T; BU87..T3..5F;BU88..30T..TD;BU88..20T..TD..IV3;BU88,94..T4..5F..20T;BU88..T3..5F..20T..CBU; BU87..V;BU94..T3;BU88..T4..5F..30T..IV3;BU88..T3..5F..DSL..IV3;BU88..5F..(275,30T)..DSL..CBU199309-199505

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36070iBU90,91,95,96198808-199505

main47580-36100iBU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3)198911-199505

main47580-36110iBU67,73,78..5F;BU60,66,72..(DM3,DM4,T3,TW1)..5F..WT198808-199505

main47580-36120iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,85,88,94..(DM1,T3,T4,TW1)..5F198808-199303

main47580-36130iBU61,84;BU88..T2..5F;BU83..TOY..IV3;BU87..(T2,T4)..5F; BU83..CBU;BU60..T2,T4;BU66..T4..5F;BU60..T3..ST;BU83..DYN..IV3199203-199309

main47580-36140iBU66..T3..4FC..WT; BU74; BU87..06S;BU67,78..TR;BU88,94..TD;BU88..(T4,TW1)..5F..20T;BU60,66..(T3,TW1)..5F..WT; BU87..V;BU94..DSL;BU88..T4..5F..30T;BU87,88..T3..5F..DSL199109-199303

main47580-36150iBU87..V;BU60,66,87..(T3,TW1)..WT;BU67,78,85,88,94..T3,T4,TW1198808-199109

main47580-36160iBU66..30T..CBU; BU66..30T..IV3;BU67,73,78..TR..03S;BU60,66..T3..5F..WT..(20T,275)199309-199505

main47580-36170iBU60,61,66,83,84,87..T4,TW4199303-199305

main47580-36171iBU60,66,87..DYN..T4..5F..IV3; BU60..TW4;BU87..T4..4FC;BU61,83,84..T4;BU66..DYN..175..IV3;BU66..TOY..(T4,TW4);BU60,87..TOY..T4..5F;BU66..DYN..T4..4FC..IV3;BU66..DYN..(T4,TW4)..CBU;BU60,87..DYN..T4..5F..CBU199305-199310

main47580-36190iBU72..DM5,T4198910-199303

main47580-36191iBU72..DM5,T4199303-199505

main47580-36230iBU60,66..T3..5F..WT..20T..IV3; BU87..V;BU66..DM1;BU87..(T3,TW1)..5F;BU68,74,88,94..(DM1,T3,T4,TW1)..5F..(DSL,TD)199303-199505

main47580-36240iBU66..T3..4FC..WT; BU68..LPG;BU87..T3..4FC;BU88..(T3,T4)..4FC; BU74..20T199303-199505

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-36090×2iBU90,91,95,96198808-199111

main47651-36120×2iBU87..V;BU66..(275,30T)..IV3;BU72,87..(DM4,T3,TW1)..5F;BU60,66..(DM3,T3,TW1)..WT..(CBU,IV4);BU67,73,74,78,85,88,94..(DM1,DM4,T3,T4,TW1)..5F198808-199103

main47655-36040×2iBU60,66..T3..WT..20T..IV3; BU87..V;BU87..T3,TW1;BU60..T3..WT..CBU;BU66..275,30T,IV4;BU67,78,88,94..T3,T4,TW1199103-199109

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-36090×2iBU90,91,95,96198808-199111

main47651-36120×2iBU87..V;BU66..(275,30T)..IV3;BU72,87..(DM4,T3,TW1)..5F;BU60,66..(DM3,T3,TW1)..WT..(CBU,IV4);BU67,73,74,78,85,88,94..(DM1,DM4,T3,T4,TW1)..5F198808-199103

main47655-36040×2iBU87..4FC..275;BU88..(T3,T4)..4FC; BU87..V;BU87..(T3,TW1)..5F;BU60,66..(T3,TW1)..WT;BU67,78,85,88,94..(T3,T4,TW1)..5F198808-199103

9015950146

main90159-50146

9020110287

main90201-10287

34 parts on this diagram · 5 diagrams in section
