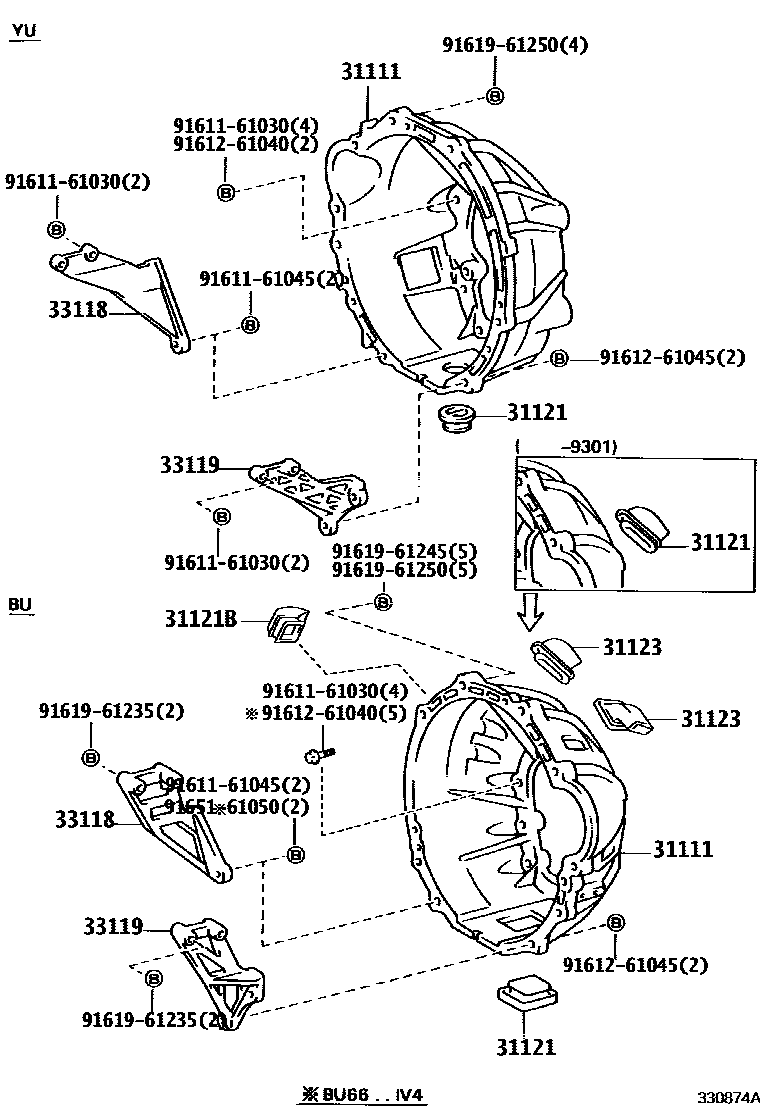

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

31111HOUSING, CLUTCH

main31111-36221iBU6#,70,8#,9#..5F..(CBU,IV3)198808-198910

main31111-36222iBU6#,70,83,84,87..5F..(CBU,IV3)199004-199301

main31111-36260iBU66..IV4198808-199505

main31111-36270iBU72,73,74..CBU,IV3198910-199410

main31111-36271iBU72,73,74..CBU,IV3199410-199505

main31111-36280iBU78,88,9#..5F198910-199410

main31111-36281iBU78,88,9#..5F199410-199505

main31111-36300iBU73..IV4199005-199505

main31111-36310iBU6#,70,83,84,87..5F..DSL..(CBU,IV3)199301-199505

main31111-36330iBU68..LPG199311-199505

31121COVER, CLUTCH HOUSING, NO.1

main31121-36040iBU6#,70,83,84,87..5F; BU72,73,74,78,88,9#..5F198910-199505

main31121-36070iBU72,73,74; BU78,88,9#..5F198910-199505

main31121-36080iBU72,73,74198910-199505

UPR,LH

31121BCOVER, CLUTCH HOUSING, NO.3

main31121-28030iBU6#,70,83,84,87..5F..DSL..(CBU,IV3)199301-199505

main31121-36090×2iBU72,73,74..CBU,IV3199002-199505

31123COVER, CLUTCH HOUSING, NO.2

main31121-28040×2iBU6#,70,83,84,87..5F..(CBU,IV3)199301-199505

33118PLATE, STIFFENER, RH(MTM)

main33118-26010iBU68..LPG199311-199505

main33118-36021iBU6#,70,78,84,87,88,9#..5F..(03S,06S)..(DSL,TD)199302-199505

main33118-36040iBU72,73,74198910-199505

33119PLATE, STIFFENER, LH(MTM)

main33119-26020iBU68..LPG199311-199505

main33119-36020iBU85,90,95198808-198910

main33119-36040iBU6#,70,83,84,87,88,91,94,96..5F198808-198910

main33119-36041iBU6#,7#,8#,9#..5F198910-199302

main33119-36061iBU66..T3..5F..WT..(20T,30T)..IV3199109-199505

9161161030

main91611-61030

9161161045

main91611-61045

9161261040

main91612-61040

9161261045

main91612-61045

9161961235

main91619-61235

9161961245

main91619-61245

9161961250

main91619-61250

9165161050

main91651-61050

14 parts on this diagram · 7 diagrams in section
