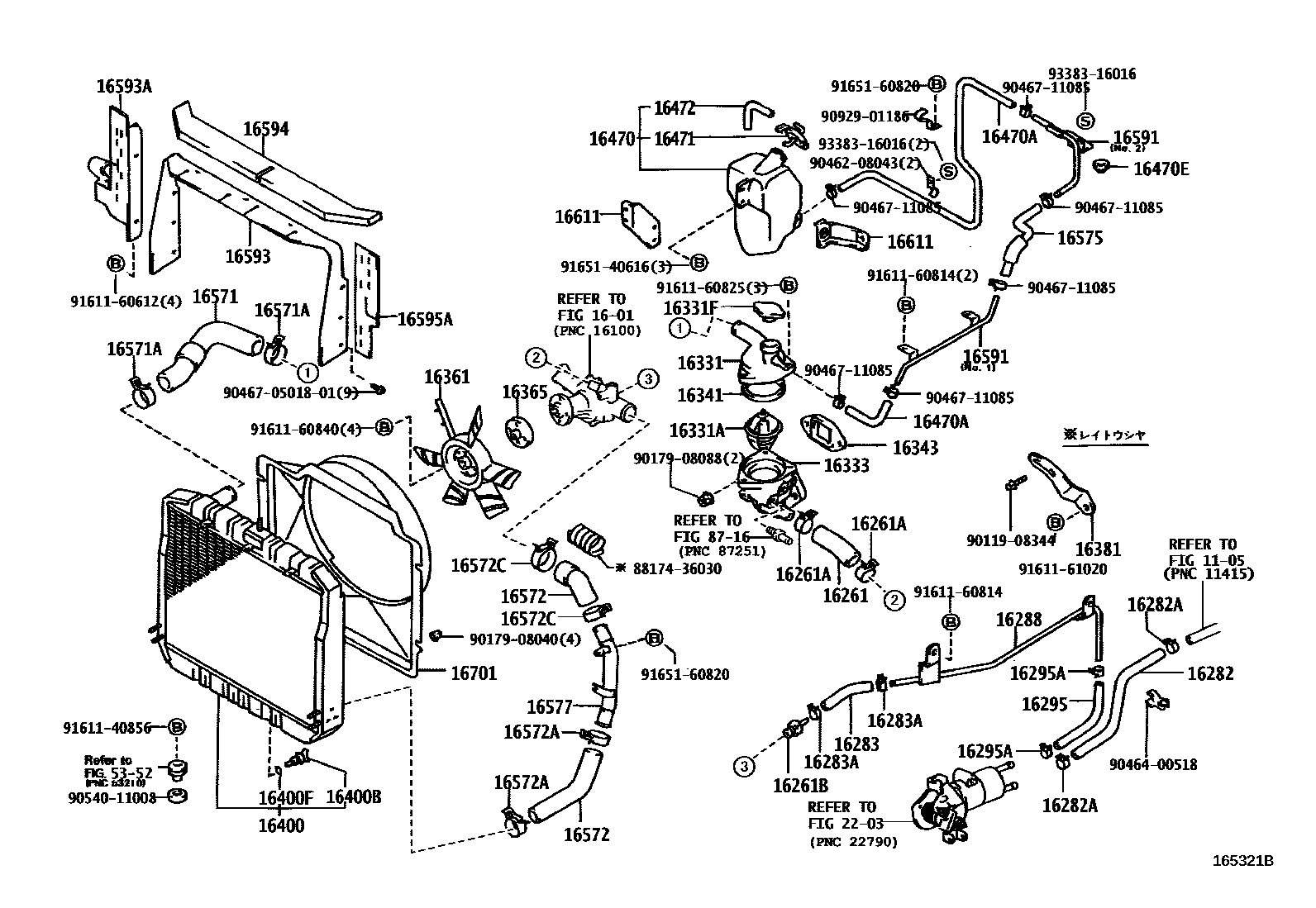

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1

1105

1601

16261HOSE, WATER BY-PASS

main16261-56012iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#198808-199505

main16261-75060i27LPG..BU68199311-199505

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-22004i27LPG..BU68199311-199505

sub90467-21010

main90467-28004iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#198808-199505

sub90467-28007

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-52028i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

16282HOSE, WATER BY-PASS, NO.5

main16282-56010i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

main16282-75020i27LPG..BU68199311-199505

16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

main90467-11009i27LPG..BU68199311-199505

sub96135-51100

main90467-15004i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

16283HOSE, WATER BY-PASS, NO.6

main16283-56010i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

main90467-15004i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

16288PIPE, WATER BY-PASS, NO.4

main16288-56010i11B,14B..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

main16288-58010i14BT..BU88,9#198910-199505

16295HOSE, WATER BY-PASS, NO.7

main16295-56010i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

16295ACLIP(FOR WATER BY-PASS HOSE NO.7)

main90467-15004i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

16331OUTLET, WATER

main16331-56020i14B..BU94..T4198808-199505

main16331-56040iB,11B,14B,3B..BU6#,70,83,84,87198808-199505

main16331-58020i13BT..BU85,90,95198808-198910

main16331-58040i14B..BU72,73,74198910-199505

main16331-58050i14BT..BU88,91,96198910-199008

main16331-58061i14BT..BU88,9#199008-199505

main16331-75020i27LPG..BU68199311-199505

16331ATHERMOSTAT

main90916-03077i14B..BU66,73..TW1198808-199505

sub90916-03102

main90916-03080i14B..BU73..03S;B,11B,13BT,14B#,3B..BU6#,70,72,74,78,8#,9#..CBU,IV3198808-199505

sub90916-03103

main90916-03101i27LPG..BU68199311-199505

sub90916-03120

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-71010i14BT..BU88,91,94,96;B,11B,13BT,14B,3B..BU6#,70,72,73,74,83,84,85,87,90,95198808-199505

sub16401-54750

16333HOUSING, WATER OUTLET

main16333-56070iB,11B,13BT,14B..BU6#,70,8#,9#198808-198904

sub16333-56071

sub92112-60835

main16333-56071iB,11B,13BT,14B..BU6#,70,8#,9#198904-198908

sub16333-56072

sub16343-56020

main16333-56072iB,11B,13BT,14B#,3B..BU6#,70,78,8#,9#198908-199505

sub16333-58050

main16333-58030i14B..BU72,74198910-198912

sub16333-56072

16341GASKET, WATER OUTLET

main16341-56030iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#198808-199505

main16341-75020i27LPG..BU68199311-199505

16343GASKET, WATER OUTLET HOUSING

main16343-56021iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#198908-199001

sub16343-56022

main16343-56022iB,11B,14B#,3B..BU6#,7#,8#,9#199001-199304

sub16343-56023

main16343-56023iB,11B,14B#,3B..BU6#,7#,8#,9#199304-199505

16361FAN

main16361-38010i14B..BU88,91,94,96198808-199505

main16361-41070i27LPG..BU68199311-199505

sub16361-41071

main16361-56030iB..BU60,70,83198808-199505

main16361-56040iB..BU70,83;B..BU60..175;B..BU60..ST..20T..IV3;B..BU60..TOY..20T..CBU;B..BU60..DYN..(T2,T3,T4)..CBU198808-199505

main16361-56070i14B..BU88..T3..5F..(20T,30T)..IV3199210-199309

main16361-56070i11B,13BT,14B..BU61,66,67,84,85,87,90,95198808-199505

16365SPACER, FAN

main16365-56021iB,3B..BU60,68,70,83198808-199505

16381BAR, FAN BELT ADJUSTING

main16381-56030i13BT..BU85,90,95198808-198910

main16381-56060iB,11B,14B#,3B..BU6#,70,78,83,84,87,88,91,94,96..CBU,IV3198808-199505

sub16381-58120

main16381-58040i14B..BU66..(T3,T4)..5F..WT..20T..IV3198808-199505

main16381-58040iB..BU60..WT..20T..IV3;14B..BU88..T3..5F..(20T,30T)..IV3198808-199505

main16381-58040i14B..BU66..IV4198808-199505

main16381-58070i14B..BU72,73,74..03S198910-199505

main16381-58080i14B..BU73..06S199005-199505

main16381-58080i14B..BU72..T4..IV3198910-199505

main16381-58080i14B..BU74..20T..IV3198910-199505

main16381-75030i27LPG..BU68199311-199505

16400RADIATOR ASSY

main16400-56180i14B..BU66,67,87..4FC198808-199112

main16400-56181i14B..BU66,67,87..4FC199112-199505

main16400-56190i3B..BU68198910-199505

main16400-56200i14B..BU72,73,74..CBU,IV3198910-199505

main16400-56210i14B..BU73..IV4199005-199505

main16400-58090iB,11B,14B..BU60,61,66,67,70,83,84,87..5F..(CBU,IV3)198808-199505

main16400-58132i14B..BU88..(T2,T3)..4FC198808-199112

main16400-58133i14B..BU88..(T2,T3)..4FC199112-199505

main16400-58143i14B..BU88,91,94,96..(T2,T3,TW1)..5F198808-199505

main16400-58202i13BT,14BT..BU85,88,90,91,95,96..T3..5F198808-199008

main16400-58203i14BT..BU88,91,96..T3..5F199008-199505

main16400-58231i14B..BU96..5F198904-198910

sub16400-58232

main16400-58231i14B..BU88,91..T4..5F198808-198910

sub16400-58232

main16400-58232i14B..BU78,88,91,94..T4..5F198910-199505

main16400-58261i13BT,14BT..BU95,96..5F..IV3198808-199008

main16400-58262i14BT..BU96..5F..IV3199008-199505

main16400-58280i14B..BU66..IV4198808-199505

main16400-58290i14B..BU88..4FC..30T198808-199112

main16400-58291i14B..BU96..4FC;14B..BU88..T4..4FC199112-199505

main16400-58340i14BT..BU96..4FC199001-199008

main16400-58341i14BT..BU96..4FC199008-199112

main16400-58342i14BT..BU96..4FC199112-199505

main16400-75120i27LPG..BU68199311-199505

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i14B..BU96;14BT..BU96..5F;13BT,14B#..BU78,85,88,90,91,94,95198808-199505

main16417-24200i14BT..BU96..4FC;14B,3B..BU68,72,73,74198910-199505

main16417-58090iB,11B,14B..BU60,61,66,67,70,83,84,87198808-199311

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051i14B..BU96;14BT..BU96..5F;B,11B,13BT,14B#..BU60,61,66,67,70,78,8#,90,91,94,95198808-199505

main16418-24200i14BT..BU96..4FC;14B,3B..BU68,72,73,74198910-199505

16470TANK ASSY, RADIATOR RESERVE

main16470-56111i14B..BU67,72,74;14B..BU87..TR..5F..03S;14B..BU66..DM2,DM3,DM5,T2,T3,T4198808-199309

main16470-56121iB,11B,14B,27LPG,3B..BU6#,72,73,74,83,84,87..03S198808-199505

main16470-56130iB,14B..BU60,66,70,73,87..HRF,SRF,TW1,TW2,TW4198808-199505

main16470-58010i14BT..BU96;14B..BU96..5F;13BT,14B#..BU78,85,88,90,91,94,95..03S198808-199309

main16470-58020i13BT,14B#..BU78,85,88,9#198808-199505

main16470-58030i14B..BU88..T3..30T..IV3;14BT..BU88,91,96..5F..IV3;14B..BU88..5F..03S..20T..IV3198808-199505

main16470-58030i14B..BU88..T4..30T..IV3199109-199505

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12038iB,11B,14B,3B..BU6#,83,84,87..03S198808-199505

main90445-12078i14B..BU72,73,74..03S198910-199505

main90445-12143i14BT..BU94;14B..BU78,88,91,94,96198808-199505

main90445-12146i13BT,14BT..BU85,88,90,91,95,96198808-199505

main90445-12147iB..BU70..03S,06S198808-199505

main90445-12192i14B..BU73..06S199005-199505

main90447-12067i27LPG..BU68199311-199505

2WAY TO RESERVE TANK

main90447-12077i14B..BU88..T3..30T..IV3;14BT..BU88,91,96..5F..IV3;14B..BU88..5F..03S..20T..IV3198808-199505

main90447-12087iB,14B..BU60,66,70,87..HRF,SRF,TW1,TW2,TW4198808-199505

main90910-05174iB,11B,14B,3B..BU6#,70,72,73,74,83,84,87198808-199505

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-16015iB,14B..BU60,66,70,87..HRF,SRF,TW1,TW2,TW4198808-199505

16471CAP SUB-ASSY, RESERVE TANK

main16405-56052iB,11B,14B,27LPG,3B..BU6#,72,73,74,83,84,87..03S198808-199505

main16405-56060iB,14B..BU60,66,70,73,87..HRF,SRF,TW1,TW2,TW4198808-199505

main16405-56070i13BT,14B#..BU78,85,88,9#198808-199505

main16405-58030i14B..BU88..T3..30T..IV3;14BT..BU88,91,96..5F..IV3;14B..BU88..5F..03S..20T..IV3198808-199505

main16405-58030i14B..BU88..T4..30T..IV3199109-199505

16472HOSE, BREATHER

main16472-56130iB,14B..BU60,66,70,73,87..HRF,SRF,TW1,TW2,TW4198808-199505

main16472-58010i13BT,14B#..BU78,85,88,9#198808-199505

main85338-56110iB,11B,14B,27LPG,3B..BU6#,72,73,74,83,84,87..03S198808-199505

main90445-12078i13BT,14BT..BU85,88,90,91,96..IV3;14B..BU88..(T2,T3)..5F..(20T,30T)..IV3198808-199505

main90445-12078i14B..BU88..T4..30T..IV3199109-199505

16571HOSE, RADIATOR, INLET

main16571-56060iB,11B,14B,3B..BU6#,70,83,84,87198808-199505

main16571-56070i14B..BU72,73,74198910-199505

main16571-58030i13BT,14B#..BU78,85,88,9#198808-199505

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-42001iB,11B,13BT,14B#,3B..BU6#,70,78,8#,9#198808-199505

sub90467-41002

main96111-10490i13BT..BU85,90..IV3198808-199001

16572HOSE, RADIATOR, OUTLET

main16572-56090iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96198808-199111

WATER PUMP SIDE

sub16572-56091

sub96111-10490

main16572-56091i14B..BU72,73,74199111-199505

WATER PUMP SIDE

main16572-56100i14B..BU72,73,74198910-199505

main16572-58031i13BT..BU85,90,95198808-198910

main16572-58061i13BT..BU85,90..IV3198808-199001

main16573-56050iB,11B,14B,3B..BU6#,70,83,84,87198808-199505

sub16573-58070

main16573-58020i14B#..BU78,88,91,94,96198808-199505

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10510iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96198808-199505

main96111-10510i13BT..BU85,90..IV3198808-199001

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10490iB,11B,14B#,3B..BU6#,7#,8#,9#199111-199505

PIPE SIDE

main96111-10510iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96198808-199111

PIPE SIDE

main96111-10510i13BT..BU85,90..IV3198808-199001

main96111-10570i13BT..BU85,90,95198808-199505

WATER PUMP SIDE

main96111-10570i13BT..BU85,90..IV3198808-199001

16575HOSE, RADIATOR, NO.5

main16565-56010i14B..BU73..06S199005-199505

main16575-56010iB,11B,14B,3B..BU6#,83,84,87..03S198808-199505

main16575-56020iB,14B..BU60,66,70,87..HRF,SRF,TW1,TW2,TW4198808-199505

main90445-12239i14B..BU72,73,74..03S198910-199505

16577PIPE, RADIATOR, NO.7

main16577-56050iB,11B,14B#,3B..BU6#,70,78,83,84,87,88,91,94,96198808-199505

main16577-56060i14B..BU72,73,74198910-199505

main16577-58010i13BT..BU85,90..IV3198808-199001

main16577-75010i27LPG..BU68199311-199505

16591PIPE, RADIATOR

main16591-56020iB,11B,14B..BU60,61,66,83,84,87..DM5,T4199302-199505

NO.2

main16591-56020iB,11B,14B..BU60,61,66,83,84,87..DM5,T4198808-199302

main16591-56040i14B..BU87..V;B,11B,14B,3B..BU6#,84,87..DM1,DM2,DM3,DM4,T1,T2,T3198808-199302

main16591-56040i14B..BU87..V;B,11B,14B,3B..BU6#,84,87..DM1,DM2,DM3,DM4,T1,T2,T3199302-199505

NO.2

main16591-56050iB..BU70..03S,06S198808-199505

main16591-56060iB,14B..BU60,66,70,87..HRF,SRF,TW1,TW2,TW4198808-199302

main16591-56060iB,14B..BU60,66,70,87..HRF,SRF,TW1,TW2,TW4199302-199505

NO.2

main16591-56070iB,11B,14B,3B..BU6#,70,72,73,74,83,84,87199302-199505

NO.1

main16591-56070iB,11B,14B,3B..BU6#,70,72,73,74,83,84,87198808-199302

main16591-56080i14B..BU72,74198910-199109

sub16591-56081

main16591-56081i14B..BU72,73,74..03S199109-199302

main16591-56081i14B..BU72,73,74..03S199302-199505

NO.2

main16591-56100i14B..BU73..06S199005-199302

main16591-56100i14B..BU73..06S199302-199505

NO.2

16593GUIDE, RADIATOR AIR, NO.1

main16593-56030iB,11B,14B,27LPG,3B..BU6#,70,72,73,74,83,84,87198808-199505

main16593-58050i13BT,14B#..BU78,85,88,9#198808-199505

16593AGUIDE, RADIATOR AIR, NO.1 RH

main16593-56040iB,11B,14B,3B..BU6#,70,83,84,87198808-199505

main16593-58060i13BT,14B#..BU78,85,88,9#198808-199505

16594GUIDE, RADIATOR AIR, NO.2

main16594-56020iB,11B,14B,3B..BU6#,70,83,84,87198808-199505

main16594-58030i13BT,14B#..BU78,85,88,9#198808-199505

16595AGUIDE, RADIATOR AIR, NO.1 LH

main16595-56020iB,11B,14B,3B..BU6#,70,83,84,87198808-199505

main16595-58040i13BT,14B#..BU78,85,88,9#198808-199505

16611BRACKET, RADIATOR RESERVE TANK

main16611-56050iB,11B,14B,27LPG,3B..BU6#,72,73,74,83,84,87..03S198808-199505

main16611-56060iB..BU70..03S,06S198808-199505

main16611-56070iB..BU70..03S,06S198808-199505

main16611-56080iB,14B..BU60,66,70,87..HRF,SRF,TW1,TW2,TW4198808-199505

main16611-56090iB,14B..BU60,66,70,87..HRF,SRF,TW1,TW2,TW4198808-199505

main16611-56100i14B..BU73..06S199005-199505

main16611-58020i13BT..BU85,90..IV3198808-199001

16701SHROUD SUB-ASSY, FAN

main16701-56281i3B..BU68198910-199505

main16701-56300iB..BU60,70,83198808-199505

main16701-56310iB..BU60..WT..20T..IV3198808-199309

main16701-56310iB..BU60..WT..20T..IV3199309-199505

main16701-56310iB..BU70,83;B..BU60..T3..ST..IV3;B..BU60..T1,TW1,TW2,TW4;B..BU60..(T2,T3,T4)..CBU198808-199505

main16701-56321i14B..BU66,67,87..4FC198808-199505

main16701-56330i14B..BU72,73,74198910-199505

main16701-56340i3B..BU68198910-199505

main16701-58030i11B,14B..BU61,66,67,84,87..5F198808-199505

main16701-58040i14B..BU88,91,94,96..T2,T3,TW1198808-199505

main16701-58050i13BT,14BT..BU85,88,90,91,95,96..T3..5F198808-199008

sub16701-58051

main16701-58050i13BT,14BT..BU85,88,90,91,95,96..T3..5F198808-199008

sub16701-58051

main16701-58051i14B..BU88..T3..5F..(20T,30T)..IV3199008-199102

main16701-58051i14B..BU88..T2..5F..IV3199008-199102

main16701-58052i14B..BU88..T3..5F..(20T,30T)..IV3199102-199505

main16701-58052i14B..BU88..T3..5F..(20T,30T)..IV3199102-199210

main16701-58052i14BT..BU88,91,96..T3..5F199102-199505

main16701-58070i13BT..BU85,90..IV3198808-199001

main16701-58080i14B..BU96..4FC;14B..BU78,88,91,94..T4198904-199505

main16701-58080i14B..BU88,91..T4198808-198904

main16701-58090i14BT..BU96..4FC;13BT,14BT..BU90,91..T4198808-199008

sub16701-58091

main16701-58091i14BT..BU96..5F..IV3199008-199102

main16701-58091i14B..BU88..TOY..T4..5F..30T199008-199102

main16701-58092i14B..BU88..TOY..T4..5F..30T..CBU199210-199505

main16701-58092i14BT..BU96..4FC;14BT..BU91,94..T4199102-199505

main16701-58092i14B..BU88..4FC..30T..IV3;14B..BU88..DYN..T4..5F..30T..IV3199102-199505

main16701-58120i13BT..BU90..T4..IV3198810-199001

main16701-75030i27LPG..BU68199311-199505

2203

5352

8716

8817436030

main88174-36030

9011908344

main90119-08344

9017908040

main90179-08040

9017908088

main90179-08088

9046208043

main90462-08043

9046400518

main90464-00518

904670501801

main90467-0501801

9046711085

main90467-11085

9054011008

main90540-11008

9092901186

main90929-01186

9161140856

main91611-40856

9161160612

main91611-60612

9161160814

main91611-60814

9161160825

main91611-60825

9161160840

main91611-60840

9161161020

main91611-61020

9165140616

main91651-40616

9165160820

main91651-60820

9338316016

main93383-16016

65 parts on this diagram · 9 diagrams in section
